| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Polish: |
High Polish |
| Warranty: |
5,000,000 Times |
| Application: |
Car |
Product Description

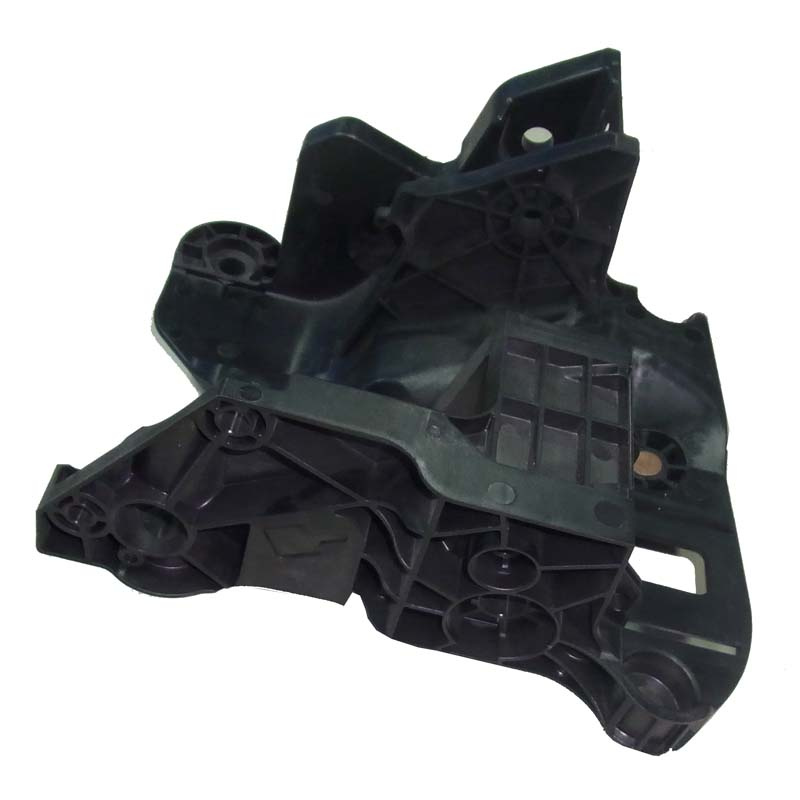

Plastic Injection Auto Product Precision Mould
We are instrumental in offering a comprehensive range of premium quality Automotive Components Moulds to the patrons. Offered automobile components molds are designed & developed by our experienced professionals using premium quality raw material and advance technology. These molds are available with us in various sizes, grades, dimensions and other specifications to meet the exact requirement of clients.
Mould Base Standard: LKM, Hasco, DME
Mould Steel: H13, 1.2344, 8407, S136, DC11, DC53
Plastic Raw Material: PP, ABS, PE, PA6, PA66, PA66GF30, TPE, TPU, PPGF30, PBT
Initial Mould tryout: 30-45 days
Package: Wooden Box
Main Softwares: Auto CAD, UG, Catia, Solid-works, etc
Mold Making Instructions:
Customer RFQ--->Tooling Offer--->Price Approval--->Customer order
2D/3D Mold design confirmation--->Tooling Schedule--->Mold manufacturing
--->Mold Tryout--->Sample Delivery--->Improvement Suggestions--->Mold Modification
--->Mold Approval--->Pilot Runs--->Mold Delivery
|
Haifu Mould Main Technique Parameters : |
|
Base |
LKM, Hasco, DME or by requested |
|
Cavity Material |
DC11, DC53 , 718H, P20, NAK80, 2316 |
|
Product Material |
PP, ABS, PE, PA6, PA66, PA66GF30, TPE, TPU, PPGF30, PBT |
|
Structure |
Double color injection mould, Solid Mould, Insert Mould, Mould with Slide, Mould with Lifter |
|
Runner System |
Hot runner / Cold runner |
|
Injection System |
Direct Gate, Side Gate, Point Gate, Sub Gate, etc. |
|
Ejector System |
Ejector Pin |
|
Mould Size |
Up to 2 meters and 15 Ton |
|
No. Of Cavities |
Single cavity, multi cavity by requested |
|
Finish |
Corrosion word, Mirror finish, Brushed |
|
Longevity |
0.5-1 million shots |
|
Mould standard |
HASCO, DME, MISUMI, or by requested etc. |
|
Software |
Auto CAD, UG, Catia, Solid-works, etc |
|
Tolerance |
± 0.02mm |
|
Design Time |
3-7days |
|
Sample Time |
3-7days |
|
Main Technique |
Milling, Grinding, EDM, Wire-cutting, Engraving, CNC, and 2.5 Dimension test, etc. |
|
Production time |
2- 7 weeks, depends on mould structure |
|
Initial Mould tryout |
30-45 days |
|
Packing |
Wooden box or by request |
|
Remarks: Special requirements of different models can be customized. |
We are capable of from small to large plastic mould from design to production with Quality, Timely Delivery and Cost Efficiency being the three important foundation pillars of the company. With over 14 years experiences in this area. Our key strengths are in manufacturing of Plastic injection moulds, Zinc alloy & aluminum alloy die casting moulds.
Our Injection Molds are designed and manufactured in Automotive Parts, Office Appliances, Electronics Appliance, Medical products, Telecommunication, Household Appliance and Industrial Products etc.
Our in house facilities include:
*Product Development, Mould Design & Tool Making
*Injection Moulding
*Production, Assembly and Packaging
Win-win, Honesty, Teamwork, is our company culture. We always do business on the basis of equality, mutual benefits and long time cooperative relationship. We sincerely look forward to becoming a good partner with you. We will make our most efforts to meet your demands based on competitive price, high efficiency and good service.
Manufacturing injection moulds from us! !
1, Increases your competetive advantage
2, On time mold delivery
3, Maximises productivity
We can design mould bases and standard components according to customer's requirement, such as LKM, Hasco, DME standard.
With a variety of offerings to choose from, we're sure you'll be happy working with us. Look around our website and if you have any comments or questions, please feel free to contact us.
