| Prod Model: |
SDFG029 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
1/2"-60" |
| Standard: |
En Uni Awwa as ISO |
| Type: |
Welding Flange |
| Material: |
Stainless Steel |
| Manufacturing Way: |
Forging |

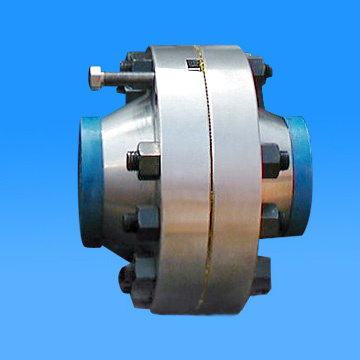

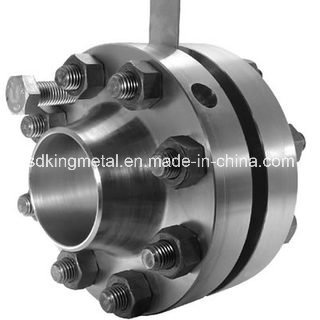

Product Description
Assortments and specifications:
Class A: ASTM A105 ANSI B16.5 forged carbon steel flanges at working
Pressure of 150Lbs 300lbs and 600Lbs
Type: Welding neck
Size: 1/2--60
Properties: Forged steel flange is made of high quality carbon steel with
Skillful workmanship possessing splendid strengt and toughness
It is widely uesd in pipeline works of petrochemical industry,
Chemical industry, chemical fertilizer equipments, etc.
Packing: In wooden cases or poly wooden pallets
Flanges Standard:
1. ANSI B16.5: 150LB, 300LB, 600LB, 900LB, 1500LB, 2500LB, MSS SP44, AWWA C207
2. DIN 2573 PN6, DIN 2576 PN10, DIN2502 PN16, DIN2503 P25-40, DIN2566 PN16
DIN2631-2635, DIN86029, 86030
3. JIS SS400 or SF400 5K, 10K, 16K, 20K, 30K
4. UNI 2276, 2277, 2278, 6084, 6089, 6090, 2544, 2282, 6091-9093
5. EN 1092 PN6, PN10, PN16, PN25, PB40, TYPE1, TYPE2, TYPE5, TYPE12, TYPE13
6. BS4504 PN10, PN16, PN25, PN40, T/D, T/E, T/F
7. AS 2129 T/D, T/H, T/E
Material: ASTM A36, A105 A182 F1/F2/F11/F22, A182 F304/304L, 316/316L A350 LF1/LF2
Certificate: ISO9001, API, PED
| Nominal pipe size | Outside diam | O. D. Of raised face | Diam at base of hub | Thickness | Bore | Length thru hub | Diam of hub at bevel | Radius of fillet | Thread length |
|
| D | G | X | T | B1 | B2 | T2 | A | R | Q |
| 1/2 | 89 | 35.1 | 30.2 | 11.2 | 15.7 | 22.4 | 15.7 | 21.3 | 3 | 15.7 |
| 3/4 | 99 | 42.9 | 38.1 | 12.7 | 20.8 | 27.7 | 15.7 | 26.7 | 3 | 15.7 |
| 1 | 108 | 50.8 | 49.3 | 14.2 | 26.7 | 34.5 | 17.5 | 33.5 | 3 | 17.5 |
| 1 1/4 | 117 | 63.5 | 58.7 | 15.7 | 35.1 | 43.2 | 20.6 | 42.2 | 4.8 | 20.6 |
| 1 1/2 | 127 | 73.2 | 65 | 17.5 | 40.9 | 49.5 | 22.4 | 48.3 | 6.4 | 22.4 |
| 2 | 152 | 91.9 | 77.7 | 19.1 | 52.6 | 62 | 25.4 | 60.5 | 7.9 | 25.4 |
| 2 1/2 | 178 | 104.6 | 90.4 | 22.4 | 62.7 | 74.7 | 28.4 | 73.2 | 7.9 | 28.4 |
| 3 | 191 | 127 | 108 | 23.9 | 78 | 90.7 | 30.2 | 88.9 | 9.7 | 30.2 |
| 3 1/2 | 216 | 139.7 | 122.2 | 23.9 | 90.2 | 103.4 | 31.8 | 101.6 | 9.7 | 31.8 |
| 4 | 229 | 157.2 | 134.9 | 23.9 | 102.47 | 116.1 | 33.3 | 114.3 | 11.2 | 33.3 |
| 5 | 254 | 185.7 | 163.6 | 23.9 | 128.3 | 143.8 | 36.6 | 141.2 | 11.2 | 36.6 |
| 6 | 279 | 215.9 | 192 | 25.4 | 154.2 | 170.7 | 39.6 | 168.4 | 12.7 | 39.6 |
| 8 | 343 | 269.7 | 246.1 | 28.4 | 202.7 | 221.5 | 44.5 | 219.2 | 12.7 | 44.5 |
| 10 | 406 | 323.9 | 304.8 | 30.2 | 254.5 | 276.4 | 49.3 | 273.1 | 12.7 | 49.3 |
| 12 | 483 | 381 | 365.3 | 31.8 | 304.8 | 327.2 | 55.6 | 323.9 | 12.7 | 55.6 |
| 14 | 533 | 415.8 | 400.1 | 35.1 | 336.6 | 359.2 | 57.2 | 355.6 | 12.7 | 57.2 |
| 16 | 597 | 469.9 | 457.2 | 36.6 | 387.4 | 410.5 | 63.5 | 406.4 | 12.7 | 63.5 |
| 18 | 635 | 533.4 | 505 | 39.6 | 438.2 | 461.8 | 68.3 | 457.2 | 12.7 | 68.3 |
| 20 | 699 | 584.2 | 558.8 | 42.9 | 489 | 513.1 | 73.2 | 508 | 12.7 | 73.2 |
| 24 | 813 | 692.2 | 663.4 | 47.8 | 590.6 | 616 | 82.6 | 609.6 | 12.7 | 82.6 |
| Nominal pipe size | Depth of socket | Drilling | Bolting | Approximate weight |
| Bolt clrcle diam | Number of holes | Diam of holes | Diam of bolts (inch) | Machine bolt length | Stud bolt length |
| Y | Raised face | Raised face | Ring joint | Kg | IP |
| 1/2 | 9.7 | 60.5 | 4 | 15.7 | 1/2 | 50.8 | 57.2 | - | 0.47 | 1 |
| 3/4 | 11.2 | 69.9 | 4 | 15.7 | 1/2 | 50.8 | 63.5 | - | 0.76 | 1.3 |
| 1 | 12.7 | 79.2 | 4 | 15.7 | 1/2 | 57.2 | 63.5 | 76.2 | 0.87 | 1.9 |
| 1.25 | 14.2 | 88.9 | 4 | 15.7 | 1/2 | 57.2 | 69.9 | 82.6 | 1.43 | 2.4 |
| 1.5 | 15.7 | 98.6 | 4 | 15.7 | 1/2 | 63.5 | 69.9 | 82.6 | 1.45 | 3.2 |
| 2 | 17.5 | 120.7 | 4 | 19.1 | 5/8 | 69.9 | 82.6 | 95.3 | 2.33 | 5 |
| 2.5 | 19.1 | 139.7 | 4 | 19.1 | 5/8 | 76.2 | 88.9 | 101.6 | 3.55 | 7.8 |
| 3 | 20.6 | 152.4 | 4 | 19.1 | 5/8 | 76.2 | 88.9 | 101.6 | 4.15 | 8.9 |
| 3.5 | 22.4 | 177.8 | 8 | 19.1 | 5/8 | 76.2 | 88.9 | 101.6 | 5 | 11 |
| 4 | 23.9 | 190.5 | 8 | 19.1 | 5/8 | 76.2 | 88.9 | 101.6 | 5.99 | 13.2 |
| 5 | 23.9 | 215.9 | 8 | 22.4 | 3/4 | 82.6 | 95.3 | 108 | 6.96 | 14.7 |
| 6 | 26.9 | 241.3 | 8 | 22.4 | 3/4 | 82.6 | 101.6 | 114.3 | 8.41 | 17.6 |
| 8 | 31.8 | 298.5 | 8 | 22.4 | 3/4 | 88.9 | 108 | 120.7 | 13.93 | 29.3 |
| 10 | 33.3 | 362 | 12 | 25.4 | 7/8 | 101.6 | 114.3 | 127 | 19.5 | 43 |
| 12 | 39.6 | 431.8 | 12 | 25.4 | 7/8 | 101.6 | 120.7 | 133.4 | 29.03 | 64 |
| 14 | 41.4 | 476.3 | 12 | 28.4 | 1 | 114.3 | 133.4 | 146.1 | 38.56 | 85 |
| 16 | 44.5 | 539.8 | 16 | 28.4 | 1 | 114.6 | 133.4 | 146.1 | 47.32 | 98 |
| 18 | 49.3 | 577.9 | 16 | 31.8 | 1 1/8 | 127 | 146.1 | 158.8 | 58.72 | 120 |
| 20 | 57.1 | 635 | 20 | 31.8 | 1 1/8 | 139.7 | 158.8 | 171.5 | 77.81 | 155 |
| 24 | 63.5 | 749.3 | 20 | 35.1 | 1 1/4 | 152.43 | 171.5 | 184.2 | 100.75 | 210 |
