| Prod Model: |
Poclain MS83 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Series: |
Hms83 |
| Brand: |
Helm Tower |
| Color: |
Orange, Yellow, Black, Blue, Gray |
| Performance: |
Large Torque with Low Speed |
| Place Of Original: |
China Mainland |
| Type: |
Hydraulic Motor |
Product Description
Poclain MS83 spare parts.
These are the spare parts MS83 series Poclain motors, and alll of them could be best replacement of the original Poclain MS83 motors.

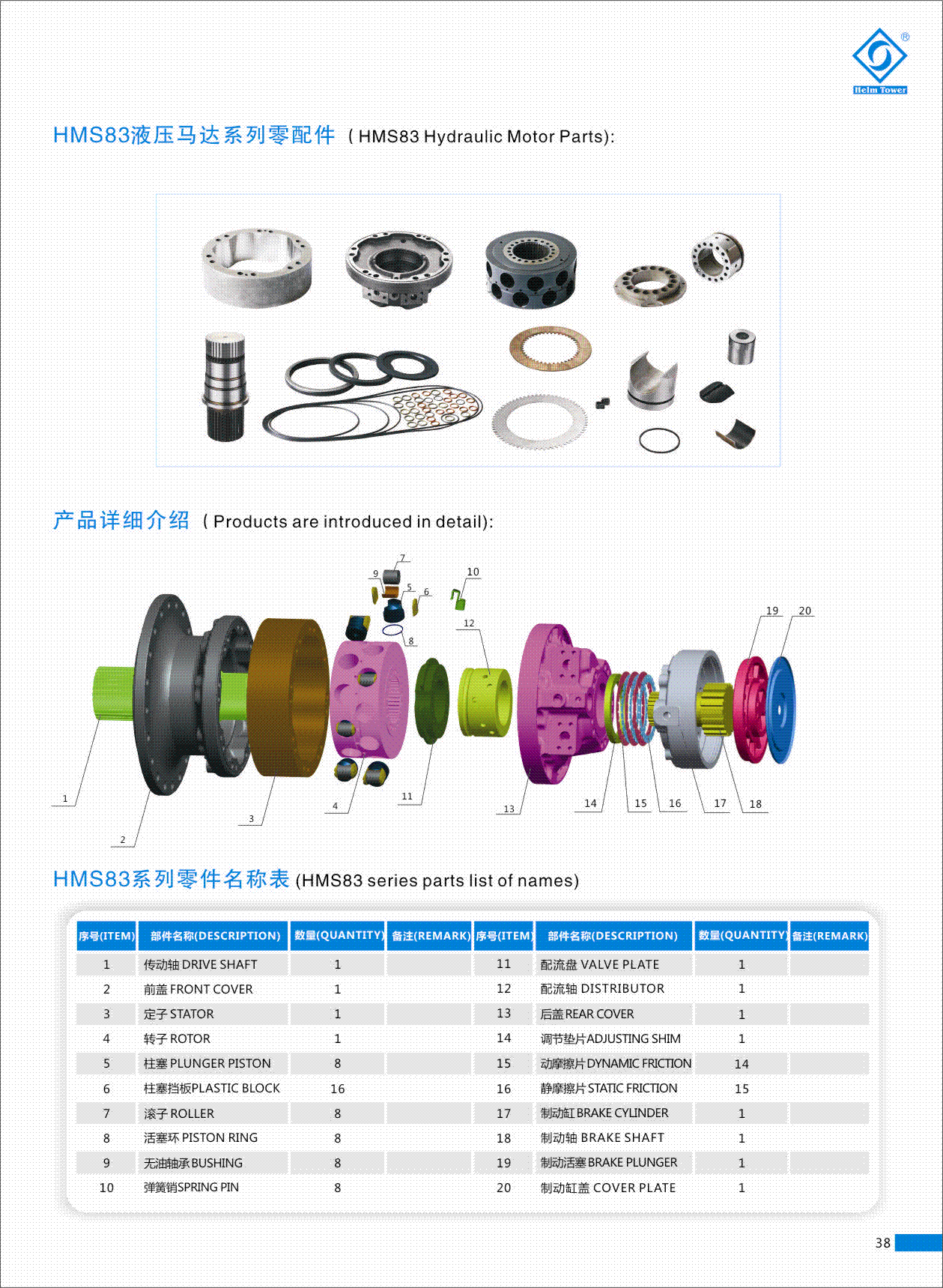

Include drive shaft, front cover, stator, rotor, plunger piston, roller, distributor, rear cover, dynamic friction, static friction, checking cylinder, break plunger, cover plate break shaft etc.
Quick Details
Type: Hydraulic Motors
Model Number: MS83
Brand Name: Helm Tower
Place of Origin: Zhejiang, China (Mainland)
Packaging & Delivery
Packaging Details: | standard exporting package. |
|---|
| Delivery Detail: | within 30 days after payment. |
|---|
Specifications
MS series motors is designed in control modules, can combine freely.
Our MS series Motors are advanced and analog of Poclain
MS83 Low speed High torque Hydraulic motor
Radial piston type
Adopt Imported Bearing and Oil Seal
MS83 Low speed High torque Hydraulic motor
Radial piston type
Adopt Imported Bearing and Oil Seal
Modular design, High efficiency, High pressure and smooth running even at very low speeds
Permissible Radial and Axial load, Motor with multi-disc brake, Motor emission control
HMS83 Applications:
Engineering Machinery:Shield Machine, Bucket Wheel Machine,
Oil Drilling Equipment,Forging Manipulators
Mining Machinery: Heavy Duty Handling Car, Coal Mine Drill
Marine Machinery: Marine Deck Crane, Gantry Crane Equipment
Type |
MS83-8 |
MS83-9 |
MS83-0 |
MS83-1 |
MS83-2 |
Displacement(ml/r) |
Full |
Semi |
Full |
Semi |
Full |
Semi |
Full |
Semi |
Full |
Semi |
6679 |
3339 |
|
|
8328 |
4164 |
|
|
10019 |
5009 |
Max power(kw) |
176 |
120 |
|
|
176 |
120 |
|
|
176 |
120 |
Pressure discrepancy 10MPa Torque
(N. m) |
9982 |
4890 |
|
|
12439 |
6099 |
|
|
14974 |
7336 |
Rated torque(N. m) |
24956 |
|
31098 |
|
37436 |
Rated pressure(MPa) |
25 |
|
25 |
|
25 |
Max pressure(MPa) |
40 |
|
40 |
|
35 |
Rated speed(r/min) |
35 |
|
35 |
|
32 |
Speed range(r/min) |
0-80 |
0-80 |
0-80 |
|
0-75 |
