| Prod Model: |
SF-20/SF-25/SF-30/SF-35/SF-40/SF-45 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model/Size: |
Sf-30 12"(300mm) |
| Motor: |
120X46mm Stator, Pure Copper Winding |
| Motor Case: |
Aluminum Not Plastic |
| Guard: |
Safety Density Guard |
| Blade: |
Aluminum Blades Not Plastic |
| Handle: |
with Safety Insulation UL, CE, CB Approval Switch |
| Pressure: |
345PA |
| Base: |
Longer, 90degree Direction Adjustable |
| Power Cord: |
Outside 4m Length 3cx0.75 VDE Wire with Plug |
| Color: |
Yellow/Red/Green/Black or Other You Like |
| Electric Current Type: |
AC |
| Mounting: |
Free Standing |
| Certification: |
SAA |
| Blade Material: |
Aluminum |
Product Description

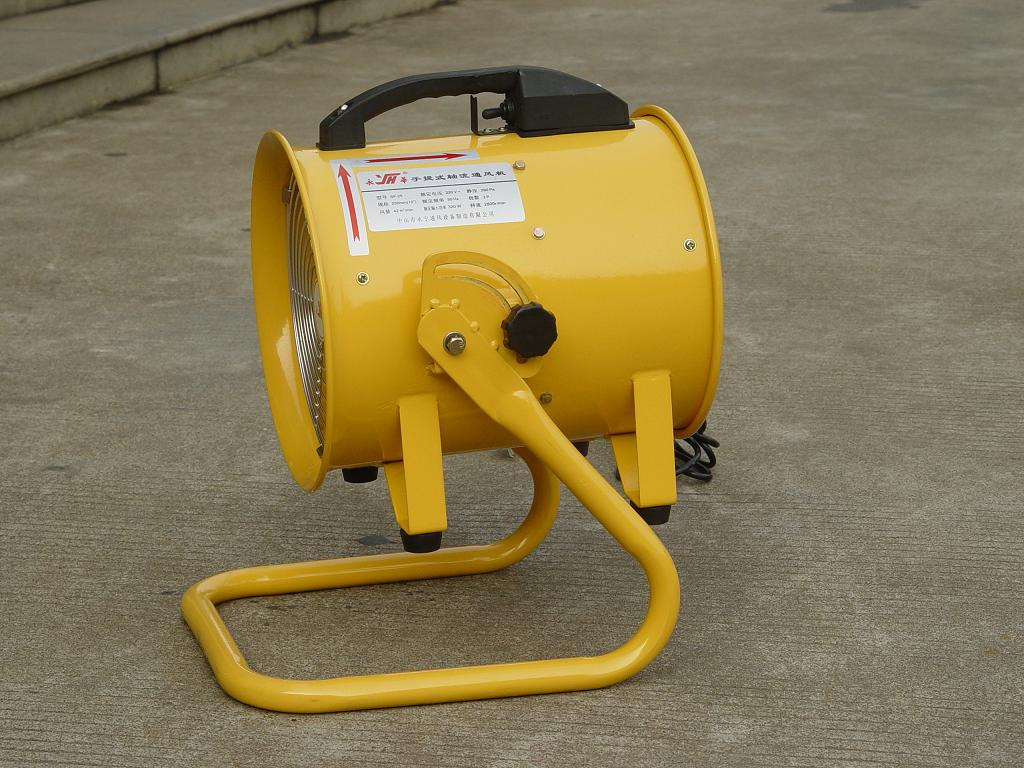

Our fans cover Portablel fan, Ventialting fan, stand fan, wall fan, exhaust fan, axial fan and centrifugal fans. most of the fan have CE/GS/SAA approvals. here is the industrial fan details for your reference:Portable axial blower have 7 sizes
8"(200mm), 10"(250mm), 12"(300mm), 14"(350mm), 16"(400mm), 18"(450mm), 20"(500mm)Aluminium Casting blade, metal frame
Portable handle

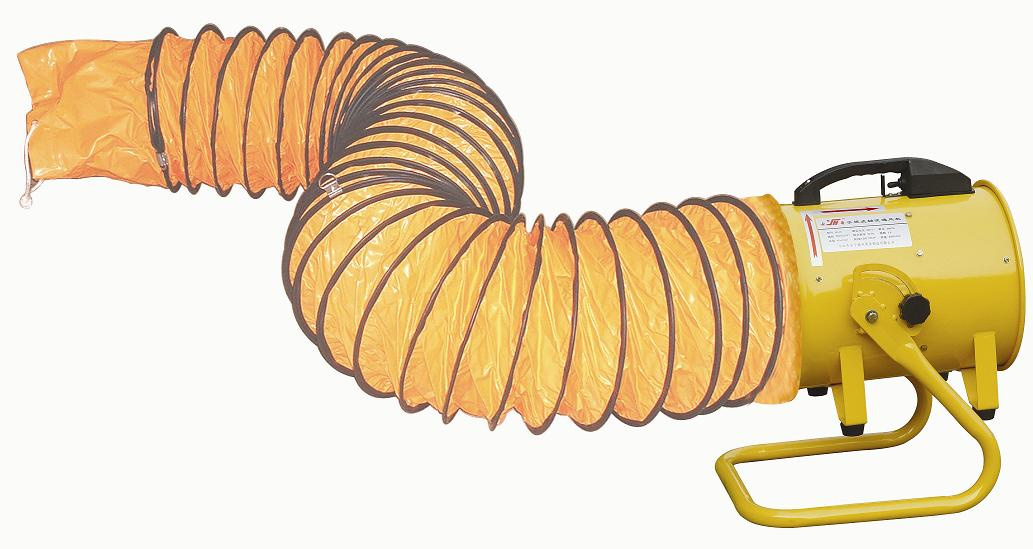

A PVC air duct can be fit

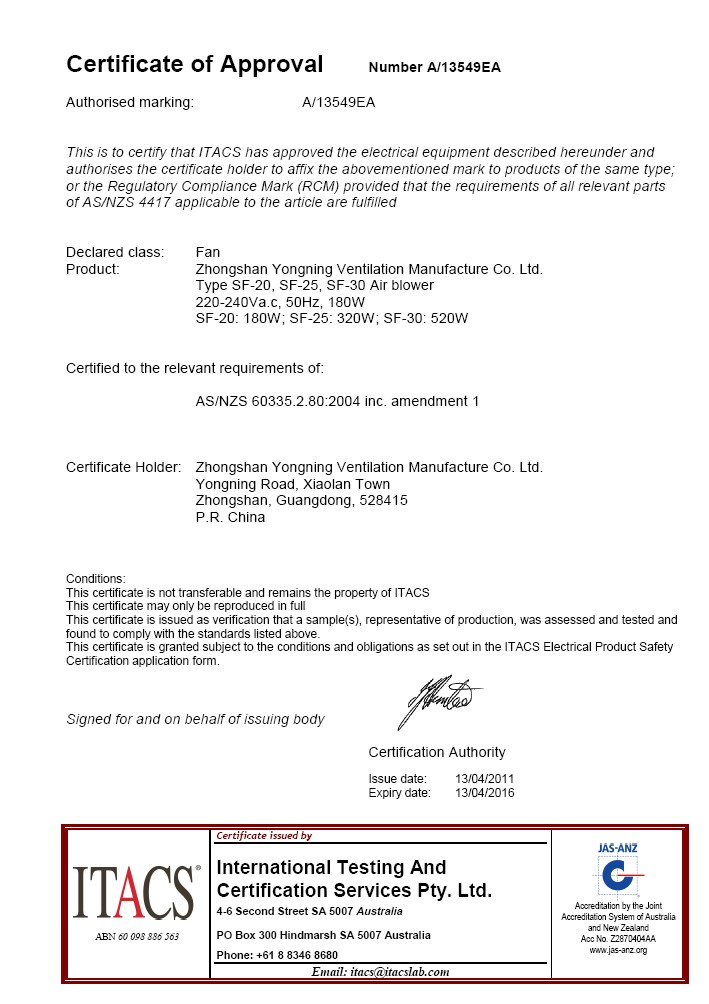

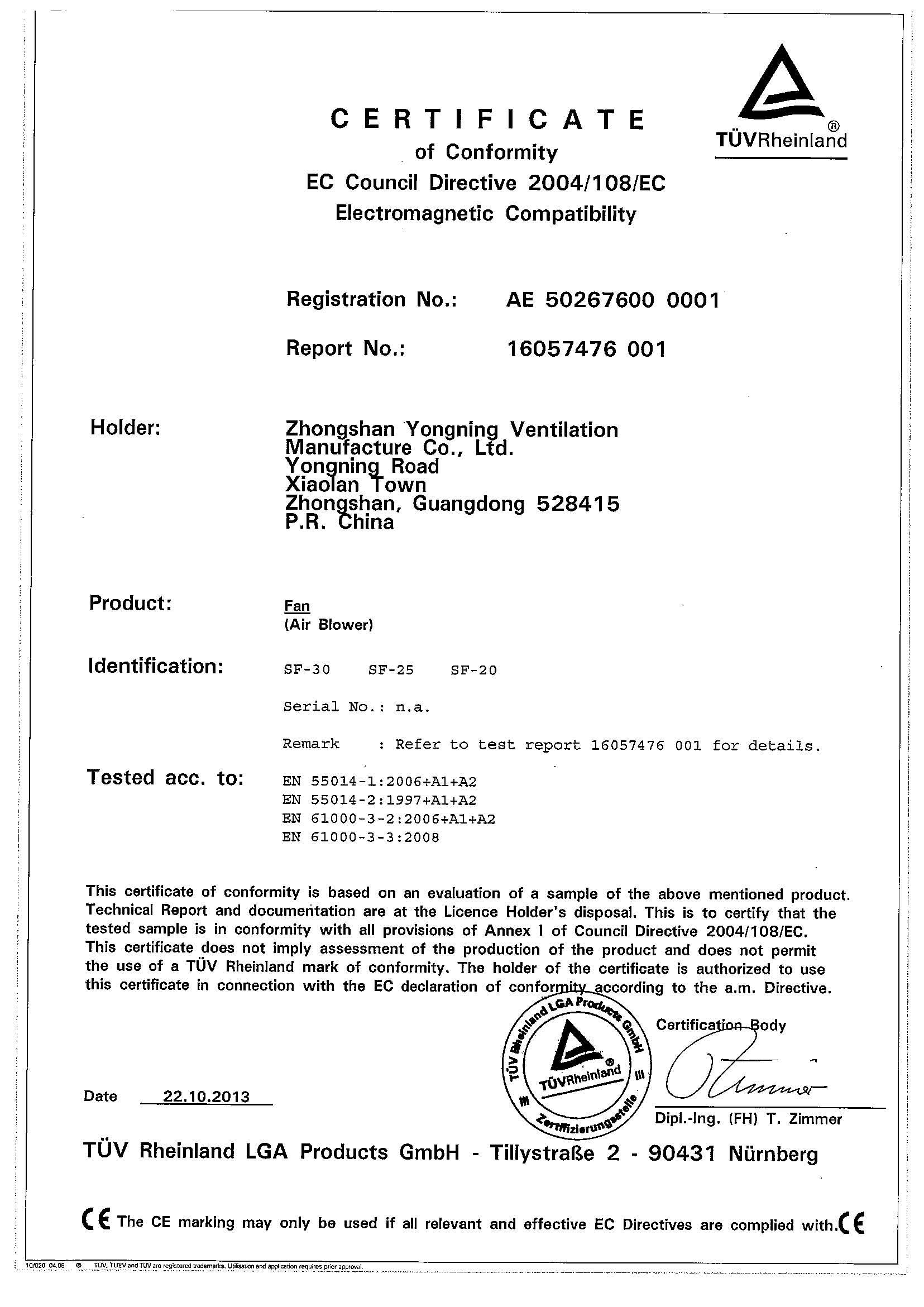

CE, SAA approvals
1.Blade of die-cast aluminum alloy and power coating steel body
2.Die-cast aluminum alloy fan blade, cable length:3m
3.Motor:Super speed and large airflow
4 .powerful 2800rpm, min 180W/max 1700W
5 .with up-down angle adjustable support
6. 2 in 1 blows or extracts
7. use as a blower for drying paint
8. suitable for ventilating workshops and confined areas
9. air delivery: 1500~9000m3/h
10. extracts fumes, odours, dust, stale and hot air
11 .heavy duty safety grille and anti vibration mounts
12. portable with robust carry handle and on/of safety switch
Quality construction for longevity strength
| Model | Spec | Volt | Cycle | Power | Speed | Capacity | Measure | Sets / | Qty/20'GP |
| mm | V | Hz | W | r/min | m3/h | cm | Carton | pcs |
| SF-20 | 200 | 220 | 50 | 180 | 2800 | 1500 | 36×26×32 | 1 | 967 |
| SF-25 | 250 | 220 | 50 | 320 | 2800 | 2520 | 37×30×37 | 1 | 706 |
| SF-30 | 300 | 220 | 50 | 520 | 2800 | 3600 | 44×35×44 | 1 | 438 |
| SF-35 | 350 | 220 | 50 | 750 | 2800 | 4920 | 45×44×47 | 1 | 315 |
| SF-40 | 400 | 220 | 50 | 1100 | 2800 | 5760 | 52×49×51 | 1 | 221 |
| SF-45 | 450 | 220 | 50 | 1700 | 2800 | 7500 | 56×54×51 | 1 | 171 |
| SF-50 | 500 | 220 | 50 | 750 | 1400 | 9000 | 59×58×55 | 1 | 154 |
Zhongshan Yongning Ventilation System Manufacture Co., Ltd was built in 1984. Which is a large enterprise specializing in producing "yonghua" brand ventilation equipments or OEM follow clients requirements...Based on the corporate spirit of unify and innovation for greater success, our company has achieved big development through thirty years of efforts. Now our company occupies a floor space of over 36, 000 square meters and a factory building area of over 23, 000 square meters. Most of the spare parts are made by ourselves, including motor, fan body, blade balance, powder coating and so on. We locate in Chinese famous Star Town---- Xiaolan Town, Zhongshan, Guangdong.
Propelled by the spirit of professionalism and perseverance for further growth, we are always pursuing good quality and achieve constant improvement. Our company is equipped with excellent production facilities and technicians. We have imported advanced equipment such as automatic assembling lines, painting facilities and high accuracy balance testing machines to ensure our products come up with international level.
Currently, we have over 500 types of products, including household exhaust fans, industrial stand/wall fans, industrial ventilating fans, axial and centrifugal blowers and more. Our business also covers the design, manufacturing and installation of diversified environmentally friendly ventilating equipment, including noise reduction and dust-removing equipment.
Many products of our company have successfully passed GS, CE, CB, SAA, S-MARK, and CCC approvals and we have built up a strong sales network across many countries. Our products are also exported to Europe, America, Africa, Australia and Middle & East Asia and Southeast Asia and favored by clients.
