| Prod Model: |
J23-25T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Casting&Forging Machine |
Product Description
Product Description

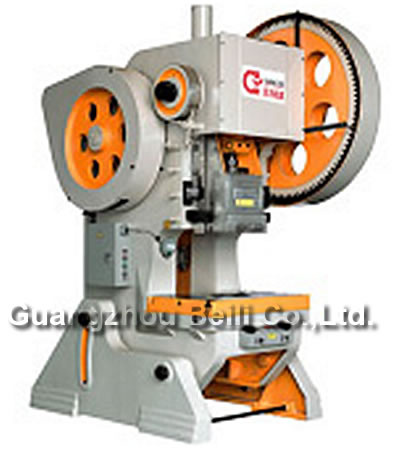

Stroke Adjustable Press
Model: J23 Series D Type
Features
J23 series D type stroke adjustable press has stroke adjustment device on the carnkshaft. Snch device can be easily adjueted and works reliably. The stroke of the sliding block can be changed through the adjustment of the device so as to meet the requirements of different technological processes.
Main specifications
|
Model |
JG23-40D |
JC23-63D |
J23-80D |
|
Nominal force |
400KN |
630KN |
800KN |
|
Stroke under nominal force |
4mm |
4mm |
5mm |
|
Slide block stroke |
20-120mm |
20-120mm |
10-130mm |
|
Number of stroke |
55 min-1 |
50 min-1 |
45 min-1 |
|
Max die set heigh |
220mm |
260mm |
280mm |
|
Die set height adjustment |
70mm |
80mm |
80mm |
|
Distance from slide block centre to the frame |
260mm |
260mm |
270mm |
|
Worktable dimension |
480x710mm |
480x710mm |
520x860mm |
|
Dimensions of worktable hole |
180mm |
180mm |
180mm |
|
Thickness of bolster |
80mm |
90mm |
100mm |
|
Hole dimensions in bed |
200x150x300mm |
250x200x340mm |
250x200x340mm |
|
Dimensions of side block bottom surface |
270x320mm |
280x320mm |
280x380mm |
|
Size of the handle hole |
50x70mm |
50x80mm |
60x75mm |
|
Max. Tilting angle of body |
25 |
25 |
25 |
|
Distance between columns of body |
300mm |
350mm |
410mm |
|
Motor Type |
Y132M1-6 |
Y132M2-6 |
Y160M-6 |
|
power |
4KW |
5.5KW |
7.5KW |
|
Outline dimension |
1600x1180x2310mm |
1810x1350x2640mm |
1810x1410x2790mm |
|
N. W. /G. W |
3180/3580kgs |
4200/4700kgs |
5280/5780kgs |
Guangzhou Bei Li Mechanic Tool Co., Ltd. Is a factory specialized in manufacturing forging and pressing equipment. The main scope of products includes press brake, shearing machine, rolling machine, power press and uncoil-level shearing line.
The company covers an area of twenty-eight thousand square meters. It owns several standard workshop and a comprehensive office building. With staff mainly composed of professional engineers and technicians, it is capable of designing, developing, manufacturing and processing equipment of standard series as well as large non-standard series equipment. We have already set up systems of strict management, complete quality guarantee and fine after-service. Our products are widely applied to sectors of mechanical manufacture, automobile, steel construction, electrics, stainless steel product and decoration project.
Beili has been committing itself to provide the manufacturing with best solutions since it was established. During the course of globalization, basing ourselves upon China market and taking a broader view of the world market, we are marching toward the better, stronger ad higher future targets with precise professional spirit, innovative research capability and rock-firm teamship.
