| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Package: |
Pallet, Manmade Wooden Case or as Your Requirement |
| Origine: |
Qingdao |
| Certificate: |
ISO9001 SGS |
| Method: |
Investment Casting |
| OEM: |
Available |
| Brand: |
Chifine |
| Criterion: |
JIS,DIN,ASTM,Bs |
| Delivery Time: |
30 Days After Receiving The Payment |
| Machining: |
CNC Turning Milling Drilling Lathe |
| Material: |
Stainless Steel |
Product Description
More information on the foundry:
1) Lost Wax Process: Wax Patterns, Sand Shell Making, Dewaxing, Pouring, Sand Cleaning, Gas Cutting, Grinding, Heat Treatment, Shot Blasting, Reshaping, Machining
2) Materials: Carbon steel, alloy steel, cast iron, cast steel, pig iron, grey iron, ductile cast iron and so on
3) Weight: 0.1 kg ~ 300kg
4) Has established efficient quality system and obtained international approvals ISO9001, TUV-PED, BV
5 Produced by experienced technical staff
6) Small orders accepted
7) Production capacity: More than 8, 000MT per year
8) Perfect test facilities
9) Advanced Machining Equipment with a whole line of machining equipment, including 4 CNC machining centers.
10) Material standards: GB, DIN, EN, NF, ISO, JIS, SS, BS, AISI, SAE, ASTM, UNS
Advantages:
1). We have won the certificate of ISO9001: 2008.
2). We are one factory, we can produce the casting by ourselves. The material covers cast iron, carbon steel, stainless steel and forging
3). Our strong R&D and QC department can control the products to meet your strict requirement.
4). We can provide OEM and ODM service. Customized order is available.
5). 15years exporting experience. Our strong R&D and QC department can control the products to meet your strict requirement.
6). Excellent and professional service
Factory details:
1.Established in 2005.Located in Qingdao China ISO 9001(2008) approved
2.Casting experience: Over 15years,OEM service available
3.Employers : 300.
4.Covered area: 400000 square metres
5.Workmanship: Traditional Sand Castings, Investment Castings (Precision Castings or Lost-Wax Castings), Resin Coated Sand Castings, Lost-Foam Castings etc.
6.Casting workshop area of 6,000 square meters
7.Total assets of 50 million yuan, and annual sales is 120 million yuan.
PROCESS |
MATERIAL |
STANDARD |
SAND CASTING |
Green Sand |
Grey Iron, Ductile Iron, Malleable Iron, Stainless Steel, Carbon Steel, Aluminium, Brass, Bronze |
AISI
ASTM
DIN
GB
BS
JIS
NF
AAR |
Furan Resin Sand |
Cold Harden Resin Sand |
INVESTMENT CASTING |
Sodium Silicone
(Water Glass) |
Stainless Steel, Carbon Steel, Special Alloy Steel, Bronze, Brass, Aluminium |
Silica Sol |
FORGING |
Hammer Forging |
Stainless Steel, Carbon Steel, Alloy Steel, Brass, Aluminium |
Die Forging |
Roll Forging |
STAMPING MACHINING |
|
All Metal Material |
Qingdao Chifine Machinery Co., Ltd is One Famous Company in China Which Specialized in Various Metal Casting Products with Over 10 Years Experience Located in Qingdao China. It Covers a Comprehensive Range of Forging, Stamping, Sand Casting, Investment Casting, Die Casting and Machining and Was Widely Used in Agriculture Machinery, Motor Vehicle, Architecture, Railway and Engineering Chifine Has Accumulated Important and Valuable Experience in Design, Manufacturing and Customer Service Over These Years We Will Continue to Integrate Our Technical Superiority, Improve Process and Quality to Increase Market Share and Create More Brilliant Future.
Automative Casting Line:
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
• Product Size: 0-1000mm.
• Weight: 0.2kg-100kg
Resin Sand Casting
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Steel casting(ASTM/UNS; DIN; JIS; NF; BS; ISO)
• Product Size: 0-1500mm.
• Weight: 10kg-5000kg
Shell Mould Casting
Shell casting is one of resin sand casting process.
It is suitable for thin-wall casting parts, be free from porosity.
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Steel alloy; Aluminum alloy; Copper alloy.
• Product Size: 0-500mm.
• Weight: 50g-100kg.
• Wall thickness: 4-20mm

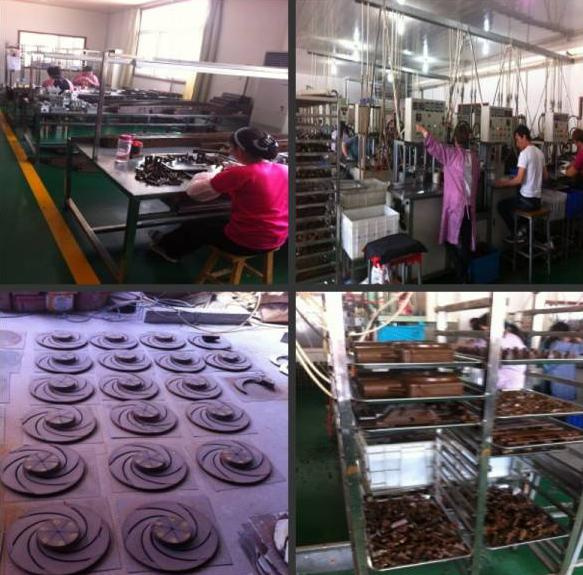

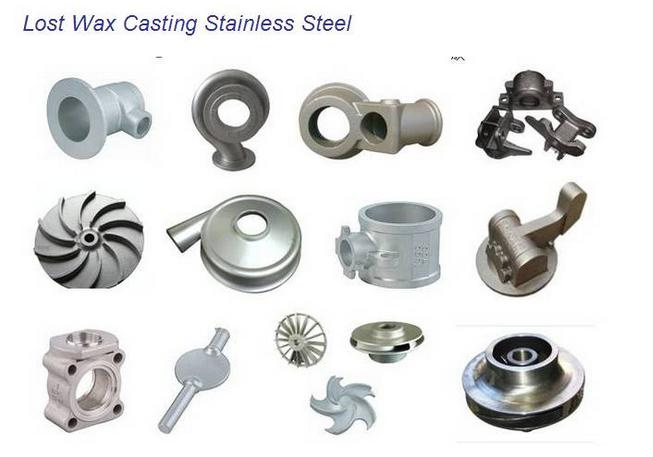

Lost Wax Casting
• Advanced wax-injection-machine and tool to ensure accurate wax-patten.
• Stable temperature and humidity environment make the wax-patten no deformation.
• Material:
Carbon steel; Stainless steel; Alloy steel.
Grey iron(GG20-GG35).
Ductile iron(GGG40-GGG60);
Malleable cast-iron
(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Aluminum alloy; Copper alloy.
• Casting size: 0-500mm.
• Casting weight: 50g-100kg
Stamping and Forging Line
• Stamping and forging equipment: 16T-300T press machine
• Automatic transport forging line
• Material: Carbon steel; Stainless steel; Alloy steel.
Aluminum alloy; Copper alloy.

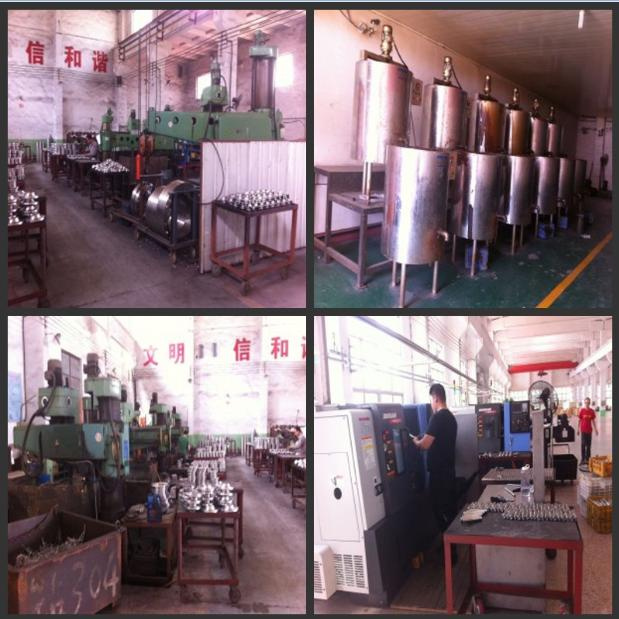

Machining Shop
Our machining shop located in Qingdao, using the latest CNC equipment to provide our customer with high quality products.
• Horizontal and Vertical Machining Center
• CNC lathe and normal lathe
• CNC drilling and milling Center
• Other assistant equipment
