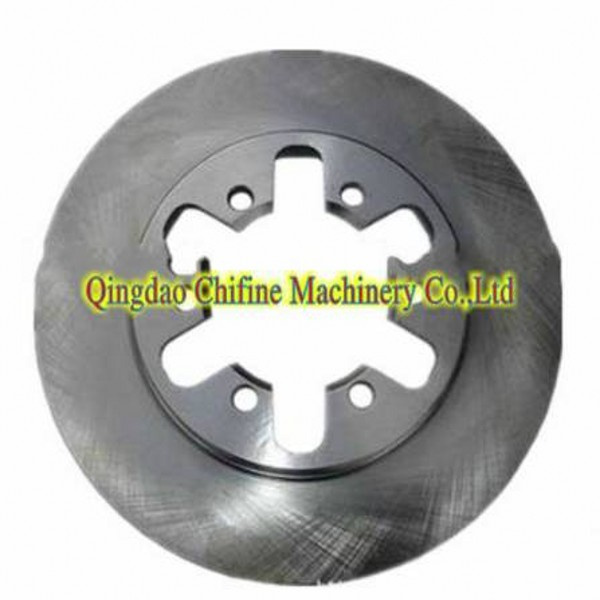

Precision Stainless Steel Brake Disc with High Quality
| Price: |
US $ 7000-8000/Ton |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
500/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
| Prod Model: |
CF-072 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Package: |
Pallet, Manmade Wooden Case or as Your Requirement |
| Material Type: |
Stainless Steel |
| Quality Control System: |
The Third Party Inspection, Self-Inspection. |
| Surface Treatment: |
Blacking, Polishing, Anodize, Painting. |
| Production Ability: |
150tons Per Month |
| Service: |
OEM and ODM |
| Supply Market: |
Global |
| Origine: |
Qingdao China |
| Certificate: |
ISO9001 SGS CE |
| Delivery Time: |
30 Days After Receiving The Payment |
| Casting Method: |
Thermal Gravity Casting |
| Material: |
Stainless Steel |
| Surface Preparation: |
Sand Blast |
Product Description
Product details:
1. Material: Iron, Stainless Steel, Carbon Steel, Bronze, Brass, Aluminum, aluminium alloys, copper alloys etc.
2. Weight range: 0.01 kg-200kg
3. Surface treatments: Shot blast, powder coating, mechanical polish, paint, plate etc.
4. Tolerance: CT7-9
5. Application: Aerospace industries, power generation industries, complex shapes turbine blades, cooling systems, equiaxed blades, triggers, hammers, military, medical industries, commercial industries and automotive industries etc
6. Casting equipments: Intermediate frequency furnaces, high-frequency furnaces, Vacuum investment melting furnaces.
7. Refractory materialscasting: Silica, zircon, various aluminium silicates, alumina etc.
8. Binders: Ethyl silicate, silica sol, sodium silicate etc

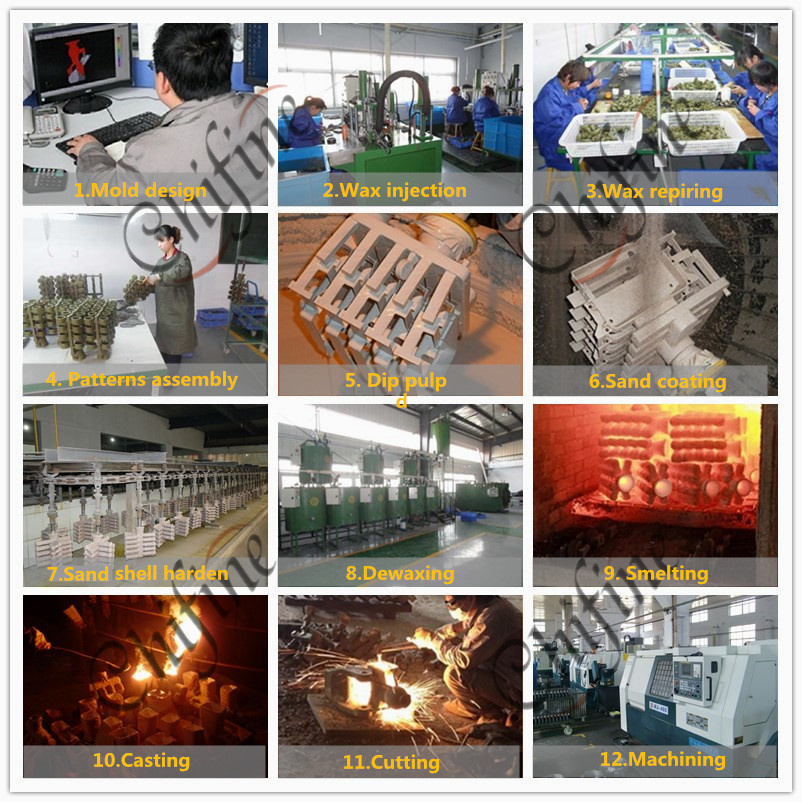

9. Stainless steel lost wax investment casting
Qingdao Chifine Machinery Co., Ltd is one famous company in China which specialized in various metal casting products with over 10 years experience located in Qingdao China. It covers a comprehensive range of forging, stamping, sand casting, investment casting, die casting and machining and was widely used in Agriculture machinery, Motor Vehicle, Architecture, Railway and Engineering
As a professional company, Chifine have four groups of experienced teams to be in charge of different work:
Project team-customer service
Engineering team-provide R&D and technical support
QC team-productive process control and incoming parts inspection
Warehouse team-warehouse management and logistic service
Advantages:
1). We have won the certificate of ISO9001: 2008.
2). We are one factory, we can produce the casting by ourselves. The material covers cast iron, carbon steel, stainless steel and forging
3). Our strong R&D and QC department can control the products to meet your strict requirement.
4). We can provide OEM and ODM service. Customized order is available.
5). 15years exporting experience. Our strong R&D and QC department can control the products to meet your strict requirement.
6). Excellent and professional service:
Our Inspection Equipment:
Direct reading spectrograph,metallographic microscope,hardness tester,brinell hardness tester,
thermometric indicator,universal testing machine,carbon and silicon analysis meter,magnetic powder
flaw detector,digital ultrasonic flaw detector etc.Quality Control:
We have a full set of quality control system to guarantee best product quality. Depending on the products, we can make different Item Testing Plan, Manufacturing procedure etc.
Raw material control
Chemistry spectrum analysis
Mechanical property
Metallographic analysis
Ultrasonic testing
Magnetic testing
Radiographic testing
Dimension inspection
Visual inspection
Penetrant testing
Leak testing
Hardness test
Micro-structure tester after heat treatment
Machining Ability
Our machining shop located in Qingdao using the latest CNC equipment to provide our customer with high quality products.
Horizontal and Vertical Machining Center
CNC lathe and normal lathe
CNC drilling and milling Center
Other assistant equipment
| Material | Ductile iron, gray cast iron,Stainless steel, carbon steel, low alloy steel,Copper alloy, aluminum alloy etc |
|
| Casting Process |
1.Cast Steel: I .Water-glass Sand Casting
II .Water-glass Investment Casting
III .Lost-wax Investment Casting
2.Cast Iron: I .Clay Sand Casting,
II .Furan Resin Sand Casting,
III .Shell Mold Casting
3.Non -ferrous Metals: I .Die Casting
II .Sand Casting
III .Lost-wax Casting
|
|
|
|
|
|
|
|
|
| Casting Process Characteristics and Applicability | 1.Clay Sand Casting:Low cost,flex and easy implement,labor-intensive,low-quality surface,it's suitable for small parts and large parts with complex shape which is difficult for mould making by machine. |
| Weight:0.5kg-3000kg |
| 2.Furan Resin Sand Casting:The castings is of high precision,external outline is clear;casting surface is smooth,good appearance,the internal structure is compact,high comprehensive quality of casting. |
| Weight:50kg-5000kg |
| 3.Shell Mold Casting:Capable of producing complex castings;casting precisely,high quality surface,compact internal structure,good mechanical properties,high productivity. |
| Weight:0.03kg-20kg |
| 4.Water-glass Sand Casting:Low cost,flexible and easy implement,the sand flow is good,easy to tighten,simple operation,low-quality casting surface,good high-temperature capability,suitable for steel casting. |
| Weight:50kg-2000kg |
| 5.Lost-wax Investment casting:Suitable for steel casting,small size,complex,high melting point alloy precision castings.particularly for cast artwork & precision machine parts.High dimension accuracy and smooth surface,but it needs multistage processes,great labor intensive and high cost. |
| Weight:0.005kg-50kg |
| 6.Die Casting:Compared with other casting precision,casting accuracy and surface quality is relatively high.It can cast thin-wall parts of complex shape and inserts with high strength and hardness.High productivity,top quality product,high dimension accuracy,generally its equivalent of 6 to 7 grade,good surface finish. |
| Weight:0.01kg-1.5kg |
| Scope of Business | Machinery part, Casting/Tractor/Pump/Valve/Impeller/Electrical |
| equipment/Auto parts/Farm machinery/Railway equipment/Mining |
Qingdao Chifine Machinery Co., Ltd is One Famous Company in China Which Specialized in Various Metal Casting Products with Over 10 Years Experience Located in Qingdao China. It Covers a Comprehensive Range of Forging, Stamping, Sand Casting, Investment Casting, Die Casting and Machining and Was Widely Used in Agriculture Machinery, Motor Vehicle, Architecture, Railway and Engineering Chifine Has Accumulated Important and Valuable Experience in Design, Manufacturing and Customer Service Over These Years We Will Continue to Integrate Our Technical Superiority, Improve Process and Quality to Increase Market Share and Create More Brilliant Future.
Automative Casting Line:
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
• Product Size: 0-1000mm.
• Weight: 0.2kg-100kg
Resin Sand Casting
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Steel casting(ASTM/UNS; DIN; JIS; NF; BS; ISO)
• Product Size: 0-1500mm.
• Weight: 10kg-5000kg
Shell Mould Casting
Shell casting is one of resin sand casting process.
It is suitable for thin-wall casting parts, be free from porosity.
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Steel alloy; Aluminum alloy; Copper alloy.
• Product Size: 0-500mm.
• Weight: 50g-100kg.
• Wall thickness: 4-20mm

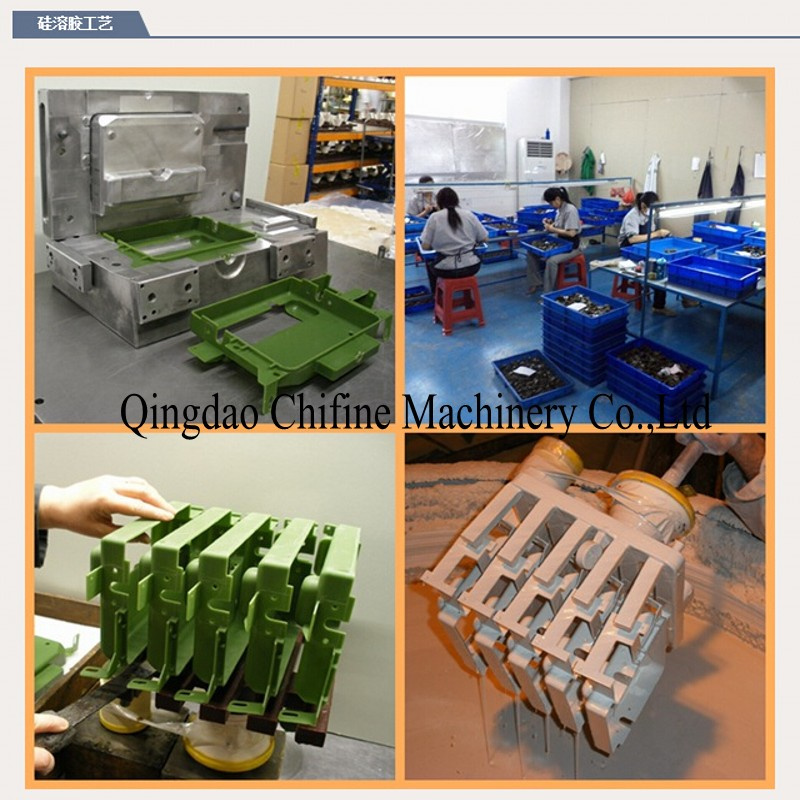

Lost Wax Casting
• Advanced wax-injection-machine and tool to ensure accurate wax-patten.
• Stable temperature and humidity environment make the wax-patten no deformation.
• Material:
Carbon steel; Stainless steel; Alloy steel.
Grey iron(GG20-GG35).
Ductile iron(GGG40-GGG60);
Malleable cast-iron
(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Aluminum alloy; Copper alloy.
• Casting size: 0-500mm.
• Casting weight: 50g-100kg
Stamping and Forging Line
• Stamping and forging equipment: 16T-300T press machine
• Automatic transport forging line
• Material: Carbon steel; Stainless steel; Alloy steel.
Aluminum alloy; Copper alloy.

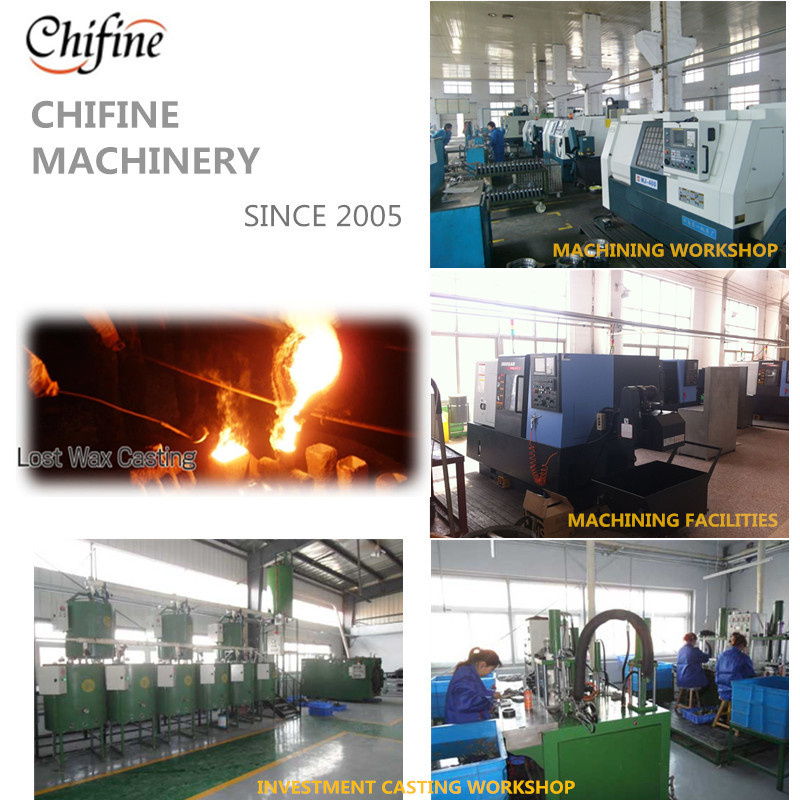

Machining Shop
Our machining shop located in Qingdao, using the latest CNC equipment to provide our customer with high quality products.
• Horizontal and Vertical Machining Center
• CNC lathe and normal lathe
• CNC drilling and milling Center
• Other assistant equipment
