Product Description

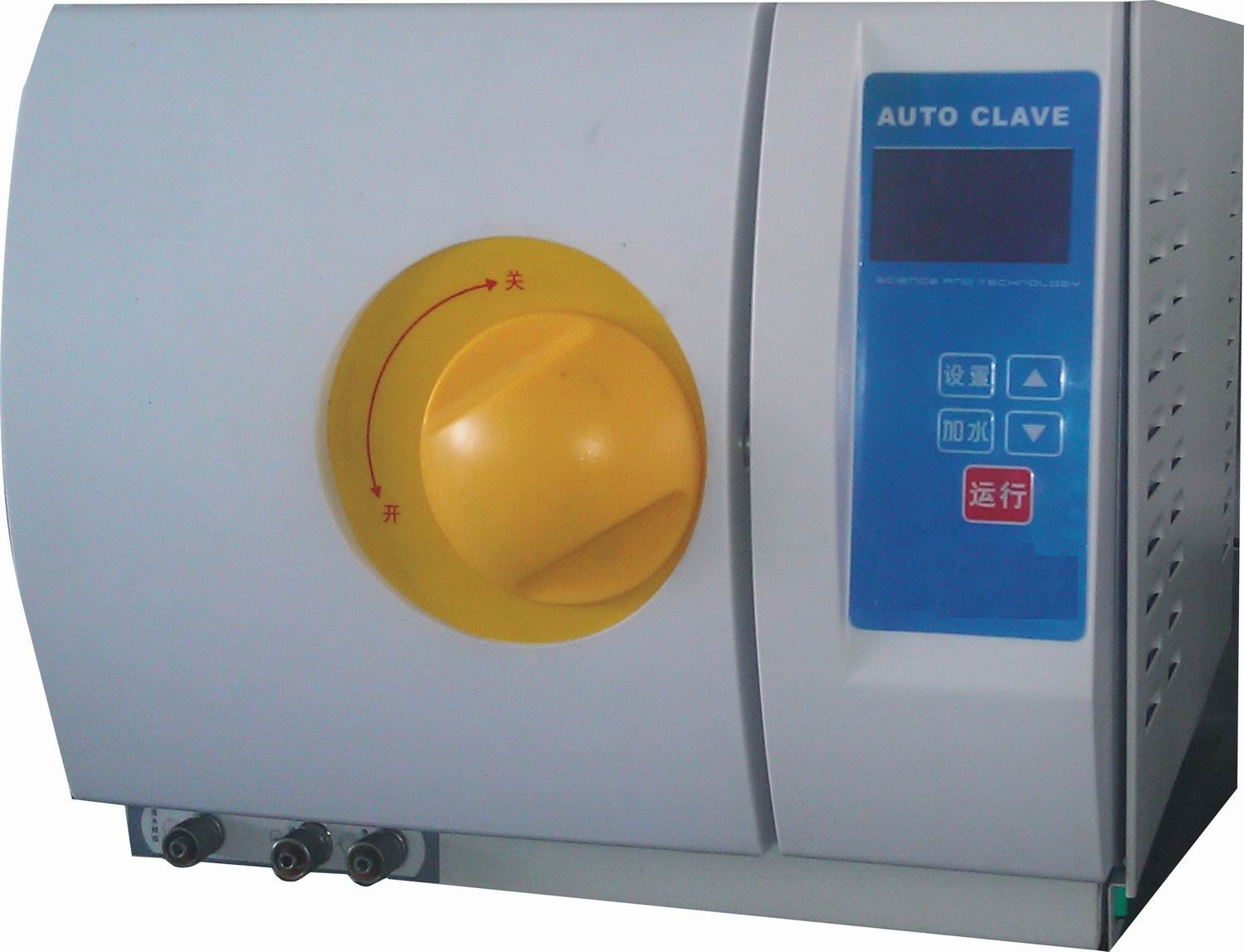

Pressure Steam Sterilizer/Autoclave Sterilizer / Medical Pressure Steam Sterilizer(HYH-16(ABC)HYH-23(ABC))
Model: ZG-SZNHHY05
Specification
The spray is a die casting mold, use the first amine corrosion-resistant polymer material
Can provide complete sets of plastic chassis
Set from the number:100 sets or more, Price:negotiation
Description:
Hui more brand HYH-16L/23Ldesign, quick-lock locking mechanism, lightweight and fast, easy, modern-type multi-function pressure off Yan device. Control systems both for you to choose a number of sterilization procedures.
HYH-16A/23A pulse pre-vacuum: up to European standards Class B
HYH-16B/23B a pre-vacuum: meet the European standard S-Class
HYH-16C/23Cpre-vacuum thermal power: N-class standards to meet European
Performance and configuration (HYH-16L/23L)
Microprocessor control and management, the program automatically controls the cold air, circulating air emissions, extraction, heating temperature, sterilization, drying, vacuum end.
LCD Chinese display, display pressure, temperature, time, and the end of the audio prompts, a glance, allowing you to sit back and relax.
abnormal fault self-diagnosis, feedback and Chinese audio prompts, keep you running dynamic, easy self-maintenance.
main original accessories: Select imported materials, to ensure stable and safe.
independent waste water storage tanks: to prevent pollution of the water cycle, the sterilization reliable and secure.
water choose high / medium / low, depending on the choice of sterile water into, so that the steam generated by fast and efficient.
Safety Insurance Design
abnormal control system failure, the microcontroller software automatically reset, release the pressure and lift the stop.
equipped with three over-temperature overpressure protection device, the dual pressure and temperature sensors to retrieve control to achieve zero accidents.
unique design of the door lock switch lock mechanism that locks automatically lock to run the state, to ensure safe use.
Scope:
Suitable for high temperature, high humidity gas sterilization of items such as glassware, ceramics, rubber, metals, reagents and liquid medicines.
Technical Specifications:
Specification
Parameters |
HYU-40L/HYU-50L |
HYH-16A/B/C/HYH-23A/B/C |
Input voltage |
Ac220V±10/50Hz |
Ac220V±10/50Hz |
Power consumption |
≥2.8KW |
≤1500W/≤1800W |
Sterilization temperature |
105ºC-135ºC(optiona) |
105ºC-135ºC(optiona) |
Sterilization time |
01-99min(optiona) |
01-99min(optiona) |
Optional Program |
6 |
|
Delayed start date |
01-31day(optiona) |
|
Delay start time |
01-24h(optiona) |
|
Valve opening |
29%-99%( optiona) |
|
Thermal model |
45ºC-80ºC(optiona) |
|
Capacity plot |
40L/50L |
16L/23L |
Rated working pressure |
≥0.22Mpa |
≥0.22Mpa |
Container liner material |
304 |
304 |
Quantity selected |
|
high / medium / low (optional) |
Net, separating |
|
2 water storage tanks |
Net weight |
76kg/80kg |
48kg/55kg |
Cavity size |
¢300×600/¢300×700 (mm) |
¢240×370/¢240×480 |
|
