| Price: | US $ 1000/Ton |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 1/Ton |
| Pay Type: | L/C,T/T |

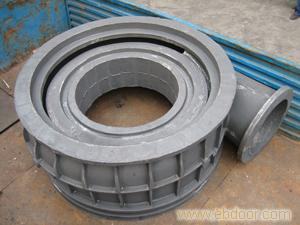

| Prod Model: | Volute Chamber |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Molding Process: | Resin Sand/Green Sand |
| Molding: | Hand Molding/Molding Machine Z145/146/148/Molding |
| Possible Heat Treatment: | Annealing |
| Industry Involved: | Municipal Construction / Fluid /Automotive |
| Part Unit Weight Range: | 0. 5kg-2000kgs |
| Max/Min Wall Thickness Requirements: | 4mm-250mm |
| Type: | Clay Wet Sand |
1. Ductile Iron Castings: | |
| 1) molding process: | Resin sand/Green Sand |
| 2) Material: | EN-GJS-400-15/EN-GJS-500-7/EN-GJS-600-3/EN-GJS-700-2 |
| 3) Molding: | Hand molding/Molding machine Z145/146/148/Molding line. |
| 4) Possible Heat Treatment: | Annealing |
| 5) Industry involved: | Municipal Construction / Fluid /Automotive |
| 6) Part unit weight range: | 0. 5kg-2000kgs |
| 7) Max/Min wall thickness requirements: | 4mm-250mm |
| 8) Manufacturer Certification: | ISO9001(2000)/ TS16949 |
| 2. Grey iron castings: | |
| 1) molding process: | Green sand/Resin sand |
| 2) Material: | EN-GJL-150/DIN 1691 GG-15 EN-GJL-200/DIN 1691-GG20 EN-GJL-250/DIN1691-GG25 EN-GJL-300/DIN1691-GG30 |
| 3) Molding: | Hand molding/ Molding machine Z145/146/148/Molding line. |
| 4) Industry involved: | Municipal industry/Construction Fluid industry/Automotive industry |
| 5) Part unit weight range: | 0.5kg-2000kgs |
| 6) Max/Min wall thickness requirements: | 4mm |
| 7) Manufacturer Certification: | ISO9001(2000)/ TS16949 |
| 3. Malleable castings: | |
| 1) molding process: | Green Sand |
| 2) Material: | Ferrite Malleable Iron KTH350-10, KTH370-12, KTZ2550-04 |
| 3) Molding: | Hand-molding/Mechanical molding/Molding machine/Molding line. |
| 4) Possible Heat treatment: | Annealing, Normalizing, Quenching |
| 5) Industry involved: | Power Transmission/Construction Industry |
| 6) Part unit weight range: | 0.2kg-15kgs |
| 7) Max/Min wall thickness requirements: | 4mm-10mm |
| 8) Representative Product: | Insulator Caps/Fastener/Scaffold |
| 9) Manufacturer Certification: | ISO9001(2000) |
