| Prod Model: |
TYMB750/930/1100/1200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Condition: |
New |
| Classification: |
Intermittent Stamping Machine |
| Automatic Grade: |
Semi-Automatic |
| Color & Page: |
Single Color |
Product Description
Function Characteristics:

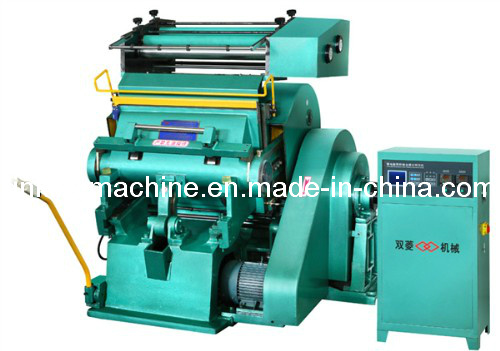

TYMB Serial program control hot stamping and Die cutting Machines are new generation products with high precision and marked effect. They are used for hot stamping all kinds of colored aluminum foil and embossing upon pictures. Advertisement samples, trade mark, covers of books, season greeting cards, packaging cartons, and high grade decoration and printing materials and leather, etc. The suitable materials are including paper, cardboard, plastics and leather, etc., So that they are ideal equipments for printing. Packaging and plastics fields.
REMARKS: (USAGE)
Security Badges, ID Cards, Product Authentication, Legal Documents
Boxes, Gift-wrap, Packaging
Letterhead, Envelopes, Business Cards
Direct Mail, Point of Purchase Displays, Magazine Inserts
Children's Toys, Novelties, Promotional Items
Characteristic:
1. High strength due to one piece casting by using top-ranking material for machine body.
2. Single plate electromagnetic clutch is sensitive and reliable.
3. Operation position is reasonably arranged, moving-bed can be opened to its optimum
4. Computer controlled is stable
5. Skipping distance controlled by stepper motor is accurate, so as to save foils.
6. Hot stamping parts are controlled by computer system through setting data by handler, easy to operate. Feeding paper and get out by hand.
7. With three functions of continuous creasing and cutting, opening well operation and closing dwell operation and a large dwell adjusting range.
|
Model |
TYMB750 |
TYMB930 |
TYMB1100 |
TYMB1200 |
|
Max. area available |
750×500mm |
930×670mm |
1100×800mm |
1200×820mm |
|
Max. Stamping area |
665×460mm |
920×665mm |
1000×750mm |
1100×800mm |
|
Skip range |
1-500mm |
1-665mm |
1-750mm |
1-800mm |
|
Foil-delivered length |
1-500mm |
1-665mm |
1-750mm |
1-800mm |
|
Foil-feeding precision |
1mm |
1mm |
1mm |
1mm |
|
Foil-delivered group |
2 groups |
3 groups |
3 groups |
3 groups |
|
Skip frequency |
1-99 times |
1-99 times |
1-99 times |
1-99 times |
|
Working speed |
25±2 times/min |
22±2 times/min |
20±2 times/min |
20±2 times/min |
|
Working pressure |
150 T |
170 T |
220 T |
250 T |
|
Temperature range |
1-170*c |
1-170*c |
1-170*c |
1-170*c |
|
Total power |
5kw |
5kw |
13.8kw |
15kw |
|
Main motor power |
2.2kw-6H 380V |
4kw-4H 380V/220V |
4kw-4H 380V/220V |
4kw-6H 380V/220V |
|
Net weight |
1800kg |
3500kg |
5000kg |
5500kg |
|
Gross weight |
2000kg |
3700kg |
5200kg |
5800kg |
|
Dimension(L*W*H) |
1610×1360×1750mm |
1780×1860×1900mm |
1960×2030×2060mm |
2000×2040×2060mm |
Wenzhou Qianfeng Technology Co., Ltd. is back-end of PP woven bag machinery manufacturer with scientific research, development, manufacture, sales and service.
It is wellknown and more than years rich experiences, to supply the suitable packaging machinery to all of our clients is our biggest goal!
Our main productions are Flexographic printing machine, Automatic cutting machine, Automatic sewing machine etc for PP woven bag. All above equipments are with the high-end technology patents which is in leading level in current domestic. Be used in proper proportions will reduce the labor intensity and bag cost, improve the bag quality and production efficiency, create more binefit. Our machinery have been exported to over several dozens countries such as Southeast Aisa, Middle East, Middle Aisa, Russia and Africa.
Our purpose is "quality first customer first" with own technical expenrtise, we improve and develop our machinery continuously, the perfect after-sales service to solve problems of the customer who buy products! Our machinery has been good favours by customers of a long time. Welcome all customers to visit us and dicuss cooperation together.
