| Prod Model: |
SWC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Red/ Yellow |
| Length Compensation: |
Telescoped |
| Twist Angle: |
25 Degrees |
| Connection: |
Flange |
| Structure: |
Universal |
| Flexible Or Rigid: |
Flexible |
Product Description
Product descriptions Propeller shaft is a mechanical component for transmitting torque and rotation, usually used to connect driving motor and operation machines that cannot be connected directly because of distance or the need to allow for relative movement between them.

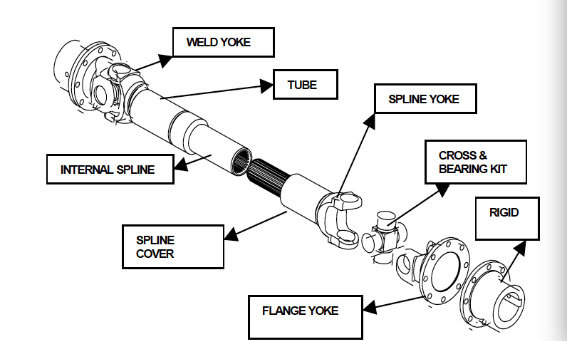

Structure and components for propeller shaft
Models for SWC type Propeller shaft| Model | rotary diameter (mm) | Nominal torque (kN.m) | Fatigue torque (kN.m) | twist angle |
| SWC100 | 100 | 2.5 | 1.25 | 25° |
| SWC150 | 150 | 10 | 5 | 25° |
| SWC180 | 180 | 22.4 | 11.2 | 25° |
| SWC225 | 225 | 56 | 28 | 15° |
| SWC250 | 250 | 80 | 40 | 15° |
| SWC285 | 285 | 120 | 60 | 15° |
| SWC350 | 350 | 225 | 12.5 | 15° |
| SWC390 | 390 | 320 | 160 | 15° |
| SWC550 | 550 | 1000 | 500 | 15° |
- Manufacturer/Brand: COUPS
- Model: SWC
- Place of origin: China
- Torque: 2.5~2000kN.m
- Rotary diameter: 100mm~1200mm
- Rotary Speed: 0~1500RPM
- Twist angle: 25°
- Material: Steel
- Balance grade: G2.5
- HS Code: 8483600090
- Applications: heavy duty industrial machines such as rolling mill, marine driving, construction machines, pumps, fan, blower, turbo, etc fields.
- Prices: 100USD~5000USD/set
Product applications

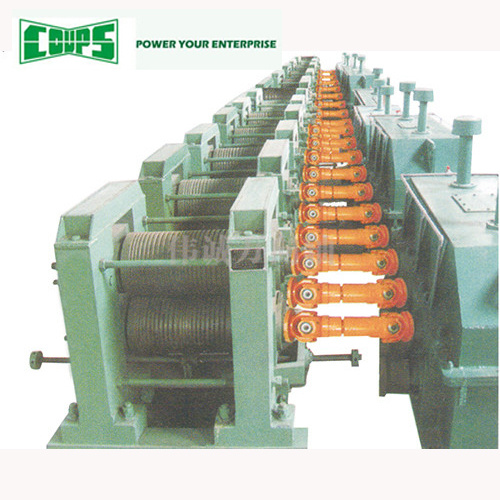

Propeller shafts and couplings are widely used in different industrial fields such as steel and iron manufacturing, chemical industry, paper making, transportation, pump, etc industries. We can provide one-stop solution and will guarantee your production line running stably.
Packing& Delivery1.Lead time (production period): 15~60 days
2.Packing method: Wooden box
3.Delivery way: Sea shipping or Air transportation
Warranty& after-sale service 1. Warranty: 12 months from shipping day.
2. We have spare parts ready in stockhouse, and our mechnical engineers are available for after sale service.
Founded in 1995, COUPS TRANSMISSION MACHINERY Co., Ltd had 20 years production experience in transmission field. The head quarter was registered in Hongkong and we set up the share board to speed up our business development in market competition.
Our products include cardan shafts, couplings, clutches, power locks, and other transmission parts, and were exported to over 40 countries, enjoyed excellent reputation by high quality and satisfying service.
In long run, we put investments in high-tech equipments, such as torque test table, 3D test bench and large-scale axial CNC machining centers, etc. Which improves our technology strength and competitiveness. We achieved international classification society certificate by impressive performance in the international market.
As always specialized in transmission field with much experience, we provide solid products and quick services, making great efforts to reach the customers' strict requirements and support customers' production line, to lead them continuously profitable.
