Prod Model: |
Pump diffuser |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Pump Diffuser Delivery Time: 30days: |
Material : According to Customer's Requirements |
Pump Diffuser Machining : CNC Machining: |
Certificate: BV ,ISO 9001 |
Type: |
Clay Dry Sand |
Product Description
1. Products information :

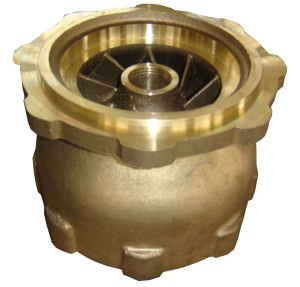

pump diffuser
Main producing process: Mould - Castings- Shot blasting -Heat treatment - machining -testing - packaging
The material of pump diffuser : CD4 , Stainless steel 316 , alloy steel and so on
2.Castings craft:
Caft | Clarify | Process | Material |
Lost Wax Casting | silicon colloidal | moulding | Stainless steel, carbon steel, low alloy, high chrom, cas iron, bronze, ductile iron brass, etc. |
pouring |
waterglass bonded | machining |
testing |
Sand Casting | resin sand craft | moulding | Stainless steel, carbon steel, low alloy, high chrom, cas iron, bronze, ductile iron brass, etc. |
pouring |
silicate bonded sand craft | machining |
testing |
Lost Foam Casting |
| moulding | Stainless steel, carbon steel, low alloy, high chrom, cas iron, bronze, ductile iron brass, etc. |
pouring |
machining |
The pump diffuser are made by sand casting.
3. Machining and Testing for pump diffuser
Our Advantage | 1. OEM according to your drawings are available 2. Professional model selection experts are at your service 3. We do the pump test strictly 4. Guarantee the quality, factory direct price and the fastest delivery time. |
Annual Capacity | The maximum production capacity could be 10, 000 tons per year |
Weight | 10 grams by lost wax casting, the largest weight can be made up to 10t/pc or as per customer ' s requirements |
Standards | AISI, ASME, BS, ANSI, JIS, GB, GOST etc. |
Machining | CNC Lathe, Universal Lathe, CNC Cutting Machine, Dynamic Balancing Machine |
Testing | Spectrameter, Hardness Tester, Toughness Tester, Dynamic Balancing Tester, PT Tester, Hydro Test, High Pressure 1500 psi etc. |
Application | Oilfield equipment, Well Construction, Mining & Construction, Power Generation, Wastewater General industry, Chemical Processing etc. |
4. Packaging for pump diffuser
Packing Methods |
Small part, single packed then put into paper carton then to crate. |
1. Generally use poly wooden crates for package. |
Minimum poly wooden board thickness: 20mm |
Steel band: 19× 0.5mm or 15× 0.5mm |
Common crate size is less than 1200X1000X1000mm |
2. For the very big part, use welding steel crate. The size and steel thickness is according to the product dimension and weight. |
3. Large size and large quantity part, put into container directly. |
5. Contact information :
Add:No. 7 Zhangzhou road ,Zibo ,Shandong , China
Tel: 0086-533-3583820/2833533
Fax: 0086-533-3583950
Web: www.zltgroup.com
Mobile: 86 18369906394
Welcome to Zibo ZLT International who was established in 2006, and Graded as TOP A company in Chinese Customs Classification Management which means the highest reputation and trustful company for exporting, and whose factory is ZIBO QINGDONG MACHINERY MANUFACTURING Co., Ltd specialized in castings and machining parts according to customers'drawings or samples in Zibo City, Shandong Province, China.
The castings are mainly made by Lost wax casting, Sand casting, Lost foam casting with the material stainless steel, carbon steel, alloy steel, iron and so on.
The machining parts can be made in our own machining shop. Many advanced equipments such as CNC lathe, CNC cutting machine, miller and so on controlled by experienced workers and extremely strict inspection that will absolutely ensure the high quality products released from our company.
