| Prod Model: |
OEM |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Process: |
CNC Milling |
| Type: |
Broaching, Drilling, Etching / Chemical Machining, |
| Certificate: |
SGS Test Report |
| Surface Finish: |
Anodize& Sandblasting |
| MOQ: |
1-10PCS |
| Scrap Rate: |
0.5~1% |
| Tolerance: |
0.01-0.02mm |
| Inspection: |
100% Inspection |
| Short Lead Time: |
5-18 Days |
| Axis Shape: |
Straight Shaft |
| Load: |
Shaft |
| Material: |
Aluminum, Brass, Bronze, Copper, Hardened Metals, |
| Journal Surface Roughness: |
as Your Reqeust |
| Shaft Shape: |
as Your Request |
Product Description

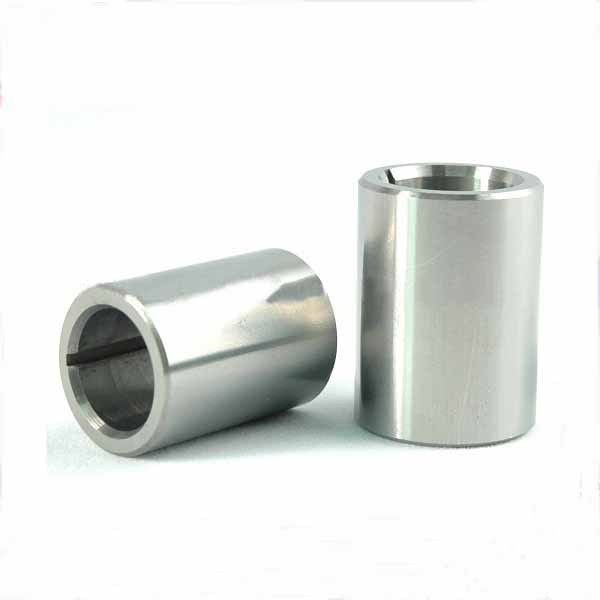

Pump Shaft Sleeve
Material:
Tungsten Carbide with 4~25% cobalt binder, 6~15% nickel binder,WC-TiC-Ni/Cr alloy etc.
Cutstar Carbide Standard Grades
Cobalt Binder Grades
Grade |
Binder (Wt%) |
Density (g/cm3) |
Hardness (HRA) |
TRS (≥N/mm²) |
YG6 |
6 |
14.8 |
90.0 |
1520 |
YG6X |
6 |
14.9 |
91.0 |
1450 |
YG6A |
6 |
14.9 |
92.0 |
1540 |
YG8 |
8 |
14.7 |
89.5 |
1750 |
YG12 |
12 |
14.2 |
88.0 |
1810 |
YG15 |
15 |
14.0 |
87.0 |
2050 |
YG20 |
20 |
13.5 |
85.5 |
2450 |
YG25 |
25 |
12.1 |
84.0 |
2550 |
Nickel Binder Grades
Grade |
Binder (Wt %) |
Density (g/cm3) |
Hardness (HRA) |
TRS (≥N/mm²) |
YN6 |
6 |
14.7 |
89.5 |
1460 |
YN6X |
6 |
14.8 |
90.5 |
1400 |
YN6A |
6 |
14.8 |
91.0 |
1480 |
YN8 |
8 |
14.6 |
88.5 |
1710 |
Remarks:
1. 1N/mm²=145.038PSI
2. Cutstar Carbide can develop new grade for customer's special application
Basic dimension of tungsten carbide pump shaft sleeve:
OD:6~450mm ID:0.8~400mm H:5~225mm
A professional manufacturer for custom precision machined parts, and ISO9001: 2008 certified.
Specialize in CNC turning, 4-axis CNC milling, 5-axis CNC milling, and complex CNC turning&milling.
The materials we are capable to machine include S303, S304(L), Brass, Aluminum, Copper, Carbon steel, Titanium, Delrin, PC, etc.
Our customers are mainly in markets of Motor, LED, Sensor, Auto Products, Communication Components, Medical Instruments, Fluid Control Equipments, etc
1. Detail Information:
(1). Material: Aluminum
(2). Surface Finished: Anodize&Sandblasting
(3). Process: CNC Milling
(4). Tolerance: 0.02mm
2. Advance:
(1). Direct from factory
(2). Low(1-2%)scrap rate
(3). All kinds of metal&plastic material is available
(4). High Tolerance: +/- 0.02mm(Metal shaft), +/-0.03mm(plastic)
(5). 100% inspection(offer QC report)
(6). Sample is available
(7). Short lead time (5-20 days).
(8). One-stop customized service
Welding Metal Bracket
| Material abailable |
|
| Carbon Steel | Stainless Steel 304/314/316 etc |
| Tool Steel | Aluminum 2024/5052/6061/7075 |
| Brass/Copper/Bronze | POM/Acrylic/Plastic/Nylon |
| Machining Service |
|
| CNC machining | Lathe Machining |
| Milling | Stamping and bending |
| Precision Welding | Wire Cutting |
| Fixtures and jigs |
|
| Finish Available |
|
| Polishing | Zinc/Nickel/Chrome Plating |
| clear/black/blue anodizing, sandblast | black oxide |
| powder coating | painting |
| Features |
|
| Strict QC and reliable quality | on-time delivery |
| small order acceptable | custom service by drawing or sample |
| Main Clients |
|
| CANON, DENSO,OMRON,RICOH,MISUMI etc |
|
Pump Shaft Sleeve
Since 2006, located in Shenzhen City, enjoying superior geographical conditions, convenient transportation, just 20 minutes to the Bao' An Airport. Shenzhen shun ying precision Machinery has become a professional manufacturer and exporter for CNC machined, CNC Milling Parts, CNC Turning Parts, CNC Lathe Parts. Metal fabrication. We specialize in providing high volume, custom components in complex configurations to exacting tolerances. Providing CNC turning, screw machining, and a full complement of secondary & finish operations, including heat treat and plating. Shun win continues to meet the needs of OEM\' S worldwide.
We have 10 CNC machining centers, CNC lathe 5 sets, precision vertical milling machine 10 sets, 80 workers and a 1, 700sqm factory workshop. Our turnover last year achieved $5 million.
With our strong technical force, high-level management personnel, strong productivity, perfect management system, and advanced equipment such as CNC cutting machine and polishing machines, CNC lathes, grinders and punching machines, we are capable of meeting the requirements of customers.
We always pay close attention to the management of product quality and gradually realize the integration of production, testing, sale and service. We have established good business relationships with domestic and abroad customer. With our best quality, competitive prices and good services.
Welcome to inquiry us at any time.
