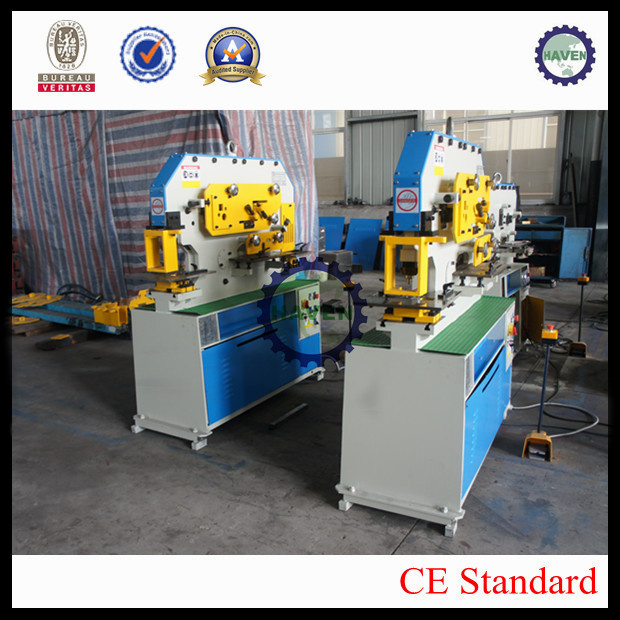

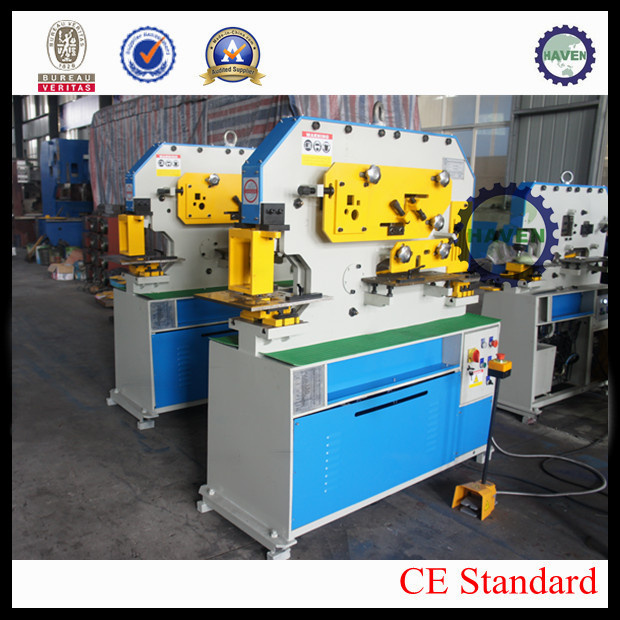

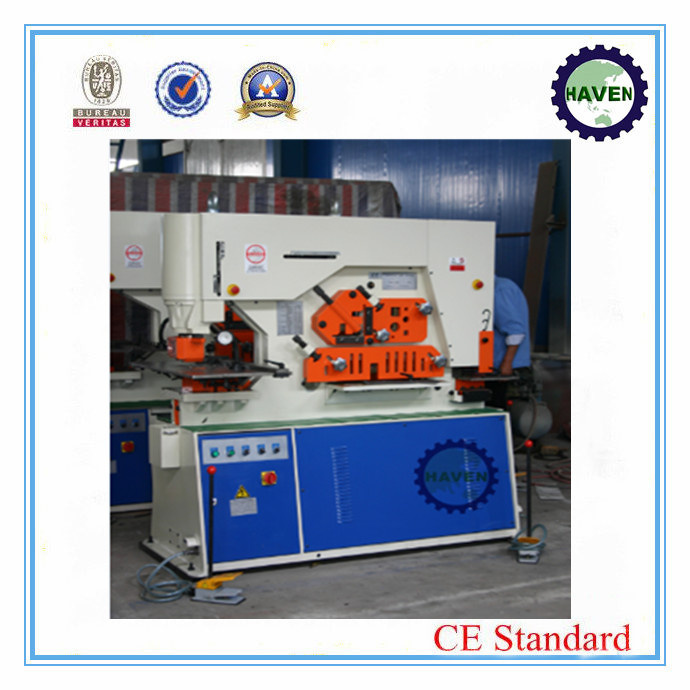

Q35 Y Hydraulic Iron Worker hydraulic Combined Punching and Shearing Machine with Notching
| Price: |
US $ 7000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
| Prod Model: |
Q35Y-20 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Punching Machine: |
Shearing Machine |
| Pressure: |
90T |
| Max Shearing Thickness: |
20mm |
| Plate Srrength: |
450N/mm2 |
| Forging Forming Method: |
Mold Forging |
Product Description
Q35 Y Hydraulic Iron Worker Hydrualic Combined Punching and Shearing Machine with Notching
1. With beautiful appearance, low noise and multi-usages,
2. The machine has five basic functions: Punching, steel-plate shearing, angle-iron-shearing and template-shearing. According to consumers'own demands,
3. The machine can also punch and shear workpieces with all kinds of shapes by changing moulds or cutting tools.
4. It has been found many applications in aircraft, tractor, motor vechicle, ship, metallurgy, costruction, agricuture and other industries as dominant machine.
5. Be sure to call us when you want to purchase this kind of machine with satisfaction.
Main parameter :
| Item | Unit | Q34Y-16 | Q35Y-12 |
| Shearing |
|
|
|
| Flat bar(W×T) | mm | 150×16,550×4 | 300×12 |
| Square bar | mm | 30×30 | 30×30 |
| Round bar | mm | φ32 | φ40 |
| Joist(Type) |
|
| 10# |
| Channel(Type) |
| 10# | 10# |
| Cutting of angle steel at 90 o | mm | 100×12 | 80×8 |
| Cutting of angle steel at 45 o | mm | 80×10 |
|
| Punching(D×T) | mm | φ26×16 | φ25×12 |
| Anble flange(L×W×T) | mm |
| 80×50×10 |
| Punching force | kn | 600 | 600 |
| Depth of throat | mm | 220 | 172 |
| Max.length of cylinder stroke | mm | 175 | 32 |
| Stroke times | times/min | 6-18 | 8-16 |
| Motor power | kw | 4 | 4 |
| Net weight | kg | 1300 | 700 |
| Overall diamensions(L×W×H) | mm | 1585×630×1570 | 960×550×1783 |
| Packing department dimensions(L×W×H) | mm | 1880×790×1770 | 1260×670×1840 |
| It is according to the customers'requirements |
We, Shaanxi Haven Equipment & Trading Co., Ltd, is consisted with 2 factories and 1 international trading company, so we can export our products directly at competitive price. To run our business conveniently, we set up our 2 factories in Nantong Industry Zone which is located in the most developed economic area in China and is nearby the Shanghai Sea Port, that will be much helpful to low our export cost.
With experienced engineers and worker, we produce high quality machines and supply good after sale service. In the past years, we are specialized in import and export of machinery and equipment such as machine tools, vehicles maintenance equipments, motors, bearings, hand tools, power tools and industrial materials. Our business scope also includes import and export of technology, contracting overseas projects and engineer training services.
Our products have been exported to more than 30 countries or regions in the world with high quality, We commit ourselves to cooperating with importers and exporters all over the world. We are looking forward to your enquiries and collaboration. Our technicians will assure you of appropriate equipment with reasonable prices and best pre-sale and after-sale services.
Our Business Scope Include: Turning Machines (Lathe), Drilling Machines, Drilling And Milling Machines, Boring Machines, Milling Machines, Machining Centers, Grinding Machines, Tool Grinding Machines, Gear Cutting And Finishing Machines, Planning Machines, Shaping Machines, Slotting Machines, Broaching Machines, Sawing Machines, Cut-Off Machines, Screwing And Threading Machines, Honing Machine, Polishing Machines, Shearring Machines, Press Brakes, Bending Machine, Punching Machine, Iron Worker, Presses, Rolling Machine, Notching Machine, Engraving Machines, Electric Discharging Machine (EDM), etc.
Our target is: High quality, efficient service, reliable honesty.
