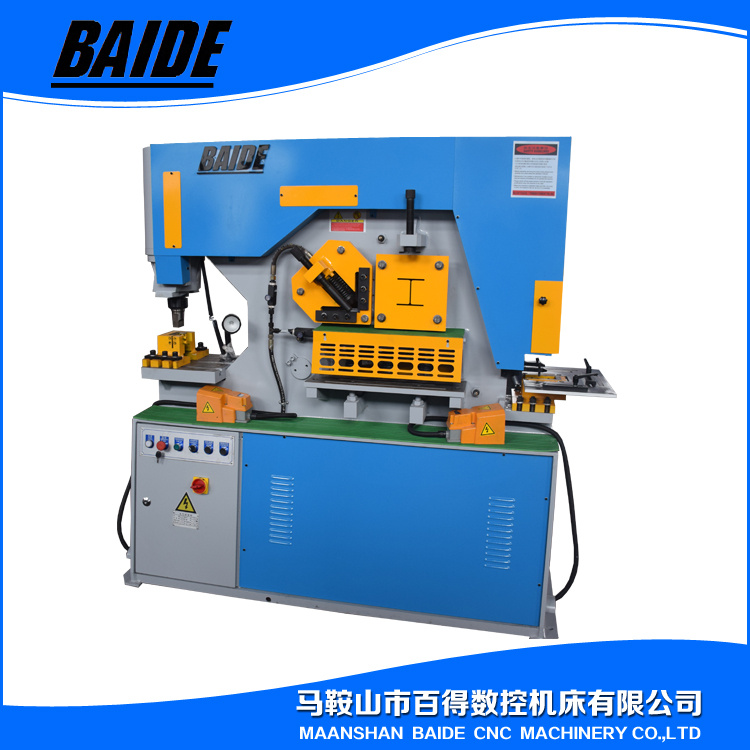

Q35y Plate Notching Machine with Hydraulic Driving

Q35y Plate Notching Machine with Hydraulic Driving
Price: US $ 5000/Piece
Trade Terms: FOB,CFR,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union
Prod Model: Q35Y
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Place Of Origin: Anhui, China (Mainland)
CNC Or Not: CNC
Brand Name: Baide
Model Number: Q35y
Color: Black and Red
Modle: Hydraulic
Quality Guarantee: 1 Year
Operation: Optional
Delivery Date: 30 Days
Package: Plywood
Forging Forming Method: Mold Forging

Product Description

Features of Single Cylinder Ironworker Machine, Single Cylinder Iron Worker Machine

1, Baide Single Cylinder Ironworker Machine, Single Cylinder Iron Worker Machine adopt shydraulic driving system.
2, Baide Single Cylinder Ironworker Machine, Single Cylinder Iron Worker Machines are the latest iron workers in China.
3, Various metal plate, square bar, round bar, angle, channel and joist can be cut, punched and notched on the Single Cylinder Ironworker Machine, Single Cylinder Iron Worker Machine.
4, Baide hydrualic ironworker is also equipped with a stop device for cutting.

Function of Single Cylinder Ironworker Machine, Single Cylinder Iron Worker Machine

1. Punching
Full range of universal punches and dies are available. Unique style allows for large angle iron punching and large channel punching.
Large viewing window on stripper swing away design for ease of operation. Large two piece gauging table with rulers and stop as standard fittings. Quick change coupling nut and sleeve for rapid replacement of change.
2. Shearing
Round and square bar shear has multiple holes for a variety of sizes. Adjustable hold down device for round/square bar, channel/beam cutting. Large strong guarding for max safety.
The angle shear has the ability to cut angle at 45° Both top and bottom leg. This gives the operator the ability to make a picture frame corner for perfect welds. Diamond shaped blade for quality cuts that is minimal material lost and deformity.
3. Notching
Unique design allows for cutting of angle and flat bar. Electrical interlock safety guard and three gauging stops for precise positioning.
4. Bending
Can also bend the plate below 500mm.

Other detail of Single Cylinder Ironworker Machine, Single Cylinder Iron Worker Machine

1) Robust and accurate steel frame
2) Large punch table with scales
3) Removable bolster for punching flanges and channel and beam
4) 2 independent hydraulic cylinders
5) 2 shielded foot controls
6) 2 Separate Die Openings for oversized punching
7) 5 working stations for wide applications
8) Power inching on all 5 work stations
9) Plate shear support/table and notching table
10) Adjustable stroke controls with indicators on both cylinders
11) Movable work light as standard
12) Overload protection on hydraulic system
13) Electric backgauge
14) Optional bending attachment
15) Optional 5 sets punches and dies
ModelQ35Y-16Q35Y-20Q35Y-25Q35Y-30
Punching Pressure (Ton)5575110140
Shear thickness (mm)16202530
Material Strength(Kn/mm 2 )≤450≤450≤450≤450
Notching Angle
Shear Size of One Stroke (Thickness*Width)(mm)16*250
8*400
20*330
10*480
25*330
16*600
30*355
20*600
Slide Stroke80808080
Stroke Times(time/min)8866
Throat Deepth (mm)300355400600
Punch Thickness (mm)16202526
Punch Diameter (mm)25303538
Motor (kw)45.57.511
Dimension (L*W*H)  (mm)1640*730*17701860*800*19002355*960*20902680*1040*2300
Weight (kg)1700230050007200

H,Channel,Angle need special oder.
shaperoundsquareangel with same sideT beamHI beam
90°shear45°shear90°shear45°shear
Section











Q35Y-164540*40125*125*1250*50*5120*120*1260*60*8126*74*5126*53*5.5
Q35Y-205050*50140*140*1250*50*5140*140*1270*70*10160*86*6160*60*6.5
Q35Y-256050*50160*160*1450*50*5160*160*1480*80*10200*102*9210*75*9
Q35Y-306555*55180*180*1660*60*6180*180*1680*80*10280*124*10.5280*86*11.5
Q35Y-357060*60200*200*1860*60*6200*200*1880*80*10300*130*13300*89*11.5

NOTES:Thanks for your checking our machine tool.To give you a detailed quote,please choose your model in the specification chart,or tell me the max thickness,length,control demand
We will reply within 12 hours.

Contact us:
Phone number: 86 15156107235
