| Prod Model: |
Q37 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Use: |
Burnishing |
| Industry Used: |
Electronic Industry |
| Material: |
Metal / Coil |
| Power(W): |
78.4 Kw |
| Dimension(L*W*H): |
2200*1560*2860 Mm |
| After-Sales Service Provided: |
Engineers Available to Service Machinery Overseas |
| No Pit: |
Compact Strcture |
| Advantage: |
Precision Higher, Service-Life Longer, Efficiency |
| Machine Type: |
Abrator |
| Clean Type: |
Clean-in-Place (CIP) |
| Certification: |
CE, ISO |
Product Description
Specifications
1.advanced design
2.single and double hook
3.small energy consumption
4.high efficency
5 pass CE and ISO

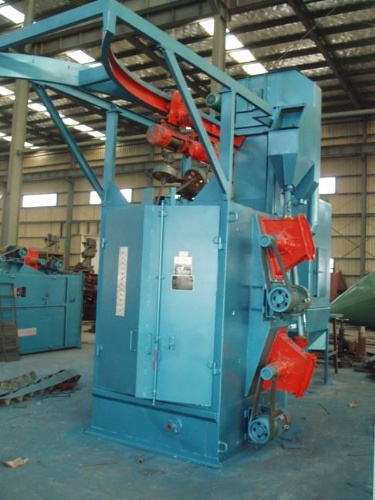

Q3750 lifting hook centrifugal shot blasting machine
This series for hook type shot blasting cleaning machine, is mainly used for casting, structural, non-ferrcus alloy parts and other parts of the surface cleaning, shot blasting cleaning machine of this series at a single hook, double hook-type, lifting or not, lifting style and many other models. It has the advantages of not pit, compact structure, and high productivity.
Q3730 hook shot blasting machine, can deal with workpiece dia is: 1800mm, height is: 2500mm. It has single and double hook models.
project
| Unit
| Q376
| Q378
| Q3710
| Q3720
| Q3730
| Q3750
| Q3780
|
workpiece diameter
| mm
| Ø600
| Ø800
|
Ø800
| Ø1400
| Ø1600
| Ø1800
| Ø2000
|
workpiece height
| mm
| 1100
| 1500
| 1850
| 2300
| 2200
| 2500
| 3000
|
Single hook hoists
| kg
| 600
| 1000
| 1000
| 2000
| 3000
| 5000
| 8000
|
Shot capacity
| kg/min
| 120*2
| 160*2
| 250*2
| 250*3
| 250*3
| 250*4
| 250*4
|
Time spent for a hook
| min
| 16
| 14
| 14
| 14
| 14
|
|
|
Lifting capacity
| t/h
| 15
| 20
| 30
| 45
| 45
| 60
| 60
|
Separator volume
| t/h
| 15
| 20
| 30
| 45
| 45
| 60
| 60
|
Ventilation
| m3/h
| 2800
| 8300
| 9000
| 15000
| 15000
| 18000
| 18000
|
Power (without dust)
| kw
| 22
| 30
| 36.55
| 61.27
| 64.4
| 78.4
| 81.5
|
