| Prod Model: |
WF-JF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Technics: |
Casting |
| Place Of Orgin: |
Shandong,China |
| Supply: |
Drawing Design |
| Unique: |
China Gold Supplier |
| Standard Or Nonstandard: |
Nonstandard |
| Production Process: |
Forging and Machining |
| Delivery: |
Within 20 Work Days After Prepayment |
| Shipping Port: |
Qingdao Port |
| Size And Design: |
as Per Customers Requirement or Sample |
| Type: |
Clay Dry Sand |
| Application: |
Fitness Equipment |
Product Description

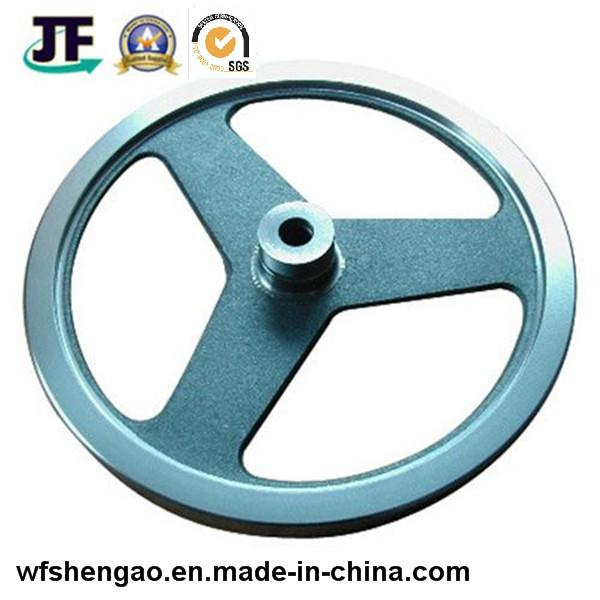

QT600-3 Magnetic Spinning Bike Flywheel by Sand Casting
1. ISO9001:2000 certification
2.TUV (PED 97/23/EC & AD2000 aa W0/TRD 100) certification
3.Professional OEM manufacturer
ISO9001, 2000 Certificate
OEM is acceptable.
Good quality and low price
Contace us without hesitation
1. ISO9001-2008.
2. Has advanced euipment and over 15 years experience.
3. Price: Competetive price, Precision made. Experience & Reasonable QC that you can reply on.
4. Process: Precision made. Experience & Reasonable QC that you can reply on Each part would be given 100% test and tryout before shipment.
5. Adequate supply capacity. Punctual delivery time.
Company Profile:
We mainly undertake the casting parts, machined parts and other products. Our Import and Export Department have many years experiences of foreign trade, products are mainly exported to the United States, Denmark, Italy, Russia, Australia etc.
Characteristics of our Flywheel:
1. Material: Cast gray iron, ductile iron.
2. Shape: Round, square, rectangle and triangle.
3. Diameter: From 200mm to 1200mm.
4. Weight: From 7kg to 154kg or according to customers\' requirment
5. Packing: In wooden pallet with plastic layer
6. Annual output: 10, 000 tons
7. Coating: Black bitumen or Coating as per customers\' requirement
8. Use: Municipal engineering, Traffic, pavement, electronics, telecom, cable, petroleum, chemical industry, or drainage system and industrial facilities of valve well.
Folding note:
(1) Check the flywheel housing close to the hole cover, gasket and plug cleanliness and defects.
(2) close to the hole plate mounted on the flywheel housing timing hole, part number facing outward. Holes on the cover and flywheel housing screw holes. Hand to self-tapping screws into the flywheel housing until tight, which put a screw P-type card sets, P-type card sets the direction set in the 2:00 hour position. Tapping screw tightening torque (24 ± 3) N · m.
(3) In the o-ring plus a small amount of lubricating oil 15M40. The clogged pores o-ring into the light. The blockage with a rubber hammer into the aperture.
Tightening torque
(4) Electromagnetic tachometer sensor is (45 ± 4) N · m.
(5) flywheel housing bolt tightening torque (60 ± 6) N · m.
(6) To check the plane and the runout of the flywheel housing bore runout. In a circle reading should not exceed the total 0.20mm. If more than 0.20mm, to adjust and replace the flywheel housing.
(7) Flywheel tightening torque (137 ± 7) N · m. It must be installed when loading washer flywheel bolts. Tighten bolts should be cross tightened.
| name | QT600-3 Magnetic Spinning Bike Flywheel by Sand Casting |
| material | ductile iron GGG50/7, gray iron |
| standard | EN124/1433/1563 |
| class | A15,B125,C250,D400,E600,F900 |
| shape | Round |
| Size | 600*600,840*840, 850*850 or as per customers' drawing |
| paint | bituminous black |
| advantage | Non-slip and safe, easy installation, easy to clean, excellent anti-pressure and attractive appearance |
| molding | DISA Line |
| process | Drawing-mould making-raw casting-sand blasting-rough machining-surface treatment-product inspection |
| application | footway, pedestrians, car parks, aircraft pavements |
| certificate | BSI, ISO9001:2000 |
| Strict quality control | Tensile strength: 500Mpa Yield stress : 320Mpa
Elongation rate : 7%
Hardness: HBS170-230
|
| Main products | Manhole covers and grates, Furnace, bases, Machinery parts, cookers, Valve bodies, pipe fittings, Auto parts |
| other information | we can cast and process any type of iron casting products according to customers' drawing or samples |
Q: Why choose Shengao product?
A: We shengao have our own plant-- Weifang Shengao machinery Co., Ltd, therefore, we can surely promise the quality of every product and provide you comparable price.
Q: Do you provide OEM Service?
A: Yes, we provide OEM Service.
Q: Do you provide customized casting products?
A: Yes. Customers give us drawings and specifications, and we will manufact accordingly.
Q: What is your payment term?
A: We provide kinds of payment terms such as L/C, T/T, Paypal, Escrow, etc.
