Quick Release II Pto Shaft
| Price: |
US $ 80/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
05.05B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Tube Profile: |
Triangle/Lemon |
| Color: |
Black/Yellow/Red |
| Trctory Output Rpm: |
540rpm/1000rpm |
Product Description
1. IntroductionSize 1-3 Shaft Used on small timber winches and centrifugal fertilizer spreaders. Rated for 16 hp at 540 rpm; 25 hp at 1000 rpm.
Size 4-5 Shaft Used on medium tractor winches, small wood chippers, small rotor tillers and some hay rakes. Rated for 35 hp at 540 rpm; 55 hp at 1000 rpm.
Size 6 Shaft Used on large logging winches, medium wood chippers, mowers, snow blowers, and rotor tillers. Rated for 62 hp at 540 rpm; 98 hp at 1000 rpm.
Size 7-SLC Shaft 75 - 115 hp
Size 8 Shaft Used on forestry mowers and large snow blowers. Rated for 91 hp at 540 rpm; 145 hp at 1000 rpm.

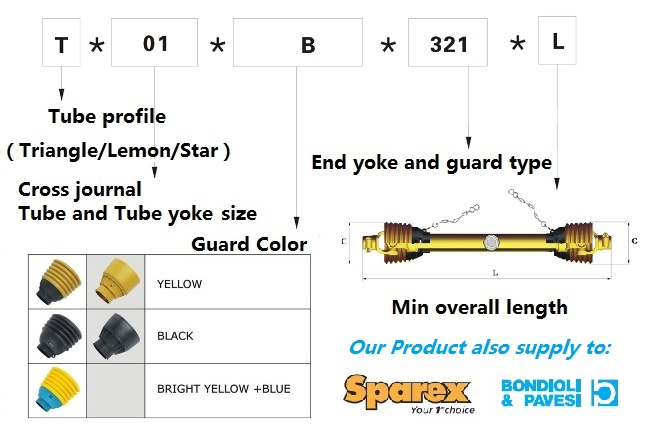

2. Product Code

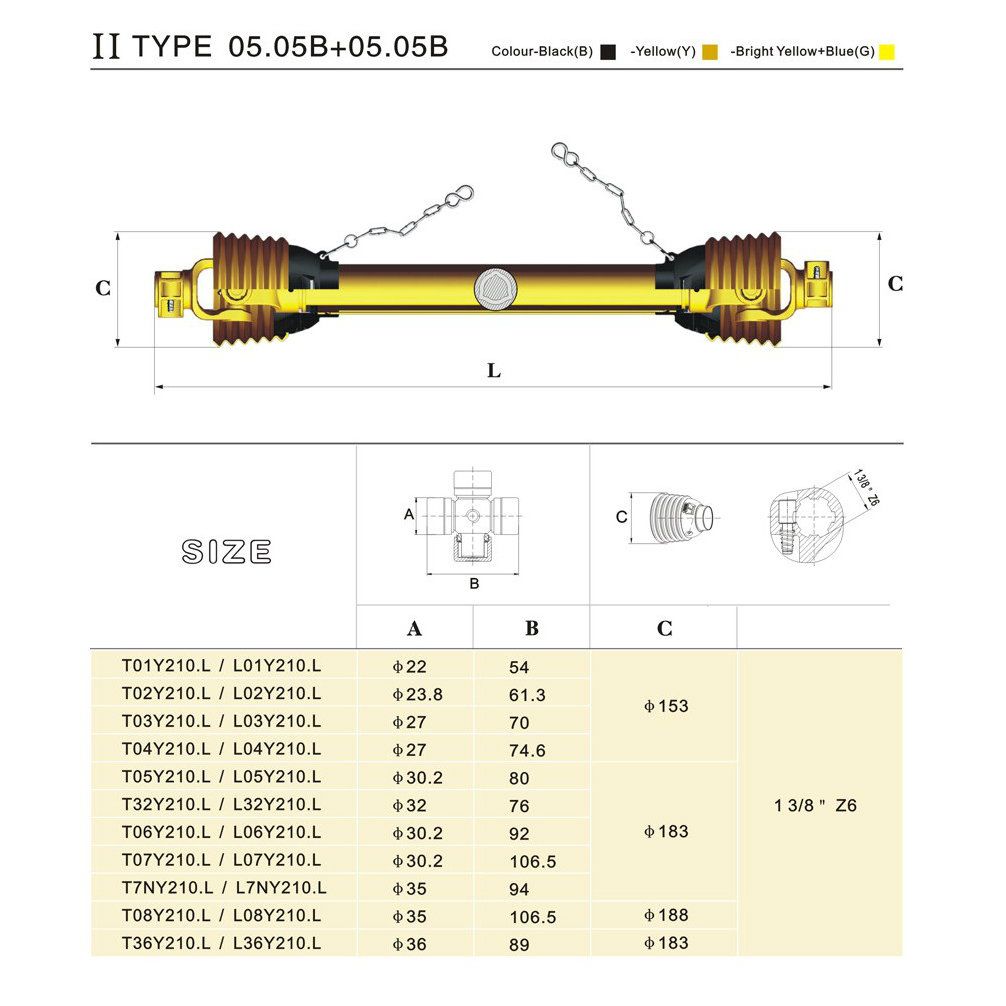

3. Product Information
| Series | Length (L) | Tractor | Implement | Part# | Typical Use | |
| 4 | 33" | 1 3/8" 6 spline | 1 3/8" 6 sp FF1 CL | CS42516 | Rotary Tiller |
|
| 4 | 45" | 1 3/8" 6 spline | 1 3/8" 6 sp FF1 CL | CS43516 | Rotary Tiller |
|
| 5 | 45" | 1 3/8" 6 spline | 1 3/8" 21 sp FF1 CL | CS54816 | 5'-7' Rotary Mower |
|
| 5 | 58" | 1 3/8" 6 spline | 1 3/8" RB w/FF1 CL | CS53516RB | 5'-7' Rotary Mower |
|
| 5 | 45" | 1 3/8" 6 spline | 1 3/8" 6 sp FF1 CL | CS53516 | 5'-7' Rotary Mower |
|
| 6 | 54" | 1 3/8" 6 spline | 1 3/8" 6 sp FF2 CL | CS64416 | 7'-8' Rotary Mower |
|
| 6 | 58" | 1 3/8" 6 spline | 1 3/4" 20 sp FF2 CL | CS64816 | 7'-8' Rotary Mower |
4. Application GuideThe following chart gives you the industry standard for PTO driveline horsepower ratings. Please keep in mind these are rated horsepower at the PTO, not engine horsepower. Many times the difference between engine horsepower and PTO horsepower can vary as much as 10%. These values give the maximum recommended horsepower that can be transferred through the driveline from the tractor to the implement.| Series | Rating @ 540rpm | Rating @ 1000rpm |
| 1 | 16 | 24 |
| 2 | 21 | 32 |
| 3 | 30 | 47 |
| 4 | 35 | 54 |
| 5 | 47 | 72 |
| 6 | 62 | 98 |
| 7 | 74 | 114 |
| 8 | 91 | 145 |
| 9 | 141 | 225 |
If you are not sure how far you can safely extend a driveline, the following chart give the recommended maximum extension available on each series of shaft with a minimum collapsed length listed. In most cases, it is recommended that the driveline does not extend 1/2 of its' collapsed length. This means the driveline tubes should overlap at least 1/2 for safe operation at all speeds.
| Minimum Collapsed Length (L) |
| 28" | 31" | 35" | 39" | 43" | 47" | 51" | 55" | 59" |
| Series | Maximum Extended Length (L) |
| 1 | 35" | 41" | 47" | 53" | 59" | 64" | 71" | 77" | 83" |
| 2 | 35" | 41" | 47" | 53" | 59" | 64" | 71" | 77" | 83" |
| 3 | 35" | 41" | 47" | 53" | 59" | 64" | 71" | 77" | 83" |
| 4 | 35" | 41" | 47" | 53" | 59" | 64" | 71" | 77" | 83" |
| 5 | 34" | 40" | 46" | 52" | 58" | 63" | 70" | 76" | 82" |
| 6 | 34" | 40" | 46" | 52" | 58" | 63" | 70" | 76" | 82" |
| 7 | 34" | 40" | 46" | 52" | 58" | 63" | 70" | 76" | 82" |
| 8 | 34" | 40" | 46" | 52" | 58" | 63" | 70" | 76" | 82" |
| 9 | 33" | 39" | 45" | 51" | 57" | 62" | 69" | 75" | 81" |
