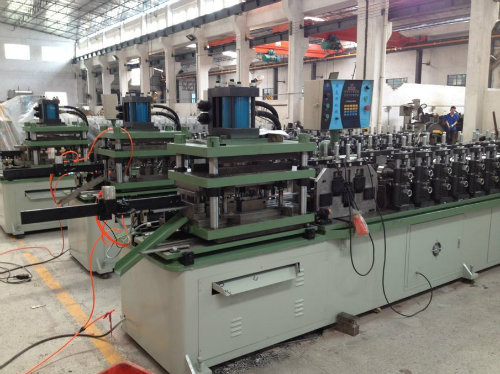

Rail Forming Machine with High Precision

Rail Forming Machine with High Precision
Price: US $ 20000/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 1set
Pay Type: L/C,T/T,Paypal
Prod Model: 42mm telescopic drawer slide
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 4850*800*1200mm
Power: 380V,Three-Phase,50Hz
Total Power: 11kw
Punching Size: 250-600mm
Forging Forming Method: Mold Forging

Product Description


Place of Origin: Guangdong, China (Mainland)
Brand Name: LYB
Model Number: Roller machine
Machine Type: Roll Forming Machine
Raw Material: Sheet / Plate Rolling
Material / Metal Processed: Stainless Steel
Power: Hydraulic
Automation: Automatic
Extra Services: Piercing & Punching
Certification: CE
Material: Metal
Usage: Ball bearing slides moulding by rolling
Electromotor Power: 11KW
Power: 380V, Three-phase, Frequency 50Hz
Contour dimension: 10700*900*800(mm)
Weight: 3(t)

Packaging & Delivery
Packaging Details: Fit for ocean ship
Delivery Detail: Within 90 working days
Specifications
1. Rail forming machine;
2. Drawer Slide Machine;
3. Production Equipment;
4. Heavy Duty Frame;
5. Low Mainten

Rail forming machine to produce thick metal profile in 1.5-2.5mm with independent standing side plate

Metal roll forming machine
SpecificationconfigurationTechnical parameterIllustration

1,motor power380V 1.5kw

2,Loading capacity2 tons
Standing raw material stacker3,max outer diameter1300mm

4,max inner diameter



500mm

5,Material of stackersteel sheet Jointed

6,Max width200mm

7,Expanding termManual

8,Expanding range430-550mm

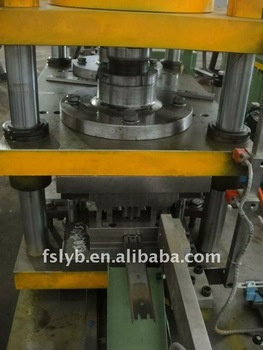

High speed punched device1,Hydraulic pressure30 tons
2,Punched speed60-120 times/minute
3, Motor power380V 4kw
4, Max width200mm
5, Feeding modeRoller
6, Feeding motorservo motor
7, Feeding accuracy±0.05mm

1,Motor power380V 5.5kw

2,RoCr12



ller material
Molding machine3,Thickness of roller assembled plate22-25mm

4,Reducer3#Cycloidal-pin

5,Material of frame10# channel steel

6,Molding process16x2 processes



(twins design)

7,diameter of shaft48mm

8,TransmissionGear
Cutting1,Cutting termsHydraulic
2,Material of cutting bladeCr12 MOV
3,Cutting waysMoved cutting in 45º
4,Tolerance+0mm  -0.3mm
Holding1,Length3M

2,Working termsManual
Device3,Length controlledElectric box
controlling systemFull automatic PLC controlling system
Dimension of molding machine4.5 *0.7 *0.7m(L*W*H)
Rough weight2 tons
Producing Speed7-12 m/minute
Lead-time60 days




Lianyoubang Machinery Factory is a professional machinery factory engaged in the manufacture of fully automated and high-precision cold rolling molding equipments and various copper, aluminum and stainless steel sheet molding machinery, with a number of technicians of nearly 10 years of working experience. The factory has developed the slide series of machinery as follows: fully automated sliding equipment and sliding beads-loading machine, slide automated oiling machine, ball slide rail machine, semi-automated beads-loading machine, beads forming machine, slide rail testing machine, assembly production line and slide beat detector, etc.
The times, technology and market endows Lianyoubang Machinery Factory with broad space for development, the factory survives and develops with first-class quality, credibility, timely delivery and considerate services. We sincerely hope that the factory can expand the market and create more economic benefits for you.
Lianyoubang Machinery Factory insists on the purpose of "To seek development and credibility with quality". The factory dedicates to provides domestic and foreign businessmen, old and new customers with high quality products and first-class social services, so as to achieve the pursuit for satisfaction of every customer.
The company would like to cooperated with the colleagues of the industry together to created a more brilliant future in the new century.
