| Prod Model: |
cmtl |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Used For: |
CCM |
| Grade: |
Tp2, Cu-AG, Cu-Cr-Zr |
| Hardness: |
80-100hb |
| Material: |
Copper |
| Application: |
CCM |
Product Description

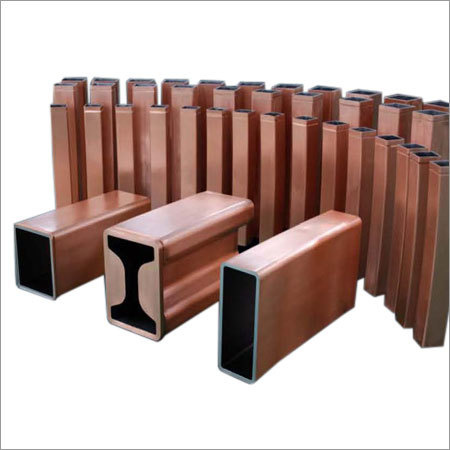

Rectangular Slab Crystallizer Copper Tube, copper mould tube, Rectangular Copper Mould Tube
China copper mould tube for CCM, We professional in design and produce billet CCM(continuous casting machine)
Strand from1-8
Copper mould tubes:
(1) Billet copper mould tube(60x60mm-650x650mm)
60x60, 90x90, 100x100, 110x110, 120x120, 130x130, 140x140, 150x150, 160x160, 200x200, etc.
(2) Rectangular copper mould tube: 135x430 to 365x600mm
135x430, 150x180, 150x220, 130x240, 160x200, 365x600 etc.
(3) Round copper mould: (Dia 80-900mm )Dia 80 160, 210, 270, 300 etc.
Design: Single taper, double taper, multi-taper, parabolic, double parabolic etc.
Copper mould plate: CSP plate, Ftsc plate, Beam blank and build-up plate and its maintenance
Specification: From 10mmx850mm to 3600mm x1000mm
Thickness: 40mm-55mm
Material: SF-CU,CuAg, CuCrZr Coating: Nico, Alloy coating, Cermic coating.
Mould assembly: 120x120, 260x300, 180x400, 60x300, 120x120, dia 270 etc.
D. Z. H. -the most professional and reliable supplier of copper mould tube for continuous casting machine which has exported copper mould tubes for 10 years.
Copper mould tube manufacturers, copper mould tube suppliers, D. Z. H.
|
Speccification |
|
Types |
Size |
Camber Radius |
Thickness |
Length |
|
Square tubes |
50x50 – 500x500 |
4000-17000 |
6-50 |
700-1000 |
|
Rectangular Tubes |
100x340-500x650 |
4000-17000 |
6-50 |
700-1000 |
|
Round Tubes |
110-1200 |
5000-17000 |
10-50 |
700-1000 |
|
H-Beam Tubes |
70x50-120x520 |
6000-17000 |
12-50 |
780-1016 |
|
Non-standard tubes |
70x50-120x520 |
6000-17000 |
12-50 |
780-1016 |
