| Prod Model: |
HB112 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Using Purpose: |
for Kiln |
| Advantage: |
Heat Resistance |
| Temperature: |
1100c |
| Type2: |
UF16 |
| Color: |
White |
| Refractoriness (',℃): |
1580< Refractoriness< 1770 |
| Feature: |
Instant Materials |
| Type: |
Refractory Material |
| Shape: |
Pipe |
| Material: |
Cordierite Ceramic |

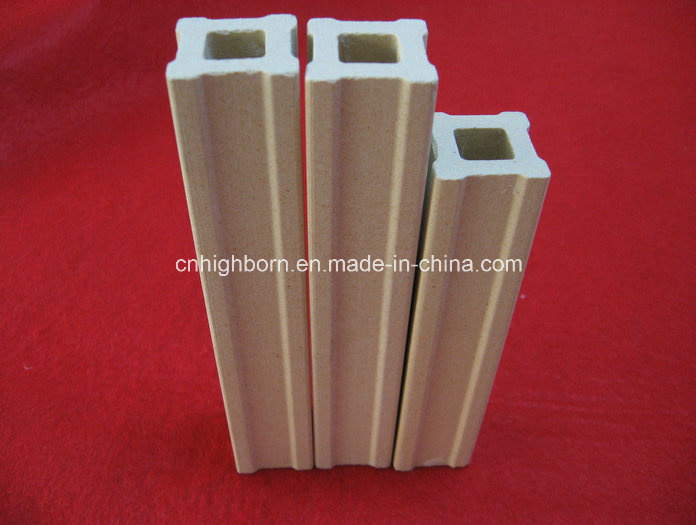

Product Description
Cordierite Insulator& Cordierite Ceramic& Cordierite
Cordierite is a ceramic used in heat shock applications that would crack and shatter most other ceramic materials.
Kiln furniture is made of cordierite because it will survive thousands of heating and cooling cycles.
At Paratech all of our production is placed in cordierite trays known as saggers to be used in the kiln during the firing cycle.
Small cordierite parts can be dry powder pressed. Large cordierite pieces are formed by slip casting.
Slip casting is a process where the ceramic material is mixed with water and poured into a plaster mold. After a few hours the plaster draws off the water from the mix and the sagger or other shape can be released from the mold. Parts are then dried and fired.
Features:
1) Material: cordierite
2) Applications: used in all electric resistance pipe and heating bracket
3) Low water absorption and good heating insulation
4) A variety of specifications available
5) Performance: insulation and high temperature resistance, low water absorption and good heating insulation
6) Texture: glass-ceramic cordieritePacking: Standard exported paper cartons with zipper bags and foam boards
Item |
Test Condition |
Unit&Symbol |
Cordierite ceramics |
The main chemical ingredient |
|
|
2MgO 2Al2O3 5SiO2 |
Bulk Density |
|
gm/cc |
2.5 |
Maximum Use Temperature |
|
|
1000°C |
Water absorption |
|
% |
0 |
Hardness |
|
HV |
800 |
Bending Strength |
20° C |
Kgf/cm2 |
900 |
Compressive Strength |
20° C |
Kgf/cm2 |
3500 |
Fracture Toughness |
K(I c) |
Map.m3/2 |
- |
Coefficient of
thermal expansion |
|
1X 10-6/°C |
≤2.0 |
Coefficient of
thermal conductivity |
25° C-30° C |
W/m °K |
1.3- |
Thermal Shock Resistance |
Tc |
°C |
250 |
Dielectricity constant |
1MHz.25°C |
|
6 |
Dielectric strength |
|
ac-kV/mm (ac V/mil) |
10 |
Volume Resistivity |
20°C |
ohm-cm |
> 1012 |
HIGHBORN is one of the leading high quality quartz glass and precise ceramics manufacturer and supplier in China.
HIGHBORN has always been a defining force in the sale and fabrication of quartz glass within the semi-conductor, chemical, solar Energy and precise ceramics within semi-conductor, solar energy, textile, electronic, and laser industries.
Not only have we mastered the fabrication technology, our strength has always been based around listening to and understanding our customer's requirements and expectations.
Continuous improvement in all areas of our business is key to our grouth. What is equally important to us is maintaining in business, our inherent family values of trust, faimess and respect to our employees, suppliers and customers.
