| Prod Model: |
RH |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Measurement Range: |
25-7600mm |
| Output Signal: |
24, 25, 26 Binary Digit or Gray Code |
| Electrical Protection: |
IP67 |
| Certification: |
CE,RoHS,ISO9001 |
Product Description

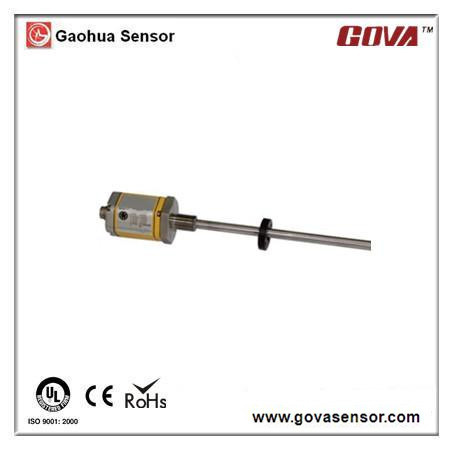

RH Linear Position SensorFeatureRH series linear position sensor which are of circule tube and pressure-resistantance, are applicable to the built-in installation of hydraulic oil cylinder. The features: Anti-interference ability, good environmental tolerance, neverwear, high precision, superior resolution, replacement by convenience, online intelligent diagnosis and other special advantages;
Analog outputs includee: DC current 4 ~ 20 mA (forward, reverse) and DC voltage 0 ~ 10 V (forward, reverse); SSI outputs includee: 24, 25, 26 bit binary or gray code; Measuring start-stop points can be adjusted in full range, the products can be widely used in metallurgy (continuous casting and rolling), petrochemical, port machinery, hydraulic pressure tester, water conservancy and electricity, etc.
Nanjing Gaohua Technology Co., Ltd is located in Nanjing, Jiangsu Province, China and built in 2000, which is an ISO9001: 2008, CE and RoHS qualified OEM SENSOR-manufacturer and professional exporter (exporting to more than 20 countries). Our present workshop covers about 4000 square meters, meanwhile we have our own advanced sensor-developing center, production center, purification center, testing center and metal processing center.
We have own patents of key technology and concentrates on pressure sensors R&D, producing variety of sensors/ transducers/ transmitters (such as pressure, temperature, humidity, Acceleration, Angle, Position, Level etc. ).
With reliable quality and reasonable price, our products are widely used in the process measurement &control of Engineering machinery/ Automotive/ Medical/ Rail transit/ Mine/ Ship/ Internet industry etc.
For important projects which refer to various sensors, we offer one-stop service including customized sensors, standard production and agent procurement.
