| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Ridge Cap Roll Forming Machine |
Product Description

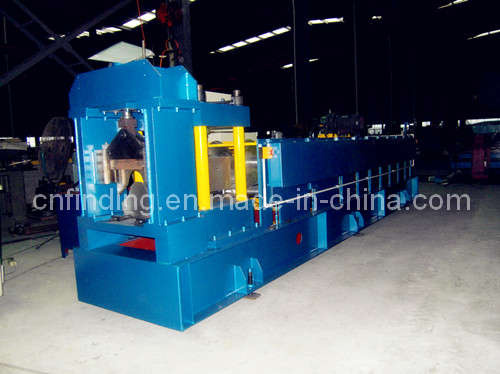

Our product: Ridge cap panel forming machine, ridge cap forming machine, ridge cap roll forming machine.
Product Feature:
It is used to make ridge cap for roofing tile.
Main technical parameters:
1. Suitable material: Color steel sheet
2. Thickness of raw material: 0.5-0.6mm
3. Yield strength of material: 235Mpa
4. Working speed: About 1500-2000mm/min
5. Step distance: Adjustable according to requirement(≥ 250mm)
6. Power requirement Main motor power 5.5Kw(depend on final design)
Hydraulic station power 2.2Kw(depend on final design)
7. Controlling system: Mitsubishi PLC&converter.
Hangzhou Finding Co., Ltd, is a Group company, we have our own factory to make steel roll forming machine, such as tile forming machine, corrugated steel sheet forming machine, c or z purline machine, floor decking sheet forming machine, sandwich panel machine line, cut to length machine line, shutter door forming machine, embossing machine, etc.
Factory to make Steel coils( GI, PPGI, GL, PPGL )
Factory to make corrugated steel sheet
Factory to make EPS and PU sandwich panel
Factory to make solar cell and solar panel
Success of our company comes from success and development of our customers. We bear this in mind in the whole process from design, product research and development to after-sales service.
