Prod Model: |
SQ50D high quality pipe threader |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Place Of Origin: |
Zhejiang China (Mainland) |
Rated Voltage: |
220V/110V |
Frequency: |
50Hz-60Hz |
Rated Input Power: |
1500W |
No-Load Speed: |
38rpm |
Applicable Pipe Thread: |
BSPT, NPT, ISO (M12-M52 |
Dimensions: |
100*52*47 Cm |
Die Head: |
Quick Open or Automatic |
Standard Dies: |
HSS 1/2"-2" BSPT or NPT |
Weight: |
G.W/N.W: 98/ 80kg |
Product Description

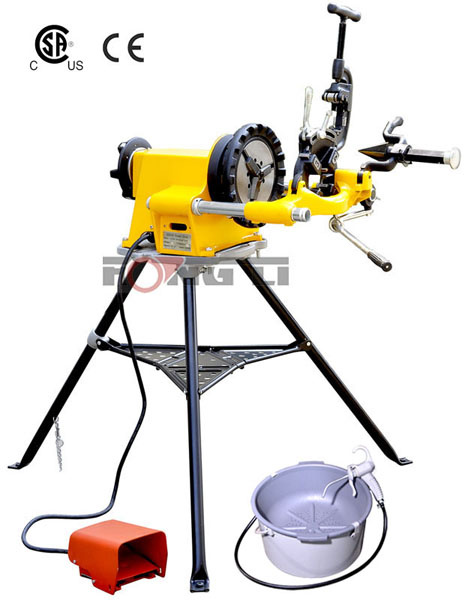

SQ50D heavy duty 2" electric pipe threading machine BSPT/ NPT/ BSPP
Features:

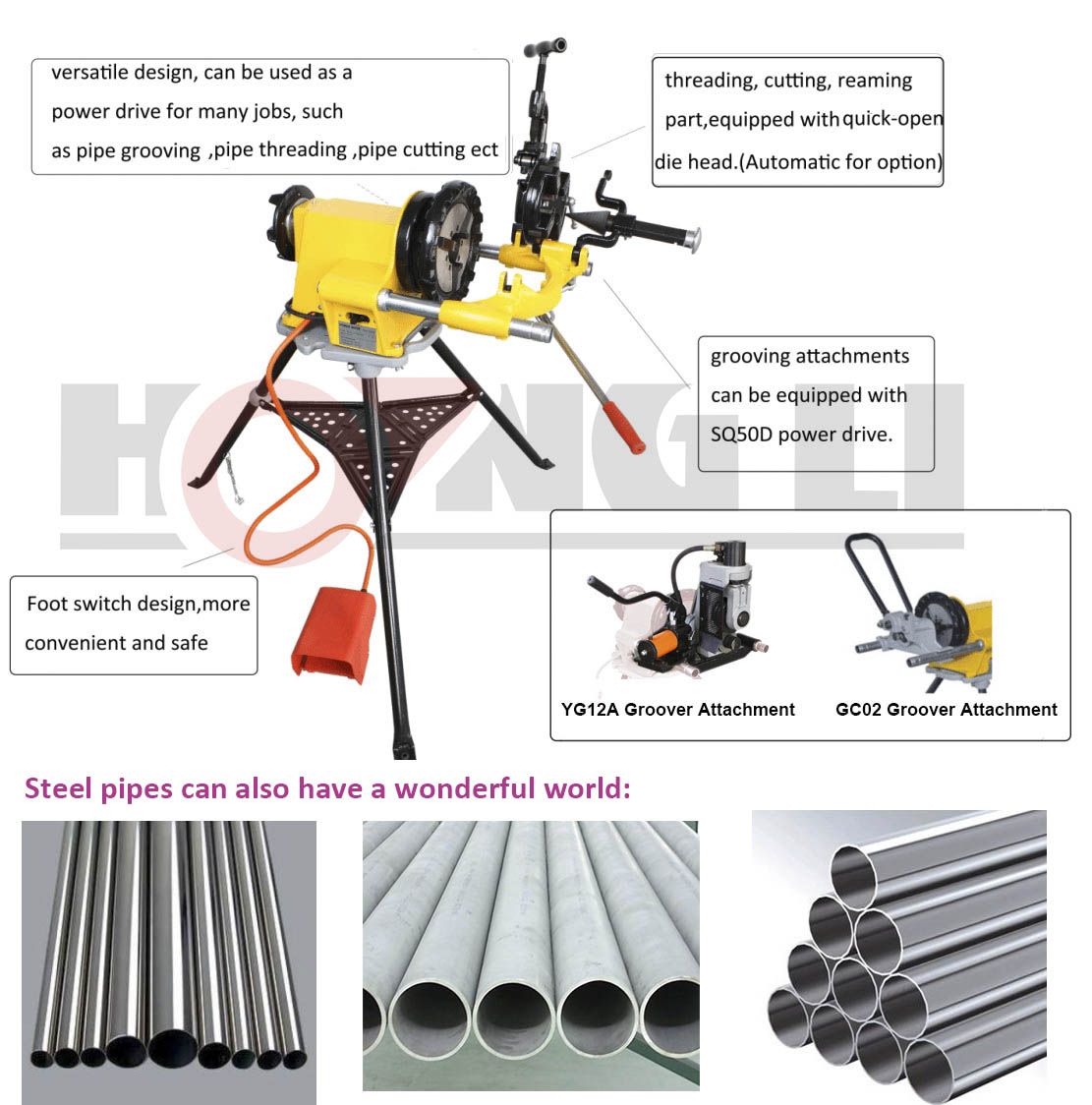

- Versatile design, can be used as a power drive for many jobs, such as pipe grooving
- Motor:1500W universal type, 115V or 220V, 50-60Hz
- Speed:38 RPM
- Casting:Alluminum
- Capacity:1/2"-2" BSPT or NPT
*ISO threads (Metric) M12-M52 (need additional die head)
- Die head:Automatic or quick-open type
- Seperate oiler
We are developing all kinds of threading machine .In order to make our machines meet the requirements from different counties
Some spare parts of our machine can interchange with that of RIDGID, ROTHENBERGER, REX, ASADA , REMS, EGAMASTER tools.
Standard equipment:
Power drive 1 pc
Carriage assembly 1 pc
Die head 811A (NPT or BSPT) 1 pcDies 1/2"-3/4" (NPT or BSPT, HSS) 1 setDies 1"-2" (NPT or BSPT, HSS) 1 setPipe cutter assembly 1 pcPipe reamer assembly 1 pcTripod stand 1 pcFoot switch pedal 1 pcOil bucket 1 pcOur big families :
Hongli is a company that brings together technology and engineering to provide innovative solutions for our customers in the range of pipe machinery.Hangzhou Guanba Machinery Import & Export Co., Ltd is our sister company.Our priorityis to design, produce and deliver products and solutions that make your job been done easily.
Our company has been in business since 1986.We have grown to become one of leading manufacturing companies in China with many customers around the globe.Today, we are committed to helping our customers succeed and building long-term value in the global market.
After-sale services
1)the warranty of the main parts for 1 year.
2)the training to our machine with specifications and videos.
3)the continuous supply to the spare parts of our machine.
Please feel free to contact us!
Website:Www.Pipetool.Com.Cn
Name:Sarah
Tel:0086-86260602
Mobile:0086-13958033942
Ordering information: |
Cat no. | Model no. | Description | Weight |
42020 | SQ50D | Complete threader set 220V,50HZ ,BSPT | 80KG |
42010 | SQ50D | Complete threader set 110V,60HZ ,NPT | 80KG |
42021 | SQ50D PD | Power drive,220V,50HZ | 35KG |
42011 | SQ50D PD | Power drive,110V,60HZ | 35KG |
Accessories:Cat no. | Model no. | Description | Weight |
47400 |
| Die head 1/2"-2",Automatic | 6KG |
42400 |
| Die head 1/2"-2",quick-open | 6KG |
|
| Nipple chuck, BSPT | 4.8KG |
|
| Nipple chuck, NPT | 4.8KG |
|
| Cutter complete | 4KG |
|
| Reamer complete | 3KG |
Dies set:
Cat no. | Size | Material | Weight |
| 1/4"-3/8" BSPT(optional) | HSS | 0.75KG |
24051 | 1/2"-3/4" BSPT | HSS | 0.75KG |
24053 | 1"-2" BSPT | HSS | 0.75KG |
| 1/4"-3/8" NPT(optional) | HSS | 0.75KG |
21051 | 1/2"-3/4" NPT | HSS | 0.75KG |
21053 | 1"-2" NPT | HSS | 0.75KG |
| 1"-2"BSPP | HSS | 0.75KG |
Packing and shipping:
Payment | Payment Term | T/T L/C Western Union Paypal(etc) |
Shipping | Delivery Time | 7-30 days |
Shipping Method | By Courier such as Fedex, TNT, DHL etc By sea or air freight according to your request |
Port | Shanghai/Ningbo/Other port |
Shipment Term | FOB/CIF/CFR/EXW |
Packing | NW | 98 kg |
GW | 80 kg |
Dimension | 100*52*47 cm |
Material | Plywood case |
Our company has been in business since 1986. We have grown to become one of leading manufacturing companies in China with many customers around the globe.
Our BSQT consists of HONGLI and HUAXING. They share clear labor work in our research and manufacture. We have our own brand HUWANG in China.
For more than 20 years of efforts and strive, our HUWANG brand is really famous in our home China. Today, we are committed to helping our customers succeed and building long-term value in the global market.
We HONGLI, have a lot of trading companies selling goods for us. Right now, we are spreading our business products, producing lines and QC teams. We also want to be rank top in the whole world.
Last year, we set up our own trading company GUANBA. We HONGLI, HUAXING working together with GUANBA to promote Chinese Made Pipe Machinery to the globe.
We HONGLI, aims to make the same quality products with famous brands RIDGID, ROTHENBERGER, REX, ASADA and so on. And we also do OEM spares or tool parts for the users of the above brands.
We, HONGLI, aims to show you our best quality, best service and of course best prices!
You can surely trust us!
