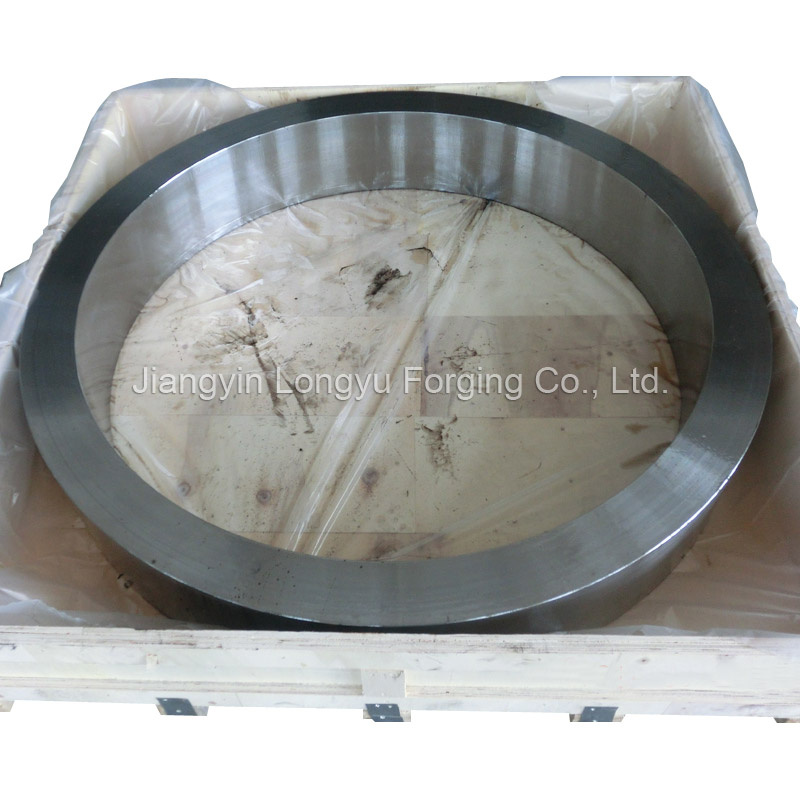

Ring Forging 071

Ring Forging 071
Price: Negotiable/Piece
Min Order: 1 /Piece

Product Description

Products: Free forging/Forged Open die

Material: Vacuum Degassed Ingot of Carbon Steel &Alloy steel & Stainless Steel

Forging Equipments:
1.8tons, 6tons Electrical Hydraulic Hammer
2.1ton, 750KGS, 560KGS, 200KGS air hammers

Heat treatment: Normalized/quench and temper/annealed/solution treatment

Machining Equipment:
1. Horizontal Turning Machine
2. Vertical Turning Machine
3. Milling Machine
4. Drilling Machie
5. CNC etc.

Quality System: ISO9001: 2008

Cetificate: PED 97/23/EC, ABS, BV, GL, DNV
Products  Type: Maximum  Diameter(mm) Max. length(mm) Maximum  weight(ton)
Ring 4900 400 35
Shaft 2000 8000 35
Block 3500 / 8
Hollows 1500 3000 8
Flange 4900 400 8
Round  bar 2000 8000 15
Unusualshapes 1500 400 8
Forging  Ratio: ≥ 3.5
Annual  Production  Ability: 28800  tons
QA  &   DOC: EN10228  3.1  Certificate, Chemical  Composition  Report,   MechanicalProperties  Report,   UT  Report  (according  to  EN10228-3,   SA388,   Sep1921  etc. )  Heat  Treatment  Report,   Dimensions  Check  Report
We are located in an industrial town -- Zhouzhuang Town, Jiangyin City, which belongs to the beautiful and fertile Yangtze River Delta. It is 18km away from Jiangyin City in the east, and 3km from Huaxi crossing of Riverside Highway in the north. Established in 1985 as a township enterprise, we became a private owned enterprise in 1997.

Our company currently covers an area of 25, 000 square meters, with a building area of about 10, 000 square meters. Our total capital reaches 80 million Yuan, including fixed assets of 30 million Yuan. We are equipped with a full set of flaw detection, and chemical testing equipment (an electro-hydraulic hammer of 8 tons, 2 air hammers of 1 ton, 3 air hammers of 750Kg, 1 air hammer of 560Kg, 1 air hammer of 150Kg); 10 saws; 3 heat treatment furnaces (75KW, 500KW, 580Kw), and 20 metal processing equipment (vertical lathe of 2.5 meters, sleeping car of 8 meters, sleeping car of 1.25 meters, various lathes, vertical drills, radial drills and other equipment).

We are a professional supplier of forging parts, and are able to produce forgeable pieces and flanges of various sizes. Our products are used in pressure vessels, mechanical manufacturing industry and other industries. We staff 108 employees, including 20% professional technical personnel, among whom 1 has senior professional title, 4 have medium-grade professional titles, and 3 have primary professional titles. We enjoy extensive experience in producing machinery forgings and we are well received by users with excellent after-sales services. Moreover, we were awarded the title of "Trusted Quality Enterprises". We are also a member of China Forging Industry Association, and have attained "Quality System Certification" and national "Pressure Pipeline Components Manufacturing Permit".

"Providing first class quality and first-rate service" and "Improving quality management system constantly to meet customers' needs" is our aim. In order to further enhance staff's awareness, we comprehensively regularize our quality system and always think about what users think.

Our company is willing to enhance sincere cooperation with all customers for mutual benefits. We look forward to your investigation and guidance.
