Riveter (TC series)

Riveter (TC series)
Price: Negotiable
Min Order: 1
Prod Model: TC series

Product Description

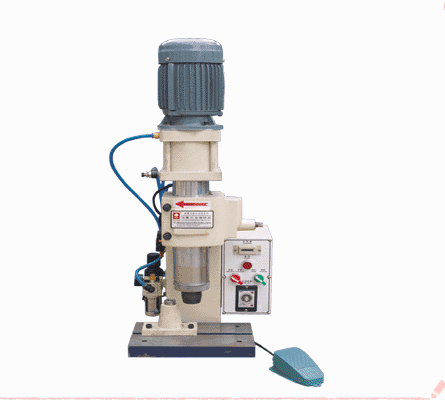

Air pressure rivet machine (Also oil press rivet machine is available)

Design is simple, strong, gravity is low, rigidity is strong. Shape is beautiful, no punching noise, no noise, no shock double break adjustment. Volume is small and no space will be occupired.

Low fault rate, almost no maintenance is required. Operation is simple and operation can be done with any experience. It is fast to change die and rivet capability is strong which is best suitable for mass production line.

Unique line design, continuous motion of rivet selection can be used. When using automatic operation, timer can be adjusted to the most suitable time to improve production efficiency and reduce loss of labor.

Mode: TC-136 TC-141 TC-143 TC-152 TC-155
Motor(oil pump motor): 1/2HP 1/2HP 1HP 1*2HP 2*3HP
Main shaft stroke: 35mm 40mm 40mm 40mm 40mm
Rivet capability: 0.5-4 1-7 2-9 3-12 1-25
Soft steel hollow: 1-8 1-15 1-20 1-25 1-40
Time adjustment(seconds): 0.5-10 0.5-10 0.5-10 0.5-10 0.5-10
Pressure used: 1-7 2-7 3-7 20-70 20-100
Maximum pressure: 70-700 230-800 460-1000 430-1650 1400-5500
Machine height(adjustable): 790-890 940-1050 1150-1220 1600 2000
Rivet length(adjustable): 100 150 200 230 300
Throat depth: 105 120 125 195 200
Rotate speed from rivet heat: 1400 1400 1400 1400 1400
Maximum working station: 180*250 190*320 190*320 15*320 17*250
Weight(kg): 80 120 170 350 400
Changzhou Giant Machinery Co., Ltd., is a press peripheral equipment manufacturer in China, and we have tens of years experience in making such equipments.

We will always provide you with best products and service. Your inquirement is much appreciated. It is so nice to get your call, and it is also our hornor to serve for you.
