| Prod Model: |
YT28 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin: |
China |
| Model Number: |
Yt28 |
| Type: |
Rock Drill Spare Parts |
| Machine Type: |
Drilling Equipment |
| Material: |
Carbon Steel |
| Processing Type: |
Forging |
| Use: |
Ore Mining |
Product Description
The pneumatic rock drill are mainly used in construction sites, various types of mines, railways, water conservancy construction and national defense construction areas for drilling operations.

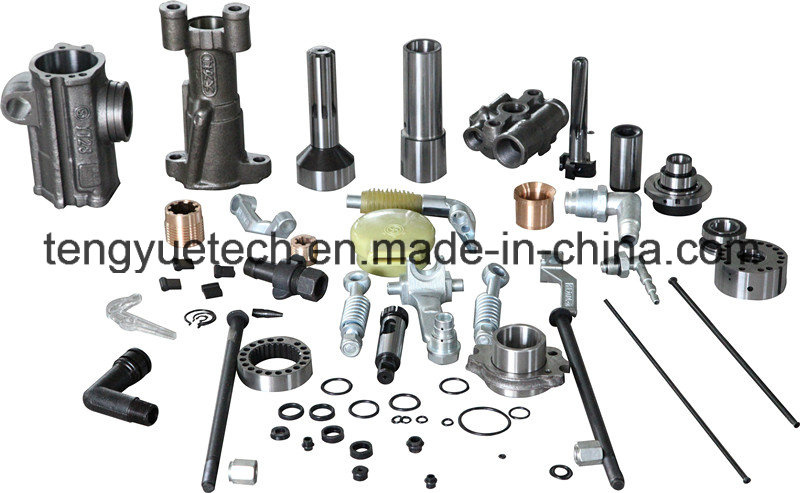

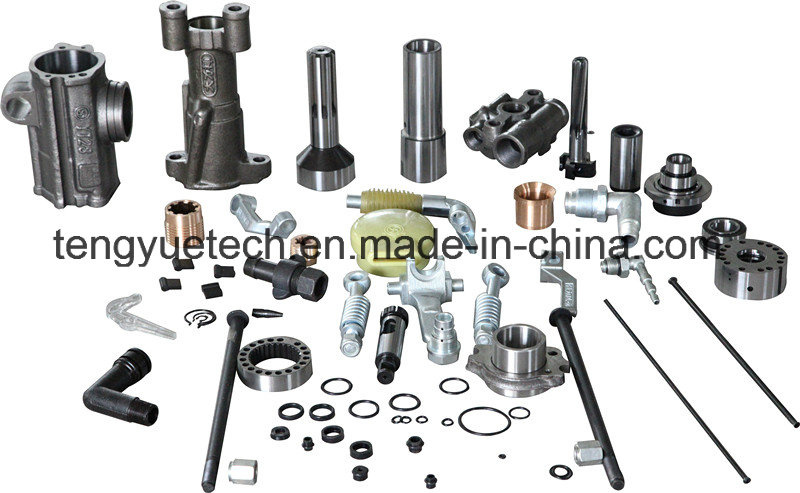

YT28 rock drill spare parts:
rock drill tools: ratchet, valve chest, valve, valve cover, setting pin, ratchet pawl, gun nut, gun bar, piston, cylinder, guide sleeve, muffle, crowned spring, hoop, front head, rotational sleeve, shank sleeve, yoke bolt, yoke, yoke spring, spring pad, hex.locking nut, spring ring, side bolt, control valve, water tube, air tube, small seal sleeve, back head, side bolt nut, retaining ring, trigger, change-over valve, control handle, fixing pin, water valve set, water valve, left handle, right handle, rubber handle, seal ring, water tube sleeve, rubber pad, air tube pad, O-ring, air connection tube, pressure regulation valve, water connection tube......
| No | Part No | Name |
| 1 | YT28-1.02 | Ratchet |
| 2 | YT28-1.03 | Valve chest |
| 3 | YT28-1.05 | Valve cover |
| 4 | YT28-1.08 | gun nut |
| 5 | YT28-1.10 | Piston |
| 6 | YT28-1.11a | Cylinder |
| 7 | YT28-1.12a | Guide sleeve |
| 8 | YT28-1.13 | Muffler |
| 9 | YT28-1.14 | bush |
| 10 | YT24-1.04 | Valve |
| 11 | YT24-1.06 | Setting pin |
| 12 | YT24-1.07 | Ratchet pawl |
| 13 | YT24-1.09 | gun bar |
| 14 | YT24-1.15 | Crowned spring |
| 15 | YT28-2.01b | Front head |
| 16 | YT28-2.02a | Rotary sleeve |
| 17 | YT24-2.03 | Shank sleeve |
| 18 | YT28-2.12 | Spring pad |
| 19 | YT28-2.05 | Yoke spring |
| 20 | YT24-2.06 | Yoke bolt |
| 21 | YT24-2.07a* | Yoke |
| 22 | YT28-2.09 | Rotation nut |
| 23 | Gb889 M16-Zn.D | I-hex.locking nut |
| 24 | YT28-3.02 | Side bolt |
| 25 | YT28-3.03a | Control valve |
| 26 | YT28-3.04 | Water tube |
| 27 | YT28-3.05 | Air tube |
| 28 | YT28-3.07 | Big washer |
| 29 | YT28-3.08a | Handle |
| 30 | YT28-3.13 | Swell ring |
| 31 | YT28-3.14 | Pressure regulating valve |
| 32 | YT28-3.21 | Control handle |
| 33 | YT28-3.27 | Left handle |
| 34 | YT24-3.01 | Spring ring |
| 35 | YT24-3.06 | Small washer |
| 36 | YT24-3.09 | Side bolt nut |
| 37 | YT24-3.10 | Steel retainer ring |
| 38 | YT28-3.11 | Air connection tube |
| 39 | YT24-3.12 | Trigger |
| 40 | YT24-3.15 | Change-over valve |
| 41 | YT24-3.16 | Spring |
| 42 | YT28-3.18 | Water connection tube |
| 43 | YT24-3.19 | Steel retainer ring |
| 44 | YT24-3.22 | Fixing pin |
| 45 | YT24-3.23 | Water valve set |
| 46 | YT24-3.24 | Steel retainer ring |
| 47 | YT24-3.25a | Spring cap |
| 48 | YT24-3.26 | Water valve |
| 49 | YT24-3.28 | Right handle |
| 50 | YT24-3.29 | Rubber handle |
| 51 | YT24-3.30 | Seal ring |
| 52 | YT25-3.06 | Spring |
| 53 | YT25-3.09 | Water tube sleeve |
| 54 | YT25-3.13 | Rubber pad |
| 55 | YT25-3.14 | Air tube pad |
| 56 | YT25-3.20 | Spring |
| 57 | YT25-3.21 | Setting pin |
| 58 | YT25-3.24 | O-seal ring |
| 59 | YT25-3.35 | Pad |
| 60 | GB1235-76 | O-ring 8×1.9 |
| 61 | GB1235-76 | O-ring 22×2.4 |
| 62 | GB1235-76 | O-ring 25×2.4 |
| 63 | GB1235-76 | O-ring 36×3.5 |
| 64 | ZBJ15 001-87 | Hoop |
| 65 | GB879 8×24 | Spring pin |
| 66 | GB93 10 | Spring pad |
| 67 | GB6172 M10-Zn.D | Hex.thin nut |
