| Prod Model: |
840 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
7*1.5*1.5 |
| Color: |
as You Like |
| Suitable To Process: |
Galvanized Steel Plate |
| Whether Can Be Customized: |
Yes |
| Main Power: |
3kw |
| Hydraulic Unit Power: |
4kw |
| Width Of The Plate: |
1000mm |
| Rollers: |
12 Rows |
| Thickness Of The Plate: |
0.3-0.6mm |
| Roller Material: |
Forging Steel 45# |
| Forging Forming Method: |
Mold Forging |
Product Description
1. The reasonable price, the high quality service, Superior quality
2. PLC computer control
3. Extensive production experiences,

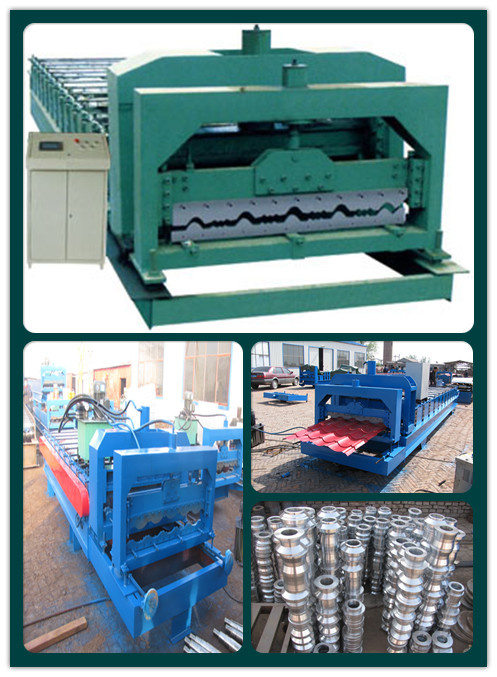

Equipment components: Uncoiler, roll forming machine, PLC computer control system, hydraulic control system and cutting device.
My machine has been designed according to the customers' requirment.
What's more, we can provide technical guilding, installation, debugging, production and maintenance service
|
Suitable to process |
Galvanized steel plate or color steel plate |
|
Main power |
3kw |
|
Hydraulic unit power |
4kw |
|
Roller material |
Forging steel 45# |
|
Voltage |
380V |
|
Rollers |
12 rows |
|
Thickness of the plate |
0.3-0.6mm |
|
Width of the plate |
1000mm |
|
Material or the cutting plate |
Cr 12 |
|
Control mode |
PLC |
|
Produce speed |
0-3m/min |
|
weight |
About 3.6t |
|
Size |
About 7m*1.5m*1.5m |
|
Botou xinsheng roll forming machinery factory, dedicated to focus on cold_formed metal plate roll forming equipment and manufactureing, now has a unique mode of management and product development capacity, ranking with the industy-leading level. My plant products due to structural light, design reasonable, constantly updated and greatly favored customers.
My factory is located in the Bohai Sea Economic circle, China foundary city-Botou city, north of Beijing and Tianjin, East Bohai Sea, 104, 106National Road, Beijing-Shanghai Railway, Beijing-Fuzhou Expressway runs through the city, convenient transportation and location.
My factory'main products include: Glazed tile equipment, building equipment contractors board, C/Z shaped steel forming equipment, composite plate molding equipment, automobile car plate, anode plate, such as dust removal equipment, and in accordance with the actual needs of the user-made production. At the same time provide users with pre-sales, after a series of technical guidance, production, installation, repair through-train service.
