| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Forging Forming Method: |
Mold Forging |
Product Description

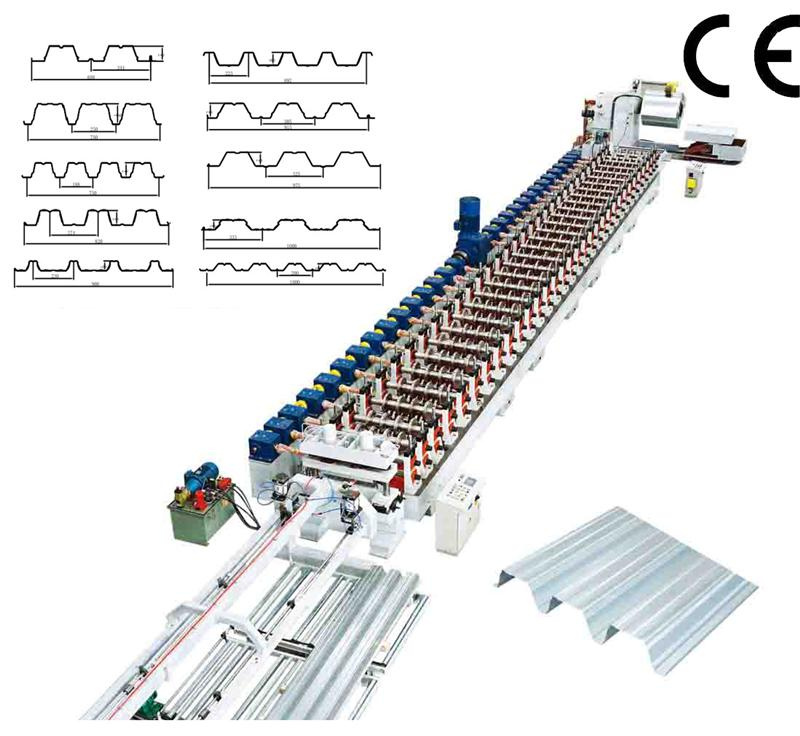

The series roll forming machines are used to roll sheet metal(such as roof panel, wall panel) for steel structure building, steel structure project and containment system.
Production Introduction
The line is composed by loading car, uncolier, guiding feeding device,
Roll forming machine, cutter, automatic stacker, hydraulic system, electric contral system.
MATERIAL:
1. Suitable Coil Thickness 0.3 mm-1.0mm
2. Coil Width: 800mm~1250 mm
2. Suitable Raw Materials: Galvanized coil, Pre-painted Coil
3. Yield bearing stress 235 MPa
MACHINE COMPONENTS
1. Hydraulic Un-coiler with coil car
2. Raft style Roll-Forming M/C
3. Hydraulic Cutting
4. PLC Control System
5. Automatic Product Rack
6. Line speed: 40~60m/min.
|
NO. |
Model |
Coil width |
Thickness |
Effective width |
Profile drawing |
|
1 |
TF28-200-1000 |
1250 |
0.3-0.7 |
1000 |
|
|
2 |
TF36-196-980 |
1250 |
0.4-1.0 |
980 |
|
|
3 |
TF30-350-1050 |
1200 |
0.3-0.7 |
1000 |
|
|
4 |
TF31-200-1000 |
1220 |
0.3-0.8 |
1050 |
|
|
5 |
TF25-205-1025 |
1200 |
0.3-0.7 |
1025 |
|
|
6 |
TF28-200-800 |
1000 |
0.3-0.7 |
800 |
|
|
7 |
TF28-205-820 |
1000 |
0.4-0.6 |
820 |
|
|
8 |
TF25-210-840 |
1000 |
0.4-0.6 |
840 |
|
Xinxiang Tianfeng Machinery Manufacture Co., Ltd a leading manufacturer for steel plate coiling machinery, cold-bending & rolling steel plate shaping machineries and automatic production lines. The products are mainly used in steel structure industry for producing C&Z type purlin, colored wall and floor protecting steel plate, thermal insulating plate and load-bearing plate of buildings, and other complementary thin wall cold-bending shaped seel plates, expressway railings, colorful decorating and protecting steel plates for high-grade steel structure residences.
