Product Description

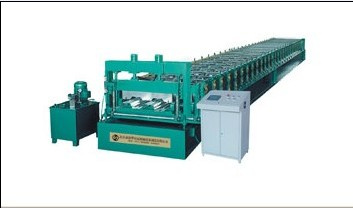

688-720 Type Floor Deck Forming Machine Parameter
1 Automatic internal tension uncoiler
A. Diameter mounted volume
B. 1000mm Maximum width of 1000mm mounted volume
C. 6000kg Maximum load weight: 6000kg
D. 3kw Hydraulic power: 3kw
E. 3kw Motor power: 3kw
F. 120mm Cylinder diameter: 120mm
G. 10Mpa Working pressure: 10Mpa
2 Forming host
A. 24 steps Rack row floor: 24 rows: 24 steps
B. Spindle material 45 # steel modulation processing, outside diameter 80mm. 15GCR roller bearing steel material handling HRC58-60 ° .
D. 22kw Main motor power: 22kw
E. 9-12m/min Rolling speed: 9-12m / min
F. Works steel welded bracket
G. Roll the surface of hard chromium plating thickness of 0.05mm.
3 Hydraulic Cutter
A. Blade material: Cr12 quenching treatment
B. Cut off the system: The advanced hydraulic drive, automatic foot cut off after molding, no distortion, no waste, higher safety factor (host stopped off)
4 Electronic Control System
A. Screen display: The 5.7-inch touch screen up to Taiwan and Taiwan
B. Host computer (PLC): Use of Taiwan and Taiwan reached DVP14ES
C. Encoder: The South Korean Autonics ENC-1-1-1t-24
5 hydraulic system
A. Use of Taiwan's advanced hydraulic system
B. Power: 4KW
Floor deck forming equipment, construction and use of the floor deck profile thickness 0.8mm, 1.0mm, 1.2mm width 688mm ~ 940mm, high 5 1 mm ~ 76mm. Engineering floor mezzanine deck with reinforced concrete structure interaction, complex systems structure
Pressed Steel Type 688 Usage
Effective cover width (mm) 680
Expand Width (mm) 1000
Steel deck floor
Thickness(mm) 0.8 1.0 1.2
Section inertia 91.62 119.38 142.01
Section to withstand distance 23.46 30.58 36.98
