| Prod Model: |

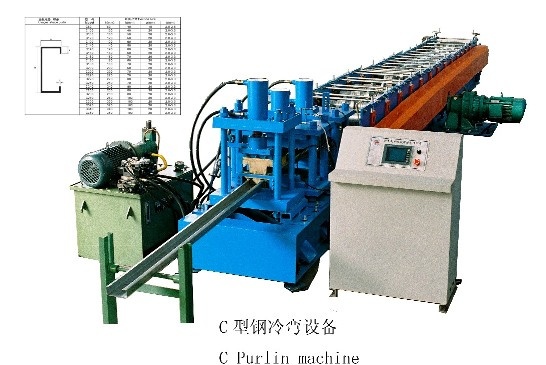

Purling forming TFC80-360 |
Product Description
Tianfon was established in 1994 as a professional manufacturer of rollforming machinery and is the leading manufacturer and exporter of rollforming machinery in China. We are using COPRAR and AUTO CAD softwares for roller design. With more than 14 years of experience and strict quality control, our products meet European CE and International Standards. Products Include Roofing, Tile Sheet, Ceiling T-Bar, Partition Beam, Floordeck, Door Frame, C&Z Purlin, Stainless Steel Pipe and Flooring Deck Equipments, etc.
MATERIAL:
(1) Coil Width: According the size
(2) Suitable Coil Thickness: 2.0-3.0mm
(3) Suitable Raw Materials: Q235, Galvanized steel coil
MACHINE COMPONENTS:
(1) Manual Un-coiler: 1 set
(2) Leveling Device: 1 set
(3) Roll-Forming M/C: 1 set
(4) Hydraulic Cutting(one cutter): 1 set
(5) PLC Control System: 1 set
(6) Product Rack (un-powered): 1 set
TECHNICAL SPECIFICATION:
(1)Manual Un-coiler: Un-powered; Single head; Max. Capacity: 3000kg;
(2) Roll-Forming M/C:
13-step to form; Material of Roller: 45# steel with chromizing on surface
Voltage: 380V/50Hz
Main line speed, 0- 10m/min
(3) Hydraulic Cutting: Stop to cut, Post cut, Cutting tool material: Cr12
(4) PLC Control System: Using Mitsubishi PLC Control the quantity, length automatically, LCD screen
(5) Product Rack (Un-powered)
Option:
Hydraulic un-coiler
Hydraulic system to expand coil inner hole
Frequency Inverter to regulate turning speed,
Automatic stop device, Load capacity = Max. 3Tons.
Xinxiang Tianfeng Machinery Manufacture Co., Ltd a leading manufacturer for steel plate coiling machinery, cold-bending & rolling steel plate shaping machineries and automatic production lines. The products are mainly used in steel structure industry for producing C&Z type purlin, colored wall and floor protecting steel plate, thermal insulating plate and load-bearing plate of buildings, and other complementary thin wall cold-bending shaped seel plates, expressway railings, colorful decorating and protecting steel plates for high-grade steel structure residences.
