Product Description

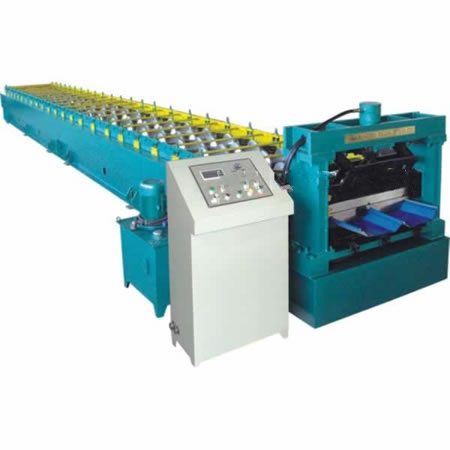

Roll Forming Machine Features:
1) Consists of uncoiler and its base, coil sheet guiding equipment, film covered device, roll forming system, pressing equipment, post-cutting equipment, hydraulic station, controlling system, supporter table
2) Material spec: Colored and galvanized steel sheet at yield stress 33KSI
3) Thickness of coil sheet: 0.5 - 0.6 mm
4) Coil width: 1000mm5) Working speed: 3.0 - 4.0m/min (step distance at 380mm)
6) Power requirement: A) Main motor power: 7.5kW B) Hydraulic station power: 5.5kW
7) Passive uncoiler max. Capacity: 5, 000kg
8) Quantity of stands: 15 groups
9) Controlling system: PLC
10) Type of cutting: Roll-formed and length-set cutting
11) Machine dimension: About 18, 500 x 1, 500 x 1, 400mm
12) Total weight: About 9, 500kg
13) Voltage: 380V 3 phase 60Hz or at buyer's requirement
14) Working flow: Decoiling the sheet-sheet guiding-film covering-roll forming-measure length -pressing-cutting the panel-panels to the supporter
Our company is located in the beautiful city - Hangzhou and is a professional manufacturer and exporter of building material machinery in China. Our products include steel building machinery, steel building engineering projects and steel building materials. Our standard workshop covers more than 5000 square meters. We enjoy very convenient transportation. We are about 10km away from Hangzhou International Airport and 180km away from Shanghai and Ningbo Ports. We have great designing & manufacturing capacities. We have machinists with years of machining expertise and knowledge. We can ensure the good quality throughout the production process. Based on the tenet of "3w (will-win-win)" and the aim of "quality first, faithful cooperation, professional service and reasonable price", we have already established favorable relationships with many clients in more than 20 countries and regions around the world, such as America, Chile, Australia, Jordan, Saudi Arabia, Nigeria and India. We are ready to build a life long relationship with you as a supplier, a partner and a friend. We look forward to hearing from you at any time!
