| Prod Model: |
FORGING PARTS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Diameter: |
140-800mm |
| Work Roll: |
60mm-500mm |
| Rough Turned Tolerance: |
-0/+3mm |
| Grain Size: |
ASTM E112-96 Grade 5 or Finer |
| Type: |
Hollow or Solid |
| Forging Forming Method: |
Free Forging |
Product Description

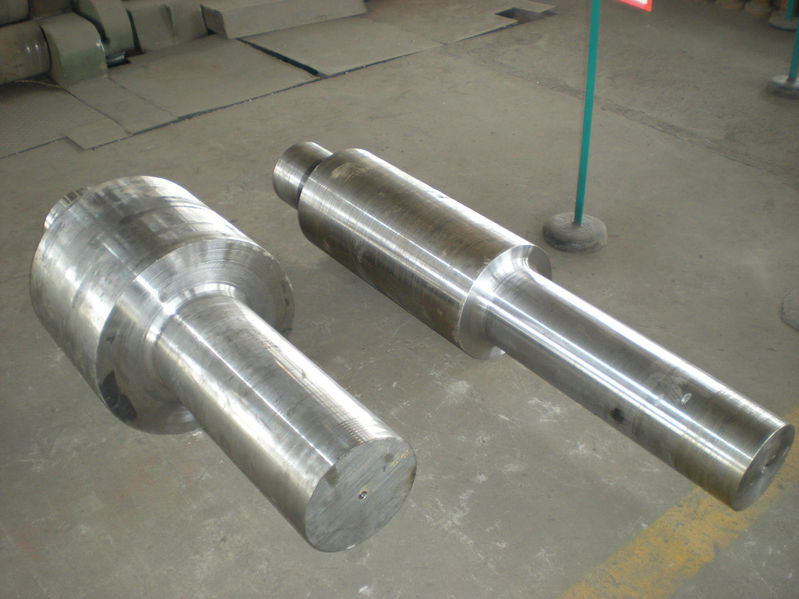

Commodity: Roll shaft
Standards: GB, JIS, AISI, SAE, ASTM/ASME, EN, DIN, BS
Materials: Carbon steel, Alloy steel
Process: Forging/Casting, Normalizing & Tempering, Proof Machining, Quenching & Tempering, Finish Machining
Ultra-sonic test: As per Sep 1921 Group III C/c, D/d
Grain size: As per ASTM E112-96 Grade 5 or finer
Non-metal inclusion: As per ASTM E45 A/B/C/D
Technical Data: According to the customer's requirement of Chemical Composition, Physical Properties and Mechanical Testing.
MTC: As per EN 10204/3.1, hardness, Impact test values, inclusions, UST, and the complete mechanical properties values ( Re, RM, A, Z ) should be reported on the MTC.
Place of origin: China
Certificate: ISO9001: 2008 Quality Certificate, ISO14001: 2004 Environment Certificate
We can supply and process all kinds of forged steel products according to the requirements of your drawing. Welcome clients from all over the world.
|
Shape |
Diameter(m) |
Length(m) |
|
Shaft |
≤2.5 |
≤15 |
|
Block |
≤4.0 |
/ |
|
Ring |
≤4.9 |
≤3.5 |
|
Cylinder |
≤1.5 |
≤8.0 |
Shoute huafeng Machinery Equipment Co., Ltd. (STHF) is the largest entity company of Huafengweiye Steel Group Co. Ltd. It is also a relocation and renovation project of the Still Mill of Beijing Shougang Special Steel Co., Ltd., and the project which was approved by Baoding (of Heibei Province) Planning Commission with an approval No. 118 (2002).
Currently STHF has two 25-ton electric furnace, a 25-ton LF furnace, a 25-ton VOD furnace, a 15-ton electroslag furnace, three 8-ton free forging hammer and a set of 2500-ton fast forging press. Forming five production areas of steelmaking, casting steel, forging steel, machining and heat treatment.
Our company mainly produces special steel forging products such as alloy structural steel, alloy tool steel, carbon structural steel, carbon tool steel, bearing steel and die steel which can be divided into 13 major categories and 300 kinds. We can provide domestic and foreign customers with steel ingot, forging stock, forging materials, round steel bars, module, large rolls, steel casting and iron casting. The products are mainly exported to the Middle East, Southeast Asia, Europe, Australia and the United States.
We have passed the ISO9001: 2008 Quality System Certification and ISO14001: 2004 Environment System Certification and obtained the Special Equipment Manufacturing License issued by State Administration for Quality Supervision and Inspection and Quarantine of PRC.
Welcome to visit the company and work together!
