Product Description
Composition of the equipment:

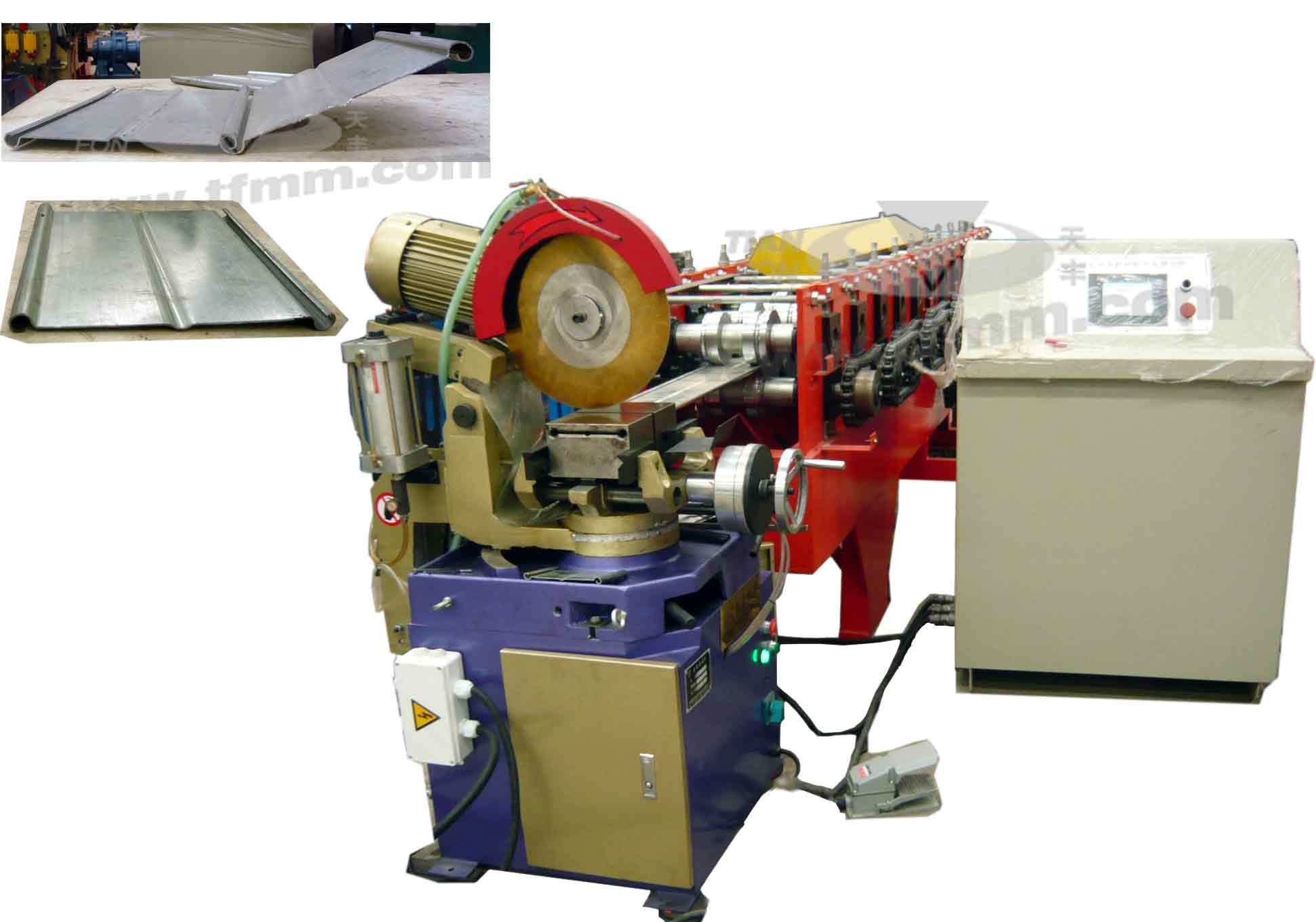

1. Cold Roll Forming Machine (1 set)
2. Manual Type Uncoiler ( 1set)
3. Rear-Cutter (1 set)
4. Mini slitter (1 set)
5. Pre-Cutter (Option)
6. Coil Car (Option)
7. Product Stacker (Option)
8. Safety Guide (Option) C emergency stop wire, PVC cover etc.
Specifications:
1. Machine size(mm): 12044*1369*1115 approx
2. Thickness of forming sheet: 0.8 mm ~1.2 mm.
3. Forming speed: 10m/min.
4. Roll shaft dia: 75 mm dia in S45C
5. Main motor: 15 HP in hydraulic system
6. Attached with 2 tons mandrel type uncoiler in hydraulic system
7. Measuring device with one tachometer for length counting.
8. Attached with one set of hydraulic cutting device
9. Attached with one set of hydraulic scrap winder
This machine is controlled by computer system with touch screen.
Xinxiang Tianfeng Machinery Manufacture Co., Ltd a leading manufacturer for steel plate coiling machinery, cold-bending & rolling steel plate shaping machineries and automatic production lines. The products are mainly used in steel structure industry for producing C&Z type purlin, colored wall and floor protecting steel plate, thermal insulating plate and load-bearing plate of buildings, and other complementary thin wall cold-bending shaped seel plates, expressway railings, colorful decorating and protecting steel plates for high-grade steel structure residences.
