| Prod Model: |
ROLLING SHUTTER DOOR MACHINE |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Roll Forming Machine |
Product Description

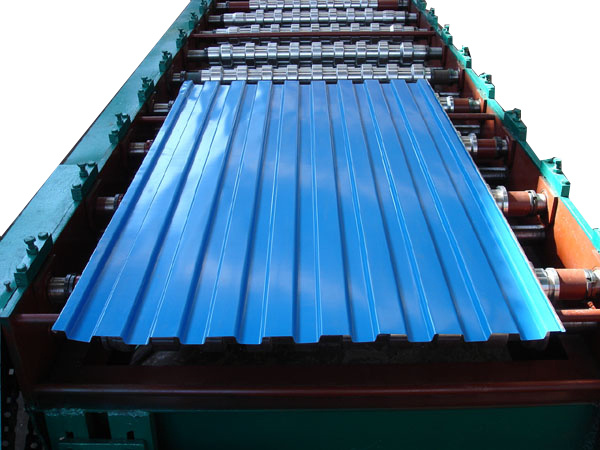

1. The machine shown in the illustration is to produce wall panel. When the steel sheet is passing through the rollers, it has fine shape and be cut into required length. At present, the wall panel forming machine produced by our company is the roll forming machine for wall profiles which is successfully developed by our company based on advanced technology home and aboard.
2. The wall panel and inner roof panel feature good appearance, high coverage, high strength, high automation, low cost and long lifetime. The panels are widely used in civil construction such as factory, garage and gymnasium.
3. The machine mainly consists of decoiler, guiding equipment, roll forming system, post-cutting equipment, hydraulic station, control system, etc. We also design the machine in accordance with customer's request.
|
|
Description |
Specification |
|
1 |
Main moter power |
3 kw |
|
2 |
Hydaulic sation power |
4 kw |
|
3 |
Hydraulic station pressure |
10-12 MPa |
|
4 |
Control system |
PLC |
|
5 |
thickness |
0.25-0.6mm |
|
6 |
Forming speed |
12m/min |
|
7 |
Automation |
full-automatic |
|
8 |
Hydraulic oil pump |
CB-E310 |
|
9 |
Diameter of principal axis |
85mm |
|
10 |
Frame thickness |
20mm |
|
11 |
sprocket |
P-25.4 |
|
12 |
Material of roller |
45#steel hard chrome plating |
|
13 |
voltage |
380v 3 phase 50HZ |
|
14 |
Total weight |
2.4 T |
|
15 |
Equipment parts: includes: roll forming system, hydraulic system, PLC frequency conversion control system, counter, cutting system, product supporter. |
|
Terms, |
|
Delivery: in stock |
|
Package: package for container |
|
Payment: T/T(30% T/T pay in advance, the balance by T/T when we sending the machine) |
|
Validity: good for 30 days |
Established in 1998, Botou Zhenyuan Roll Forming Machine Factory is specialized in designing and producing roof and wall roll forming machines.
Our products are widely applied to manufacturing colored steel tiles which get extensive application in industry workshop, warehouse, residence, etc. They have won high reputation for their satisfying quality among our customers.
