Product Description

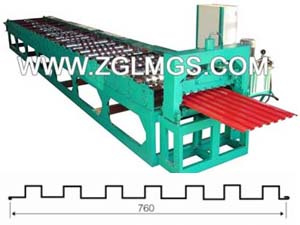

LM-760 rolling shutter door roll forming machine
It consists of feeding platform, main molding core, shearing mechanism, hydraulic station, computer control cabinet, high precision counter and so on
This roll forming machine: It is a huge and good quality machine. Panels of it looks very beautiful.
It has features of easy operating, beautiful appearance, low noise, high efficiency, good quality, reasonable price, reliable working and so on.
It has been honored with ISO 9001: 2000 certification.
It had got the eighth "Consumer-trusted Enterprise in Cangzhou City"
It had got the ninth "Consumer-trusted Enterprise in Hebei Province"
3.15 quality, Credibility, Satisfied with the good faith commitment to the consumer services units
Technical parameter
Material: Galvanized sheet or colored armor plate;
Equipment operation: Automatically;
Voltage: AC380/50-60Hz;
Number of roller: 11;
Thickness of sheet: 0.3...0.8(mm);
Material width: 1000(mm);
Formed width: 850(mm);
Productivity: 0-14m/min;
Output /shift: 5000m
Producinh capacity: 3500/8hs
Diameter of shaft: 70mm;
Dimension of main structure: 7500*1800*1500(mm);
Material of rollers: 45# steel;
Weight: 3050 KG;
Total power: 8KW;
Driven system: Single;
Power of hydraulic system: 4KW;
Power of main molding core; 4kw (cycloidal planetary gear speed reducer).
Technical parameter of production line:
Applied plank stuff galvanized steel sheet, colored armor plate or aluminum plate
Applied slab thickness: 0.3mm-1.0mm
Charge in width: 1000mm
Line speed: 0-14m/min
Rolling rows: 16rows
Rolling diameter: 70mm
Dimensions: 8.5m*1.5m*1.6m
Weight: 4.3kg
Power: 4kw+3kw.
Liming Stamping Form Machine Manufactured Co., is a leading manufacturer for steel plate coiling machinery, roll-forming and automatic production lines. The products are mainly used in steel structure industry for producing C&Z shape purlin, load-bearing plate of buildings, wall and roof protective structure colorful steel plate, thermal insulation; Colorful decorating and protecting steel plates for high-grade steel structure residences; Environment industry anode plate and kathode plate lines for removing dust; Traffic-transport industry freeway guardrail plate, vehicle roll-forming materials; Logistics. Goods shelf pillar, holding beam; Cable bridge, Cabinet pillar and others collorary thin wall roll-forming materials serials-such as goods shelf board, kinds of cabinet screen plate. Then, it can also supply kinds of line of uncoiler, leveler, slitting recoiler, cut-to-length shear stacker.
Liming has advanced production equipment. Engineering personnel and technicians of Bohai are rich in experience of designing, developing, and manufacturing of machineries, They pay close attention to and keep up with the developing trend of technologies and adopt new technologies in the manufacturing of our machinery products, to keep them competitiveness. The products are characteristic of high efficiency, high flexibility and low production cost.
