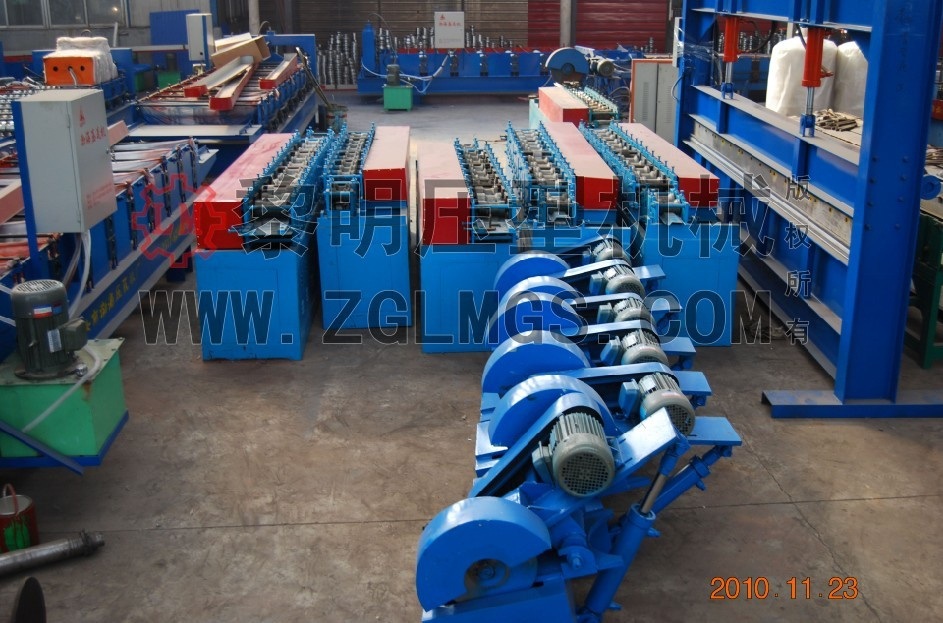

Rolling Shutter Door Forming Machine

Rolling Shutter Door Forming Machine
Price: Negotiable/Piece
Min Order: 1 /Piece
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type: Forming Machine

Product Description

Equipment parts
1. Decoiler, which can bear 5000kg
2. Feeding platform
3. Main molding core
4. Hydraulic system
5. Automatic shearing system
6. Computer control system (imported computer)
7. High-precision automatic counte
8. Driven system protective covering
9. Panel supporting table


Technical paramenters: Material spec: Colored steel sheet, galvanized steel sheet
Thickness of coil sheet: 0.3-1MM
Main motor power: 5.5kw
Forming speed: 16m/min
Hydraulic station power: 3kw
Quantity of stands: About 18 groups
Hydraulic pressure: 10-12Mpacont
Rolling system: PLC
Index error of length: 10m-2mm
Total weight: About 5200kg
Voltage: 380v 3 phase 60Hz or at buyer's requirement

Material of main equipment:
Roller material: High grade No. 45 forged steel, plated hard chrome on the suface of roller with thickness 0.05mm
Active shaft material: High grade No. 45 carbon wrought steel at diameter 70mm
Cutter blade: Cr12 mould steel with quenched treatment
The panel suface no scratch
Frequcecy converter adopt ABB
PLC: Computer adopt PLC, Mitsubishi FX-IS series
Computer operationg board adopt OP320A, China
Liming Stamping Form Machine Manufactured Co., is a leading manufacturer for steel plate coiling machinery, roll-forming and automatic production lines. The products are mainly used in steel structure industry for producing C&Z shape purlin, load-bearing plate of buildings, wall and roof protective structure colorful steel plate, thermal insulation; Colorful decorating and protecting steel plates for high-grade steel structure residences; Environment industry anode plate and kathode plate lines for removing dust; Traffic-transport industry freeway guardrail plate, vehicle roll-forming materials; Logistics. Goods shelf pillar, holding beam; Cable bridge, Cabinet pillar and others collorary thin wall roll-forming materials serials-such as goods shelf board, kinds of cabinet screen plate. Then, it can also supply kinds of line of uncoiler, leveler, slitting recoiler, cut-to-length shear stacker.

Liming has advanced production equipment. Engineering personnel and technicians of Bohai are rich in experience of designing, developing, and manufacturing of machineries, They pay close attention to and keep up with the developing trend of technologies and adopt new technologies in the manufacturing of our machinery products, to keep them competitiveness. The products are characteristic of high efficiency, high flexibility and low production cost.
