| Prod Model: |
LM-125 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Metal Rolling&Drawing Machine |
Product Description

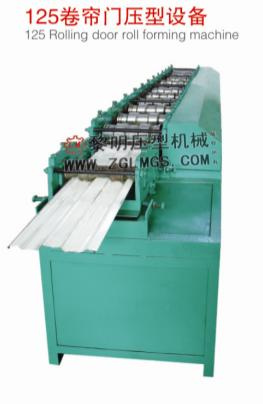

Rolling Shutter Door Roll Forming Machine LM-125
Function and feature
This producing line uses galvanized steel sheet, colored armor plate or aluminum plate as the material plate. The products of it are used as the roof tile and wall panel outside of building, as well as decorative sheet and ceiling board inside of building, to increase the beauty and durability of the roof tile and wall panel. This line has no limit on processing length; You can set several different data on the computer control cabinet according to your own need. After pressing the button "Confirm", the machine can produce the panel automatically according to the set data. The molding plate surface smooth and not easy to be marked when it is being stamped. So it is easy to install. The product conforms to National Steel Construction Building Standard.
Features of this producing line:
Lower cost
High efficiency
Reliable working
Low energy consumption
Technical parameter
Equipment operation Automatically
Voltage AC380/50Hz or at buyer's requirement
Number of roller 14-18
Thickness of sheet(mm) 0.3-0.8
Formed width(mm) 125
Productivity 12-16m/min
Producing capability 3500 m2/8hs
Diameter of shaft 70mm
Dimension of main structure(mm) About 4000*1900*1300
Material of rollers 45# steel
Weight About 3000kg
Total power(kw) 7 kw
Driven system Single
Power of hydraulic system 4KW
Power of main molding core 3kw(cycloidal planetary gear speed reducer)
Equipment parts
1. Decoiler, which can bear 5000kg
2. Feeding platform
3. Main molding core
4. Hydraulic system
5. Automatic shearing system
6. Computer control system (imported computer)
7. High-precision automatic counter
8. Driven system protective covering
9. Panel supporting table
Liming Stamping Form Machine Manufactured Co., is a leading manufacturer for steel plate coiling machinery, roll-forming and automatic production lines. The products are mainly used in steel structure industry for producing C&Z shape purlin, load-bearing plate of buildings, wall and roof protective structure colorful steel plate, thermal insulation; Colorful decorating and protecting steel plates for high-grade steel structure residences; Environment industry anode plate and kathode plate lines for removing dust; Traffic-transport industry freeway guardrail plate, vehicle roll-forming materials; Logistics. Goods shelf pillar, holding beam; Cable bridge, Cabinet pillar and others collorary thin wall roll-forming materials serials-such as goods shelf board, kinds of cabinet screen plate. Then, it can also supply kinds of line of uncoiler, leveler, slitting recoiler, cut-to-length shear stacker.
Liming has advanced production equipment. Engineering personnel and technicians of Bohai are rich in experience of designing, developing, and manufacturing of machineries, They pay close attention to and keep up with the developing trend of technologies and adopt new technologies in the manufacturing of our machinery products, to keep them competitiveness. The products are characteristic of high efficiency, high flexibility and low production cost.
