| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Metal Rolling&Drawing Machine |
Product Description

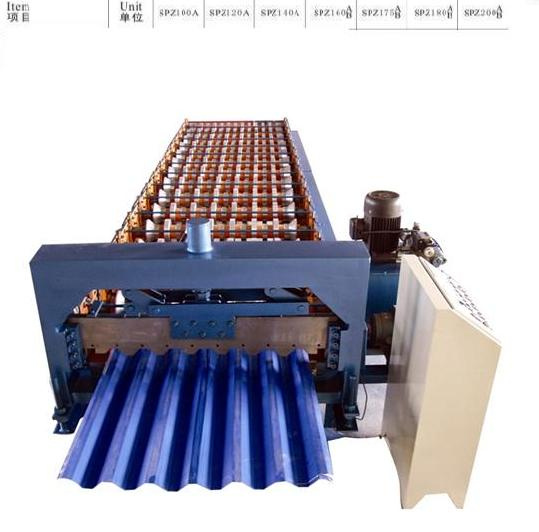

1. The machine shown in the illustration is to produce wall panel. When the steel sheet is passing through the rollers, it has fine shape and be cut into required length. At present, the wall panel forming machine produced by our company is the roll forming machine for wall profiles which is successfully developed by our company based on advanced technology home and aboard.
2. The wall panel and inner roof panel feature good appearance, high coverage, high strength, high automation, low cost and long lifetime. The panels are widely used in civil construction such as factory, garage and gymnasium.
3. The machine mainly consists of decoiler, guiding equipment, roll forming system, post-cutting equipment, hydraulic station, control system, etc. We also design the machine in accordance with customer's request.
|
|
51-250-750 roll forming machine |
|
|
Description |
Specification |
|
1 |
Main moter power |
5 kw |
|
2 |
Hydaulic sation power |
4.5kw |
|
3 |
Hydraulic station pressure |
10-12 MPa |
|
4 |
Control system |
PLC |
|
5 |
thickness |
0.5-2mm |
|
6 |
Forming speed |
12m/min |
|
7 |
Effective width |
750mm |
|
8 |
Hydraulic oil pump |
CB-E310 |
|
9 |
Diameter of principal axis |
90mm |
|
10 |
Roller material |
45#steel |
|
11 |
Chrome Plating thickness |
0.05mm |
|
12 |
Cutting material of blade |
Cr12 |
|
13 |
Frame thickness |
20mm |
|
14 |
sprocket |
P-50.8 |
|
15 |
Dimension(L*W*H) |
About 14*1.7*1.5M |
|
16 |
Material of roller |
45#steel hard chrome plating |
|
17 |
voltage |
380v 3 phase 50HZ |
|
18 |
Total weight |
3.2 T |
|
19 |
Equipment parts:includes:roll forming system,hydraulic system,PLC frequency conversion control system,counter,cutting system,product supporter. |
|
Terms, |
|
Delivery: in stock |
|
Package: package for container |
|
Payment: T/T(30% T/T pay in advance ,the balance by T/T when we sending the machine) |
|
Validity :good for 30 days |
Wuxi Jing Jia International Trade Co., Ltd. is located by the coast of beautiful Tai Lake of the Yangtze River Delta, Wuxi, with Shanghai-Nanjing Railway, Xin-Chang Railway, Beijing-Shanghai Expressway, Shanghai-Nanjing Expressway and Huyi Expressway converging and the Grand Canal (China) passing through, only 100m from National Highway 312. It is a modern technology enterprise integrating R&D, manufacture, technical service and import & export trade. Our tenet is "Build Credit Once, Serve You Forever!
To adapt to the development of domestic and foreign steel structure, the company has been engaged in production of steel structure roofs and wall containment channeled steel plate equipment for years. It is also committed to the R&D of new products. We have developed many series of channeled steel plate production lines from the initial monolayer corrugated sheet pressing production line, such as slitting line production line, series hidden gripping wall roof plate production line, series colorbond sandwiched steel plate production line, series C-type steel and Z-type steel numerical control tape punching and purlin production line, series floor steel bearing plate production line, PU load board production line, series arch roof with or without beam and series production equipment, fully meeting requirements of all steel buildings.
Our company has strong technical strength, high-level management personnel, strong production capacity and complete quality tracking and detection. We have passed the certification of ISO9001: 2000 Quality Management System, and the quality management during production strictly executes 9001 standard. The company has ranked among the industry in China, our users spread all over China and our products are exported to many countries and regions in Southeast Asia, South Africa, America, etc. We have established good cooperative relationship with many manufacturers and distributors, forming wide product marketing channels.
Wuxi Jing Jia International Trade Co., Ltd. will give play to its advantages of technology, market channel and market development capacity to provide professional and excellent service for manufacturers and users at home and abroad.
