| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Blue or Green |
| Panel Thickness: |
0.3-0.8mm |
| Voltage: |
380V, 50Hz |
| Control System: |
PLC |
| Suitable Material: |
Galvanized Steel Sheet and Colored Steel Sheet |
| Type: |

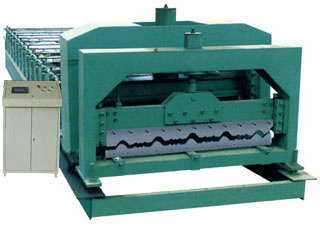

Roof Tile Roll Forming Machine |
Product Description
1)Technical Parameter:
1. Suitable to process: Colored Steel plate, galvanized board
2. Width of the plate: 1250mm
3. Rollers: 12rows
4. Rolling material: Forging Steel 45#
5. Rolling galvanization thickness: 0.05 mm
6. Material of the cutting blade: Cr12
7. Hydraulic oil: 40#
8. Dimensions: 7.4*1.55*1.51m
9. Power: 4+4kw
10. Thickness of the plate: 0.3-0.6mm
11. Productivity: 2~3m/min
12. Diameter of the roller: 70mm
13. Weight: About 4.3T
14. Voltage: 380V 50Hz
15. Processing precision: Within 1.00mm
Botou xinsheng roll forming machinery factory, dedicated to focus on cold_formed metal plate roll forming equipment and manufactureing, now has a unique mode of management and product development capacity, ranking with the industy-leading level. My plant products due to structural light, design reasonable, constantly updated and greatly favored customers.
My factory is located in the Bohai Sea Economic circle, China foundary city-Botou city, north of Beijing and Tianjin, East Bohai Sea, 104, 106National Road, Beijing-Shanghai Railway, Beijing-Fuzhou Expressway runs through the city, convenient transportation and location.
My factory'main products include: Glazed tile equipment, building equipment contractors board, C/Z shaped steel forming equipment, composite plate molding equipment, automobile car plate, anode plate, such as dust removal equipment, and in accordance with the actual needs of the user-made production. At the same time provide users with pre-sales, after a series of technical guidance, production, installation, repair through-train service.
