| Prod Model: |
AF-R1100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Roof Sheet Forming Machine |
| Machine Color: |
as Require |
| Machine Size: |
6.5m*1.4m*1.4m |
| Machine Weight: |
3tons |
| Control System: |
PLC |
| Cutting Type: |
Hydraulic |
| Driven Type: |
Chain |
| Size Of Container: |
40gp |
| Usage: |
Roof and Wall |
| Life Long: |
10year |
| Forging Forming Method: |
Mold Forging |
Product Description
Roof sheet forming machine
Roof panel roll forming machine
Other machine we manufacture
Cold roll forming mahcine, color steel roll forming machine, roof and wall panel machine, decking floor roll forming machine, floor decing forming mahcine, stud and track roll forming machine, Z and C purlin machine, highway guardrail roll forming machine, cable tray machine, and so on.
Working flow:
Decoiler-----feeding------roll forming ------ cutting----output table
Machine components:
De-coiler------------------------------------------1set
Forming machine--------------------------------1set
Cutting device -----------------------------------1set
PLC control box --------------------------------1set
Hydraulic pump station-------------------------1set
Production support table-----------------------1set
Terms
Payment type: 30% T/T prepaid and balance should be paid before loading
Delivery time: 25days after receving advance payment.
Guarantee period: 18monthes free service/ pay service all the machine life
Installation and training:
If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
Without visiting, we will send you user manual and video to teach you to install and operate.
If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
Contact person: Abby Song
Mobile number: 0086-18701854523
We can produce machine as different profile drawing.
|
Technical description |
Material specification
|
galvanized and pre-painted galvanized steel.
|
Thickness
|
0.3 mm to 0.8mm.
|
Main motor power
|
4 kw
|
Hydraulic station power
|
3 kw
|
Feeding width
|
1200mm.
|
Cover width
|
840/ 900mm
|
Yield stress
|
235Mpa(33KSI) ~ 345Mpa (50KSI).
|
Roll forming Speed
|
12 m/min
|
Cutting Tolerance
|
+/-2.5mm(length≤5000mm); +/-3.0mm(5000mm
|
Manual Uncoiler
|
Max. Capacity: 5000kgs.
|
Coil inner diameter
|
508mm.
|
Voltage
|
As per customer's request.
|
Numbers of stands
|
13/14 stands
|
Roller material
|
45# steel polished and coated with chrome HRC55-60°
|
Shaft diameter
|
70mm
|
Shaft material
|
high grade No.45 steel after treatment
|

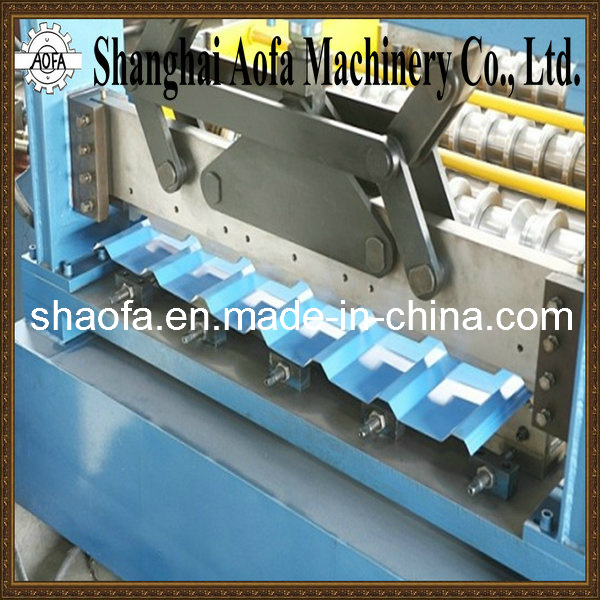

Type of cutting
|
hydraulic cutting after forming
|
Blade material
|
Cr12 steel after treatment
|
Control system
|
PLC Frequency Control System with touch screen
|
We mainly supply high quality roll forming machine. We have achieved good performance up to now, sincerely welcome businessmen overseas to establish a long-term cooperation to create a beautiful tomorrow!
Our factory mainly produce all kinds of roll forming machine, for example, rofo sheet roll forming machine, c purlin roll forming machine, glazed tile roll forming machine, deck floor roll forming machine, sandwich panel production line and so on.
Our factory is established form 2010, up to now, we have sold machines to Canada, Bolivia, South Africa, Dubai, India, Russia and many other countries,
Hope we can cooperate happily
