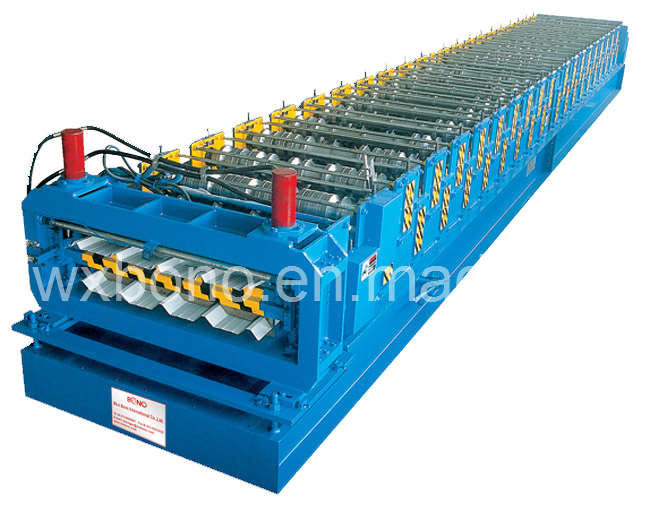

Product Description
I. Specification:
1. Uncoil width: 1250mm
2. Speed: 12m_15m/min(not including cutting time)
3. Roller station: About 18stations
4. Material of roller: Adopt fine grade 45#steel, processed by numeral control machine tools and the surface is coated with chrome.
5. Material of shaft: Adopt fine grade 45#steel, processed by numeral control machine tools and treated by heat.
Diameter of shaft is: 76mm
6. Main power: 7.5Kw
7. Hydraulic station power: 3Kw
8. Hydraulic station pressure: 12 Mpa
9. Electrical system: PLC control, computer and transducer are Panasonic brand, encoder is Omron brand
10. The outline of the machine is about: 8000× 1400× 1200mm:
11. Material of knife: Cr12MOV
12. Thickness: 0.3_0.8mm
13. Material is G550.
14. Tolerance: 10m +-1.5mm
15. Driving type: Chain driving.
16. The designed machine is up to 0.5mm thickness standard.
