| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Motor Power: |
5.5kw |
| Hydraulic Power: |
3kw |
| Forming Speed: |
Max, 18-20m/Min |

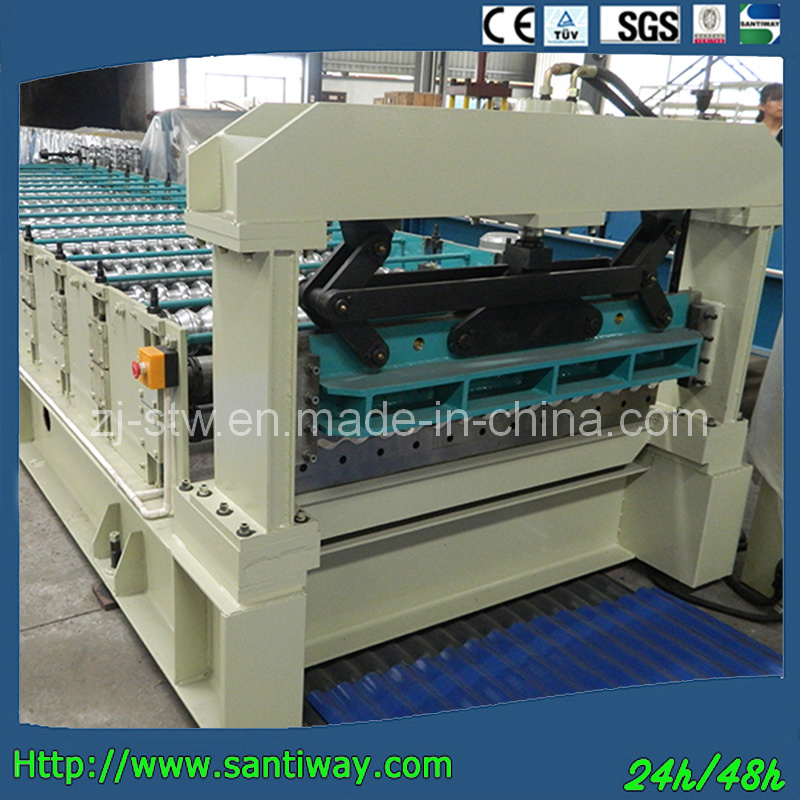

Product Description
Components:
- The simple uncoiler and base
- Coil sheet guiding equipment
- Film covered device
- Roll forming system
- Post cutting system
- Hydraulic station
- Computer control system with touch screen
- Supporter table
The Technical parameters:
- Material: Color steel sheet; Galvanized steel sheet
- Coil thickness: 0.3mm to 0.7mm
- Main motor power: 7.5 KW
- Speed: 10-12m / minutes
- Hydraulic pressure: 10-12 MPa
- Main controller: PLC control
- Votage: 380V, 3 phase 60Hz or according to customers requirments
Material of Roll former system:
- Roller: High grade No. 45 forged steel, plated hard chromed
- Blade: Cr12 mould steel with quenched treatment.
- Control system: MITSUBISH PLC controller.
We providing steel structure products and its related extension products including the floor decking sheet itself, because we have the ability to design, producing and related factory to produce the suitable roll forming machines, we have the ability to provide the solution for the light weight steel structure solutions for all over the world.
No. |
item |
Parameter(all is subject to our final design) |
1
|
Suitable raw material |
Type |
Common galvanized & pre-painted steel |
Yield strength |
235MPa(or other high strength steel) |
Thickness(mm) |
0.3-0.8 |
width(mm) |
According to final design |
2 |
Manual uncoiler's capacity |
Max.5tons |
3 |
Forming speed(m/min) |
About 15m/min |
4 |
Main motor power(KW) |
5.5kw |
5 |
Hydraulic power(KW) |
2.2kw |
6 |
Forming roller groups |
depend on final design |
7 |
Raw material of forming roller |
High quality No.45 steel |
8 |
Raw material of cutting blade |
Cr12mould steel with quenched treatment |
9 |
controlling system |
Mitsubishi PLC& converter |
10 |
Suitable industrial voltage |
According to your special requirement |
11 |
Machine weight |
About 6.2tons(depend on final design) |
