Product Description
Main Technical Specification:
1. Size: 20m*1.5m*1.4m
2. Weight: 11, 500Kg
3. Controlling system: PLC
4. Main motor power: 4kw
Hydraulic station power: 5.5kw
5. Nodal distance: Adjustable according to requirement(>=250mm)
6. Working speed: About 1500mm/min
Introduction:

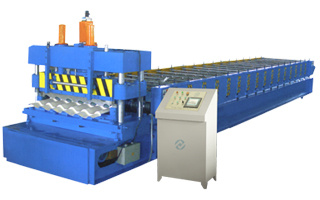

Model HV-207A colored steel tile forming machine consists of decoiler and its base, coil sheet guilding equipment, roll forming system, pressing equipment, post-cutting equipment, hydraulic station, and controlling system.
Product Feature And Usage:
The colored steel tiles produced by this line look beautiful, elegant and noble. They are widely used as the roof of garden-like factory, hotel, exhibition center, villa, civil construction, etc.
