Rotary Table Type Shot Blasting Machine

Rotary Table Type Shot Blasting Machine
Price: US $ 30000/Set
Trade Terms: FOB
Min Order: 1/Set
Pay Type: T/T
Prod Model: Q35
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size As Per Customer's Request: Color Can Be Green or Blue or White
Application: Gas Cylinder Processing
Certification: ISO9001

Product Description

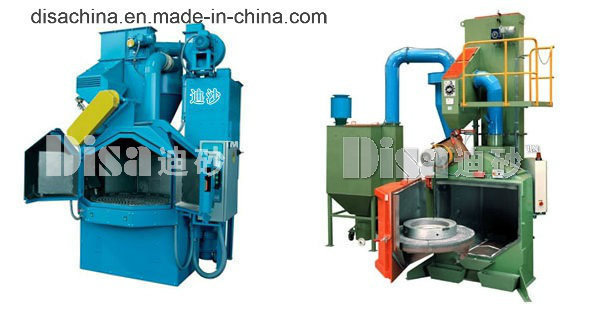

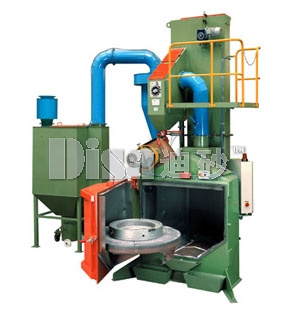

(Q35) In this type of machine, the pieces are placed on a rotary table where they receive the shot impact.This type  blasting machine is for the treatment of sensitive parts, components that only need to be blasted on one side, as well as complex, heavy or large parts that can not be processed in tumble belt blast machines for bulk load or spinner hanger machines.
The rotary table type shot blasting machines are designed in different capacities and productions. It also fit for cleaning and intensifying surface of steel structure and castings, as well as removing surface with thick steel and cleaning oxidized surface, apply for foundry industry, forging industry, machinery and steel industry.
As an example of specific application of this type of machine, it would be mentioned the continuous shot blast of pans, disc, mold, etc.
No.Model
Item
Q3512QF3512BQ3525
1Size of blasting chamber mm¢1350*560¢1350*860¢2654*560
2Size of work piecemm600*250*250600*250*250600*500*250
3Turn tableLoad capacitykg4004001000
Diameter mm120012002500
4Blast wheelAbrasive flow ratekg/min2002*1202*250
Power kw117.5*215*2
5Lifting amount of elevatort/h151530
6Separating amount of separatort/h151530
7Abrasive initial filling kg4003501500
8Ventilation capacityM3/h280028005200
9Outline dimensionmm1500*3450*37801900*1900*41654260*3647*5366
10Power (dust collector not included) kw17.318.735.2

Disa as shot blasting machine international leading supplier in China, has been established for 20 years, Disa known production shot blasting machine, since it sold in 1992 in China, the first such shot blasting machine, in just 20 years has developed rapidly, as of 2011 years on sale to the world more than 200 articles, good to use.

Disa offers you system solutions from a single source - beginning with a project idea to consulting, profitability analysis and individual engineering to a turnkey plant. With 17 years of collective experience, we have rebuilt over 1500 kinds of shot blasting machines. Through the years we expanded our engineering and manufacturing capabilities so that today we are able to take on design problems involving castings, forgings, stampings, steel mill products, fabricating, etc.

Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
