| Prod Model: |
4340 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Alloy Or Not: |
Is Alloy |
| Type: |
Alloy Steel Bar |
| Shape: |
Flat or Round |
| Cold Drawn: |
Black/Bright Surface |
| Deformation Temperature: |
Cold Forging |
| Molding Style: |
Forging |
| Molding Technics: |
Pressure Casting |
| Casting Method: |
Sand Casting |
Product Description

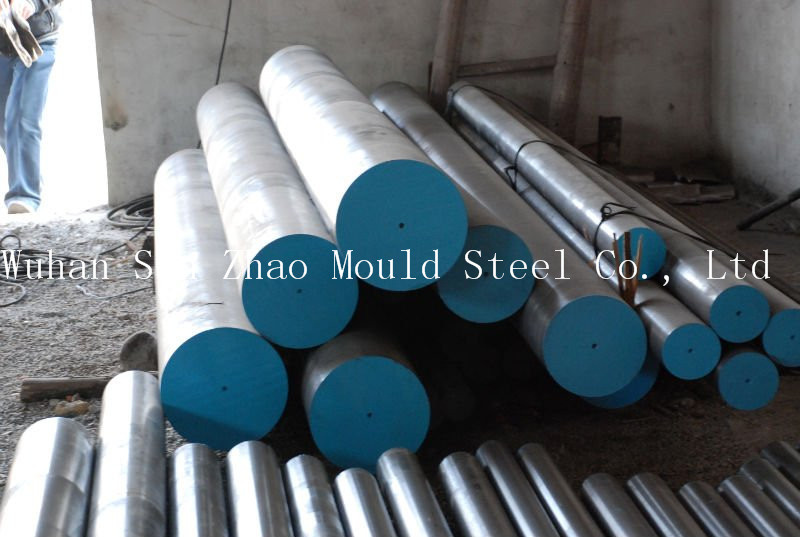

Round H13 D2 D3 O1 4340 4Cr13 die steel steel bat
1) SAE 4140/DIN 1.7225/42CrMo4
SAE 4340/DIN 1.6511/40CrNiMo
SAE 8620/DIN 1.6523/20CrNiMo
2) Chemical composition of alloy steel plate 4140:
C: 0.38~0.45 Si: ≤ 0.40 Mn: 0.60~0.90 S: ≤ 0.035 P: ≤ 0.035 Cr: 0.90~1.20 Ni: ≤ 0.030 Cu: ≤ 0.030 Mo: 0.15~0.30
Chemical composition of alloy steel plate 4340:
C: 0.38~0.43 Si: 0.15~0.35 Mn: 0.60~0.90 S: ≤ 0.040 P: ≤ 0.035 Cr: 0.60~0.90 Ni: 1.65~2.00 Cu: ≤ 0.025 Mo: 0.20~0.30
Chemical composition of alloy steel plate8620:
C: 0.18~0.23 Si: 0.15~0.35 Mn: 0.70~0.90 S: ≤ 0.035 P: ≤ 0.035 Cr: 0.40~0.60 Ni: 0.40~0.70 Cu: ≤ 0.030 Mo: 0.15~0.25
3. Process: EAF + LF + VD + Heat Treatment (optional)
4)Delivery condition: Hot-rolled, black surface
5. Technical Data of alloy steel plate 4140, 4340, 8620: According to the customer's requirement of Chemical Composition, Physical Properties and Mechanical Testing
7. Test: Ultrasonic test according to SEP 1921-84 3C/c
8. Material details will be as per agreed technical specifications
We are manufacturer, we can supply kinds of tool steel flat bars with the competitive price and high-quality service, . Welcome to contact us when your are free.
Wuhan San Zhao Mould Steel Co., Ltd., is located in Optical Valley International Enterprise Center, Wuhan East Lake Development Zone, is registered in Wuhan and has the legal personality. Our firm mainly deals with the domestic business and foreign trade of mould steel.
Company size:
Our company consists of three subsidiary companies: Daye Wei Feng Mining Technology Co., Ltd., Huangshi Sanli Forging Co., Ltd. And Huangshi Sanye Mould steel Co., Ltd. We possess some melting machines: MF furnaces, refining furnaces, vacuum degassing furnaces and electro slag furnaces. We also possess some steel processing devices: Hydraulic forging hammers and hydraulic forging machines. Our complementary production machines include continuous heating furnaces, bottom heating furnaces, chamber furnaces, annealing furnaces and finishing facilities. Processing machines include electric grinding wheel peeling machines, electric band saws, milling machines and lathes. We also have some other detecting machines for advanced chemical analysis and physical property analysis. The total assets are more than 120 million Yuan. Our firm can produce one hundred kinds of products, including cold work tool steel, hot work tool steel, plastic mould steel and alloy steel. The annual capacity is 30, 000 tons of mould steel, 20, 000 tons of forging materials and 10, 000 tons of formed forgings.
Product specifications:
Forged Round Bars: 50mm ~ 500mm (diameter)
Forged plates: 20~400mm x 50~1200mm
Formed forgings of shaft and disc types
Staff:
We have 520 people and more than 80 members with college diplomas or above. Their majors are melt, rolling processing, metallurgical analysis, heat treatment, mechanical appliances, finance and business management. 60% of them are senior engineers. The recruited staff members are from Daye Special Steel Co., Ltd. Which is China's Special Steel base. They work as leaders, operators and inspectors in different processes, including special steel melting, forging, heat treatment and finishing. Our firm forms a scientific structure of human resources. We work closely with universities in Wuhan on technical cooperation in areas of production, learning and research & development to enhance new product development capability and market competitiveness.
Objective: "based on the respect for people, importance of responsibility, scientific management and stable operation, develop our company into the first class steel enterprise with market competitiveness, optimized benefit and sustainable growth capability in China; Strive for the target of annual sales revenue of over 1 billion Yuan"
Operating philosophy: "operation with integrity, continuous improvement, good service, quality first, win-win solutions and joint development"
You are welcome to visit us on business.
