Product Description
Main components
1. Ladle turret of 50, 75 or 100 tons
2. Tundish car
3. Tundish
4. Crystallizer
5. Secondary cooling zone
6. Vibration table
7. Piping for water system
8. Pneumatic straightener
9. Hydraulic system
10. Dummy bar storing device
11. Tundish on-line baking device
12. Tail billet pinch roller
13. Transfer table
14. Flame cutting machine
15. Hydraulic shear
16. Billet delivery roller and cooling bed
17. Billet moving device
18. Tilting gear

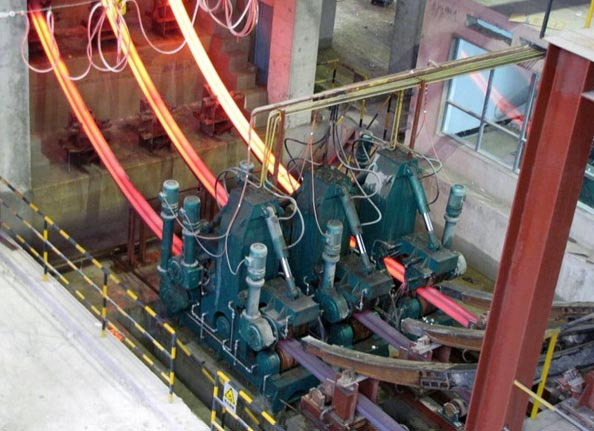

R8m Continuous Casting production line
Technology process features
1. The billet sizes that can be cast: Big square billets and rectangle billet of 150 x 150 mm2, 150 x 280 mm2, 150 x 320 mm2, 250 x 250 mm2 etc.
2. Steel quality to be cast: High quality silicon steel, alloy structural steel, carbon tool steel, spring steel, bearing steel, etc
3. Machine model: 3-strand fully arc billet caster
4. Radius of casting machine: 8 meters
5. Average casting speed: 2.2-2.8 m/min
6. Designed casting speed: 1.2-3.5m/min
7. Annual output: 600, 000 tons
8. Overflow percentage: ≤ 0.5%
9. Heats for continuous casting: ≥ 8 heats
10. Product quality: Up to the enterprise standard and up to the countries quality standard
Technical features
Ladle supporting method: Ladle turret (1800 clockwise and anticlockwise turning)
Tundish supporting method: 2 sets of tundishes cars that can be raised and lowered, semi-suspended type.
Cast flow control: Crystallizers liquid level check and automatic control
Vibration method: Adopting whole plate spring vibration table
Secondary cooling and casting billet guiding section: The guiding section is composed of supporting roller and side support roller; Secondary rinsing device. The rinsing water distribution system is automatically done by computer according to the steel quality, billet size, and casting speed.
Billet sending method: Rigid dummy bar downward loaded type, automatic billet sending and billet separating device, the dummy bar returning to storing position.
Straightening method: Continuous straightening with 5-roller by hydraulics, with 3-roller individual driving AC frequency inverter speed adjusting
Billet finishing: High efficiency flame cutting, adopting thermal metal detecting position to realize casting billets cutting of cut-to-length
Billet conveying method: Adopting billet moving device with reliable mechanical features and stable structure.
R6m Continuous Casting production line R6m
1. The billet size that can be cast: 120 x 120 mm2, 150 x 150 mm2, 160 x 160 mm2,
2. Steel quality to be cast: Q235, 20MnSi, low alloy steel,
3. Machine model: 4strand fully arc type square billet caster
4. Radius of casting machine: 6 meters
5. Average casting speed: 2.7 m/min
6. Max casting speed: 3.6m/min
7. Annual output: 600, 000 tons
8. Overflow percentage: ≤ 0.5%
9. Product quality: Up to the enterprise standard and up to the countries quality standard
Shijiazhuang Tieqi Heavy Industry Co., Ltd was Established in 1993.
At the very beginning of establishment, there were just 26 staff and workers in our company. with their great efforts, the company has been recognized by our customers from the Heavy Industry Association for our excellent design, quality, competitive price and satisfying after sale service.
At present, we have more than 400 workers, including 10 Senior Engineers and more than 30 Technical personnel, to ensure quality, design, installation and after-sales service.
Our head office and factory staff with the Engineers and Technical designers expertese of the group companies including 8 subsidiary companies. Our products have been sold to more than 300 factories all over the world.
Our Business Covers:
-Steel Making and Processing Line Manufacturing
-Electrification Control
-Industry Motor Manufacturing
-Metal Moulding and Casting
-Industry Environmental Protection Equipments
Mainstay Products:
-Tieqi™ Automatic Walking Beam Cooling Bed
-Tieqi™ Rebar Quenching (TMT) Device
-Hot Rolling Mill Stands
-Flying Shear and Cold shear
-Steel Wire Rod / Bar / Section Production Line
-Continuous Casting And Rolling Production Line
-Industry High/Low Voltage Switchgear.
