Rubber Lined Slurry Pump Bhr

Name: Rubber Lined Slurry Pump Bhr
Brand: china-castingforging.com
SKU: 725319375
Availability: InStock
Rating: 4.3 (116 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1set
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Shijiazhuang Boda Industrial Pump Co., Ltd.

Showroom Product Company Profile

Prod Model:	BHR
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Natural Rubber R55 R26
Working Pressure:	High Pressure Pump
Position Of Pump Shaft:	Horizontal Pump
Impeller Number:	Single-Stage Pump
Influent Type Of Impeller:	Single Suction Pump

Product Description

Description:

BH(R) series centrifugal slurry pumps and spare parts can fully interchage with world famous brand. These pumps are of heavy-duty construction, designed for continuous pumping of highly abrasive and corrosive slurries. They feature a wide choice of replaceable abrasion resistant metal or moulded elastomer casting liners and impellers, which are all interchangeable within a common costing assembly.

Typical Application:

Minerals Flotation Processing

Electric Factory Coal Preparation

Coal Washing

Chemical Medium Processing

Effluent Handling

Sand and Gravel Handling

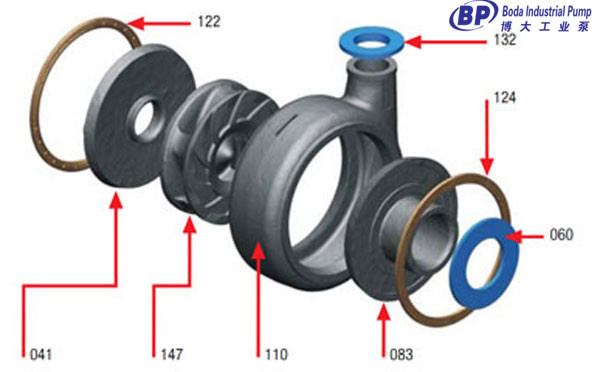

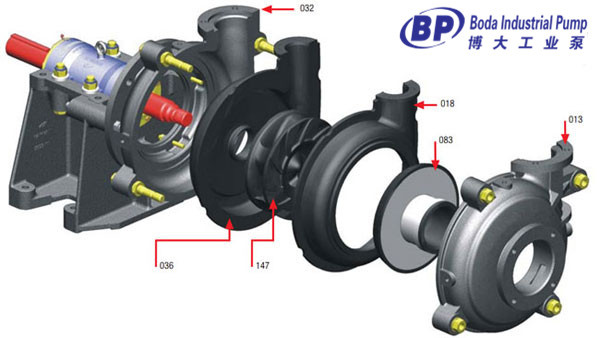

Structure Drawing:
* Dimensionally Interchangeable with:

Pump Model	Allowable Max. Power(kw)	Clear Water Performance
		capacity Q		Head H(m)	speed n(r/min)	Max.eff. η%	NPSH (m)	Impeller Dia(mm)
		m3/h	l/s	Head H(m)	speed n(r/min)	Max.eff. η%	NPSH (m)	Impeller Dia(mm)
1.5/1B-BHR	15	10.8-25.2	3-7	7-52	1400-3400	35
2/1.5B-BHR	15	25.2-54	7-15	5.5-41	1000-2600	50	2.5-5.5	178
3/2C-BHR	30	36-75.4	10-21	13-39	1300-2100		2-4	213
4/3C-BHR	30	79.2-180	22-50	5-34.5	800-1800	59	3-5	245
4/3D-BHR	60	79.2-180	22-50	5-34.5	800-1800	59	3-5	245
6/4D-BHR	60	144-324	40-90	12-45	800-1350	65	3-5	365
6/4E-BHR	120	144-324	40-90	12-45	800-1350	65	3-5	365
8/6E-BHR	120	324-720	90-200	7-49	400-1000	65	5-10	510
8/6R-BHR	300	324-720	90-200	7-49	400-1000	65	5-10	510
10/8ST-BHR	560	540-1188	150-330	12-50	400-750	75	4-12
12/10ST-BHR	560	720-1620	200-450	7-45	300-650	80	2.5-7.5
14/12ST-BHR	560	1152-2520	320-700	13-14	300-500	79	3-8
16/14TU-BHR	1200	1368-3060	380-850	11-63	250-550	79	4-10	1067

Shijiazhuang Boda Industrial Pump Co., Ltd is a corporation working for international pump market in P. R. C. It mainly operates pump & pump driven equipments, pump parts & resistance wearing castings, others hydraulic machinery, accessories etc. The products contain slurry pumps, API 610 petrol-oil & chemical pumps, waters pumps which have tens of series, more than one hundred varieties, thousands of models. They are widely used in mining, metallurgy, coal mining, electric power, petroleum, chemical, water supply and drainage industry and so on.
Boda is specialized in the manufacture and sales of slurry pump and pump parts. The slurry pumps are designed for the harshest abrasive and corrosive pumping environments. They can be made of high chrome, a wide variety of elastomers or the latest in ceramic materials for longer service life and higher efficiencies. Also they are parts interchangeable with one of the most recognized brands worldwide in the slurry pump business.
It is our eternal pursue to do our best to meet the customer's requirements. We are always maintaining the operation principle "First class quality, Advanced technique And Best service". We receive the reputation of several firms in the world for high quality, fair price, in time delivery. Our company has a company tenet ' Moral Team, Good Quality Product, Brand Service' and a principle 'Quality is No. 1, Customers are Paramountcy' in order to provide clients an excellent product and satisfied service.
