| Prod Model: |

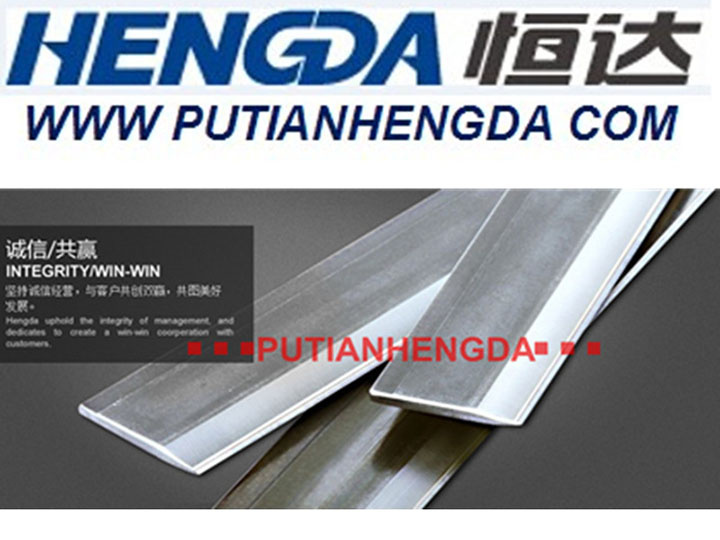

TE Sharpened steel blade/rule for cutting dies |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Monthly Production Capacity: |
6 Million Meters |
| Average Lead Time: |
15 Days |
| Minimum Order Quantity: |
5000meters |
| Package: |
Carton Box(Different Packing Available on Request) |
| Usage: |
for Making Dies Cut of Shoes, Bags, etc. |
| Hardness Of Knife-Point: |
520-550hv/52HRC |
| Hardness Of Knife-Blade: |
35-37HRC/38-40HRC |
| Thickness/Height: |
2-4mm/19-50mm |
| Customized Size And OEM: |
Available |
| Quality Control System: |
100% Inspection Before Shipment |
| Material: |
Steel |
| Application: |
Clicker Die Rule for Making Shoes, Clothes, Bags |
Product Description
*Series:BE, BD, AE, AD, TE, TE-g & TE-w, SE
*TE series:Profile dimension ( Height x Thickness, mm ):
32*2.0
32*2.5
32*3.0
40*2.5
40*3.0
Other dimension and profile available on request
*TE SERIES:APPLICABLE TO CUT BELLOW MATERIALS:
Autocar control board and panels
Knitted cotton
Sound insulation materials within autocars and machineries
Cardboard
Cork
Reinforced fiberglass ski
Fiberglass mesh
Glass wool made aluminum foil and fabric
Hard fiberboard, fiberboard
Plywood(<4mm)
Multilayer plastic foil
Plush toy, weaving gloves, textile lining
Silk(multilayer, >1mm)
*Product Highlight:
Combination of perfect bendability & excellent hardness
High-frequency treated cutting edge ensures itself with extra long duration life
Sharp and clean finish of cutting edge accomplished by fine grinding process
A mirror like finish of back edge
*Usage:
Cutting die steel is specially designed & developed for Die Cutting, and it can be formed into different shapes according to user's pattern designs.
Industries producing products involve the following materials require die cutting for speed and uniformity:Plywood, Insole, Sole Material, Textiles, Leather goods, Lining fabrics, insulating material, Plush, Upholstery fabrics, mats, Upper leather, Cardboard/Boxes, Rubbers, Gaskets etc.
*Advantages:
We are factory!
Leader in this industry earning great prestige among customers home and abroad since 1995
Self-innovated brands authorized patent:Lingying(Cutting die steel and Bi-metal band saw blade),
Daju(Bi-metal band saw blade), Hengda(Bi-metal composite steel tape)
On time delivery is guarranteed by over 6000000m/month production capacity
Strong R&D Team with over 150 technical masters and over 20 Senior Engineers.
High Quality products backed by Advanced production facilities and technology imported from German and Sweden
In-house lab testing for quality assurance
Our management team, manufacturing skills and quality control system as per ISO 9001 requirements
Customized dimension & profile, hardness & bendability available on requests
OEM available on requests
*Product strengths:
Hengda offers a variety of spec of Cutting Die product with high bendability and hardness made through precisely machining molding and multiple heat treatment.According to customer requirements, Extra-Hard type cutter body hardness can be upgraded to 40HRC with high toughness.Hengda's Cutting Die series products, whose technology and quality has a leading position in the domestic industry, have been widely used in shoe leather, leather goods, clothing, toys and other industries across China, and also enjoy such an excellent market reputation that the series products are exported to Italy, India, Vietnam, Thailand, Kampuchea, Chile, Argentina, Brazil, Tunisia, Mexico, Turkey, Pakistan, Egypt, Karachi etc countries and regions.
*Company strengths:
Putian Hengda Machinery and Electricity Industry Co., Ltd, was established in 1995 with a registered capital of 50 million.The company occupies an area of more than 66000 square meters, and over 300 employees.Hengda focuses on manufacturing self-developed patent products, including cutting die steel rule, bimetallic composite tape and bi-metal band saw blade.And we gained National Patent.At Hengda, we believe that developing and manufacturing of high quality, industry-leading products is always a top priority.We are the leader in cutting die steel rule, bi-metal band saw blade.
*Transportation advantages:
Located in Southeastern China, Putian City is extremely convenient in transportation, 10.4km to Railway Station, 165km to Xiamen Port and 51km to Quanzhou Port, 117km to Fuzhou International Airport, 100 KM to Jinjiang Airport and 163km to Xiamen International Airport.
*Packing
Coil---Water protection plastic bag---Carton box---Wooden frame+wooden pallet+steel band
*Standard coil length/weight:20-90m/coil, 21.56-56.25kg/coil
Body hardness
|
35-37HRC |
38-40HRC |
Cutting edge hardness
|
520-550HV & 52HRC |
520-550HV & 52HRC |
Thickness
|
Bendability |
Bendability |
2.0mm
|
30degree |
45degree |
2.5mm
|
45 |
60 |
2.7mm
|
45 |
60 |
3.0mm
|
60 |
75 |
3.5mm
|
75 |
90 |
4.0mm
|
90 |
110 |
Coil Packing Specification
|
|
Profile dimention (mm)
|
Standard coil length (m) |
30*2.0
|
90 |
32*2.0
|
90 |
19*2.0
|
80 |
20*2.0
|
80 |
32*2.5
|
80 |
19*2.5
|
70 |
19*3.0
|
70 |
32*2.7
|
70 |
36*2.5
|
70 |
40*2.5
|
70 |
30*3.0
|
65 |
32*3.0
|
65 |
36*3.0
|
65 |
50*2.5
|
60 |
43*2.5
|
60 |
40*3.0
|
60 |
36*3.5
|
50 |
43*3.5
|
50 |
50*3.0
|
50 |
32*4.0
|
20 |
36*4.0
|
20 |
40*4.0
|
20 |
50*4.0
|
20 |
Putian Hengda Machinery & Electricity Industry Co., Ltd was established in 1995 with RMB50million registered capital, which occupies a land area of over 66000m2 and half coved with buildings, and is recruited with above 300 employees, including over 220 highly-trained & motivated skilled technical workers, 30 experienced professional senior engineers. Hengda had grown to be the biggest rule die steel production base and the leader in this industry in China since its foundation.
As the top brand and Leader of Professional Rule Die Steel in China, not only we provide rule die steel but also the very-well-known first grade Bi-metal Band Saw Blade and Bi-metal Composite Steel Strip.
Hengda has been devoting itself for almost 20 years in R&D and production of Rule die steel and various industrial saw blades, and currently withholding self-owned brands, respectively, LINGYING, HENGDA and DAJU. In persistent pursuit of independent innovation since 1995, Hengda has acquired a number of National patents through utmost long-term efforts, for example, the National Patent no.:96101578 for Hengda's self-innovated rule die steel granted on 1998.
Hengda possesses over 30 sets of the most advanced R&D equipments and Examine machines, and is also equipped with the most up-to-date latest high precision professional manufacturing lines and machineries imported from German and Sweden.
Our philosophy is: Quality Oriented, Honesty & Integrity, and Unremitting Perseverance, always in spirit of fulfilling its obligation in highest degree, we devotes to meet the needs of our honorable customers with best quality steel. Hengda only adopts Top quality raw materials imported from Austria Bohler and Germany Bilstein and partial mainland top grade steel for its products, which highly guarantees the quality in all respects from the very beginning to end products.
Hengda always holds sufficient materials and with over 6000m2 Professional Stock Warehouse of ready-goods and over 6million meter per month production capacity of rule die steel and 300000meter per month for saw blades, all these strongly and absolutely guarantee the delivery in shortest time to satisfy our customers both in good times and in bad times.
Hengda controls the whole cycle of production inside its factory, from raw material to final products, integrated itself with design, develop, production, marketing and after-service, one-stop total solution for our customers, it is our top priorities to offer the best products meeting ever changing markets trends and demanding requests from our customers, and Hengda always remember that the existence of itself in the established market for long highly contributes to the support from our sincere Customers. In return, Hengda will continuously try the utmost to offer the best possible prices, quality and service to obtain your kind satisfaction.
