| Prod Model: |
S460/SS1.4 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Good Durabiity: |
Cheap Price |
| Material: |
Stainless Steel |
| Processing Type: |
Rolling Type |
Product Description

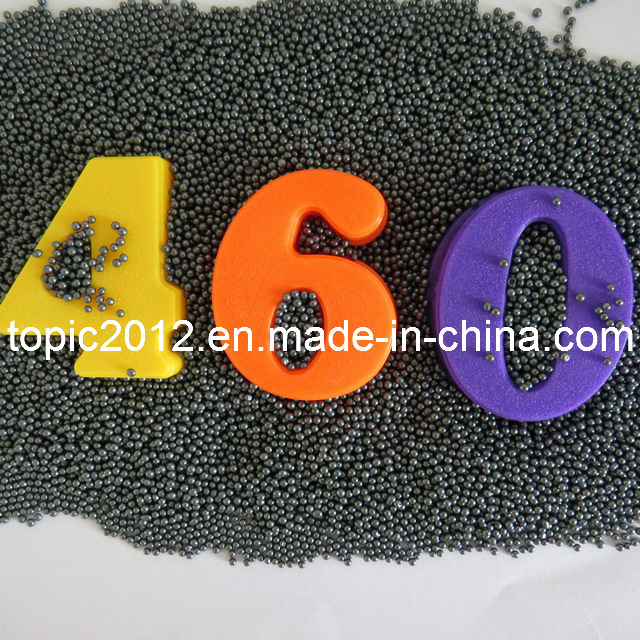

Cast steel shot/grit from us with high strength, strong durability and competitive price.
We apply advanced equipments of induction furnace to produce cast steel shot / cast steel grit. After centrifugal atomizer, second quenching, tempering, spiralizing, packing etc process getting cast steel shot and cast steel grit.
Detail processing of cast steel shot as follows:
Raw material( scrap &alloys)---melting in induction furnace---after atomizing, drying, scalper screening, spiralizing, screening, the second quenching---fine screening--packing
Detail processing of cast steel grit as follows:
Raw material( scrap &alloys)---melting in induction furnace---after atomizing, drying, scalper screening, spiralizing, screening, the second quenching---crusher, scalper screening--fine screening--packing
|
Product |
Cast Steel Shot |
Cast Steel Grit (GP) |
Cast Steel Grit (GL) |
Cast Steel Grit (GH) |
Steel Cut Wire Shot |
|
Chemical Composition |
C |
0.7-1.2% |
0.45-0.70% |
|
Mn |
0.35-1.2% |
0.30-1.30% |
|
Si |
≥0.40% |
0.15-0.35% |
|
S |
≤0.05% |
≤0.05% |
|
P |
≤0.05% |
≤0.04% |
|
Hardness |
Normal type: 40-50HRC |
42-52HRC |
53-60HRC |
60-64HRC |
1.0mm:42-53HRC |
|
Special type 1: 52-56HRC |
|
|
|
1.5mm:41-45HRC |
|
Special type 2: 56-60HRC |
|
|
|
|
|
Hardness Deviation |
±3.0HRC Max |
|
Tensile Intensity |
/ |
1300-2200Mpa |
|
Durability |
2000-2800Times |
3300-3600Times |
|
Microstructure |
Tempered Martensite or Sorbite |
Deformed Pearlite |
|
Density |
7.4g/cm3 |
7.6g/cm3 |
7.8g/cm3 |
|
Bulk Density |
4.4g/cm3 |
4.2g/cm3 |
4.5g/cm3 |
